ZEISS Nano Prime Lenses

True Cinema. For All.

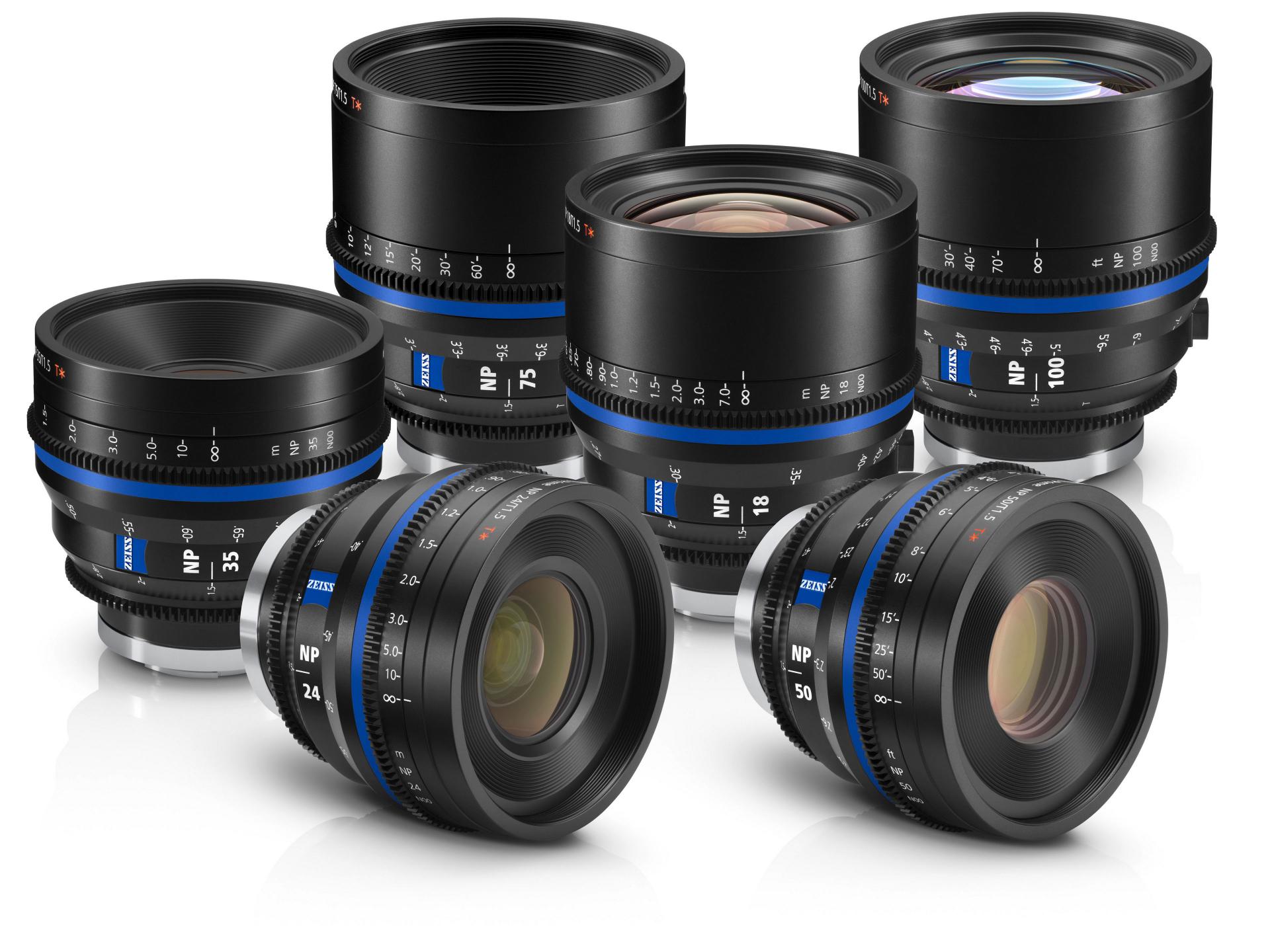

  • Six professional ZEISS cinema lenses with focal lengths labeled on the barrels are arranged in two rows on a white background.
    Six professional ZEISS cinema lenses with focal lengths labeled on the barrels are arranged in two rows on a white background.

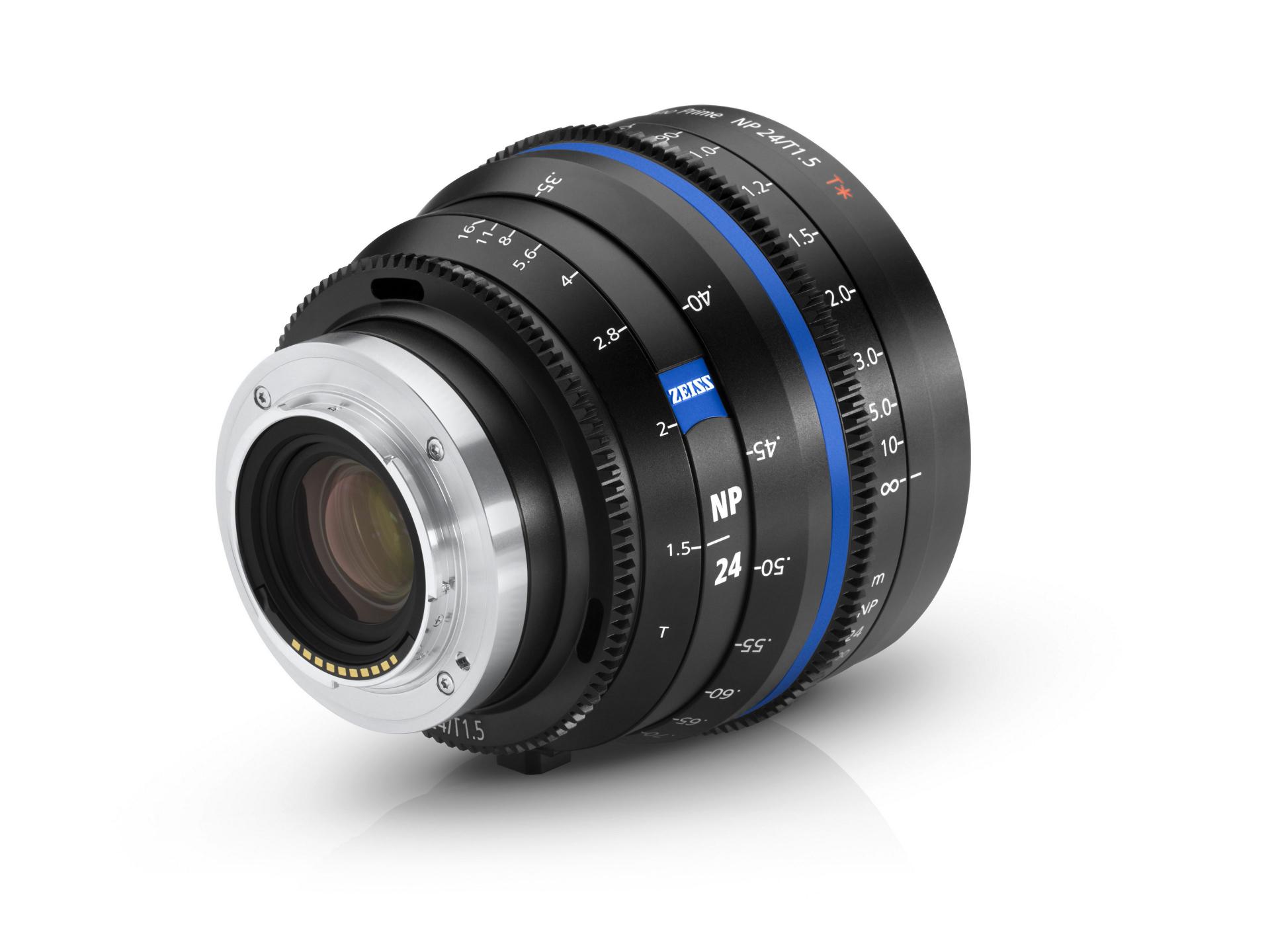

  • Professional ZEISS camera lens with detailed focusing and aperture markings, featuring a 24mm focal length and robust, high-precision design.
    Professional ZEISS camera lens with detailed focusing and aperture markings, featuring a 24mm focal length and robust, high-precision design.
  • A ZEISS Supreme Prime 35mm cinema lens with focus and aperture markings, featuring a black body with blue accent ring and ZEISS branding.
    A ZEISS Supreme Prime 35mm cinema lens with focus and aperture markings, featuring a black body with blue accent ring and ZEISS branding.
  • Professional camera lens with ZEISS branding, featuring detailed focus and aperture markings on a sleek black metal body.
    Professional camera lens with ZEISS branding, featuring detailed focus and aperture markings on a sleek black metal body.

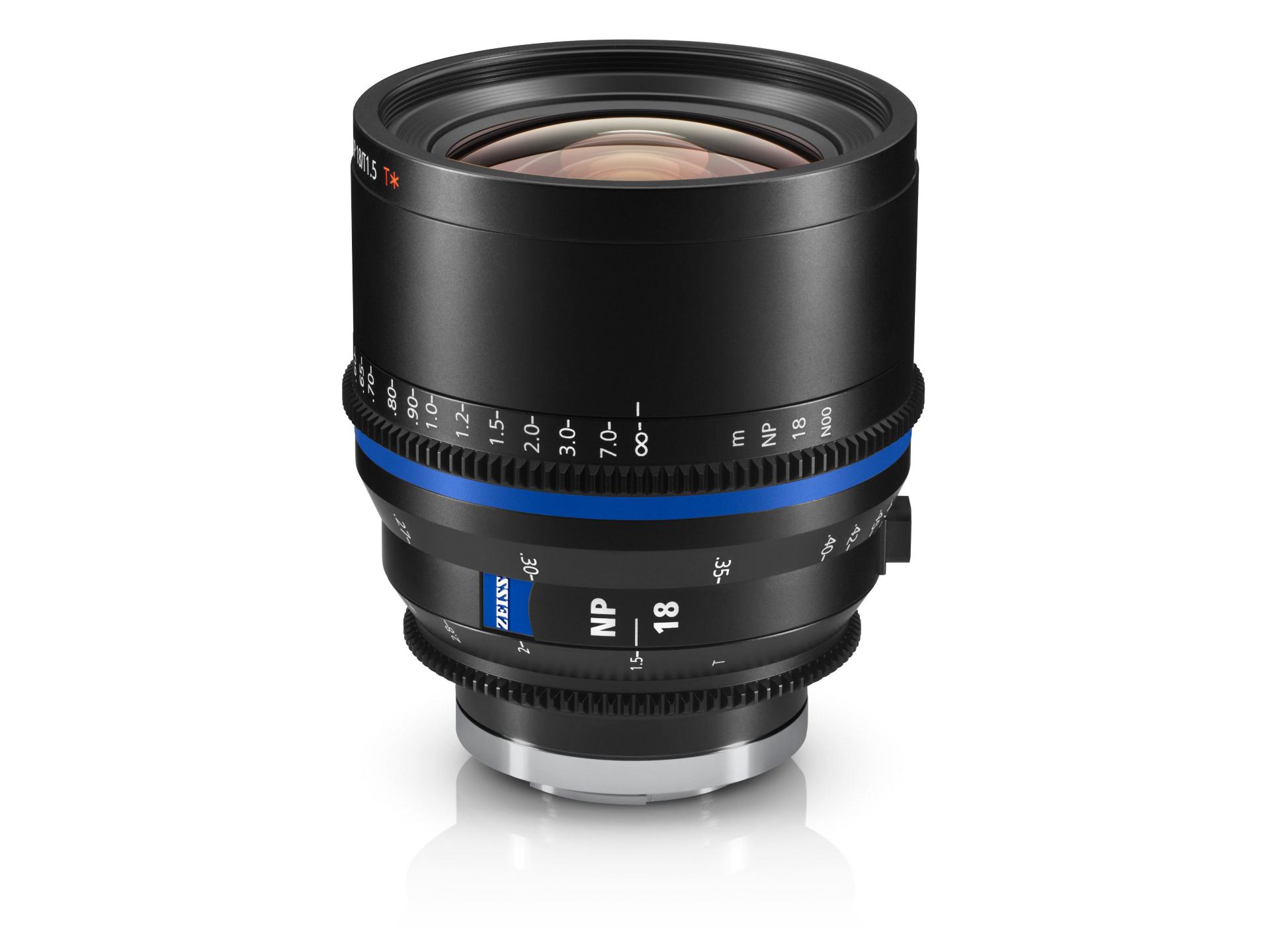

  • Close-up view of a ZEISS Nano Prime NP 18/T1.5 camera lens showcasing its front glass element and detailed labeling.
    Close-up view of a ZEISS Nano Prime NP 18/T1.5 camera lens showcasing its front glass element and detailed labeling.

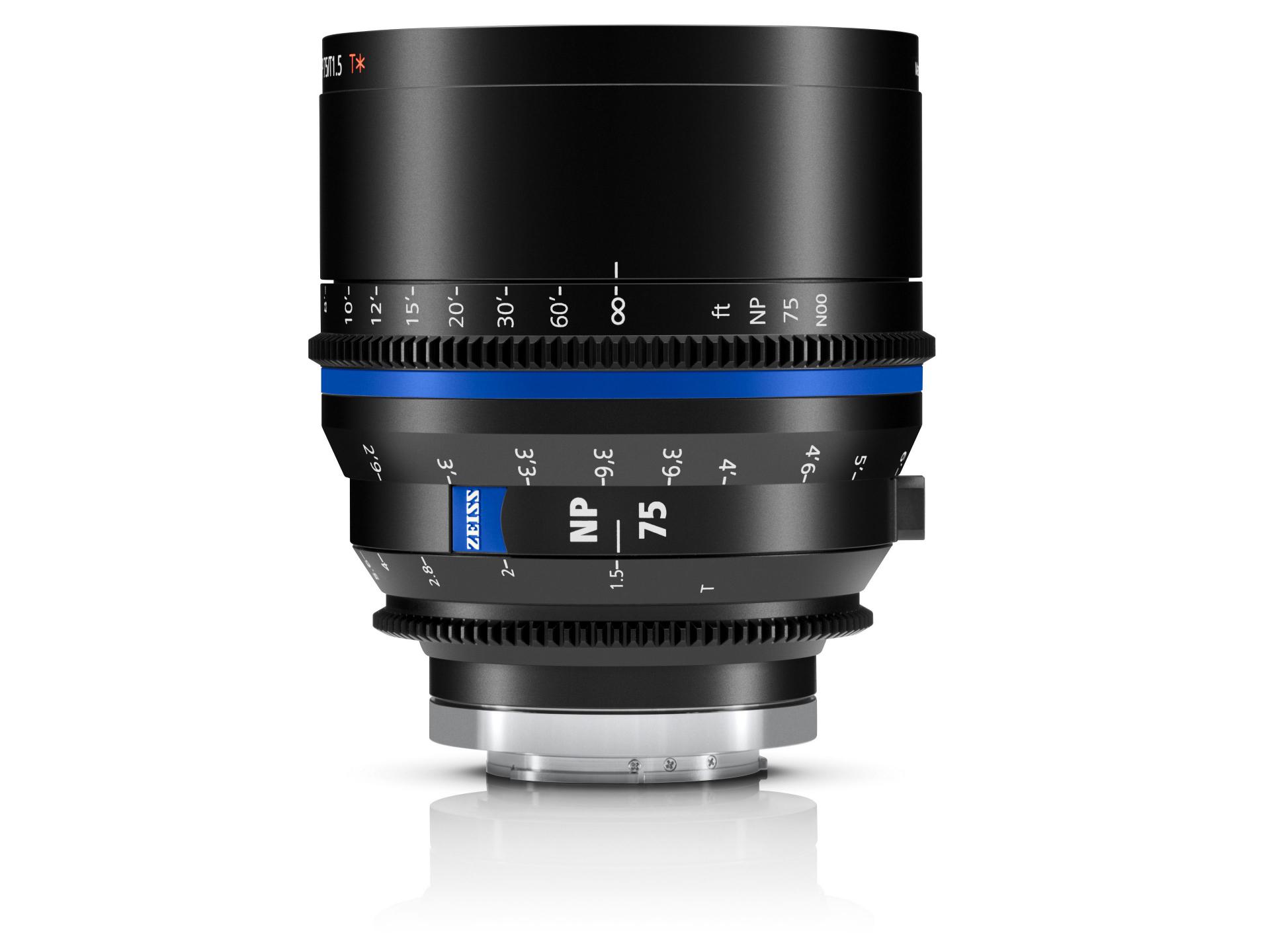

  • Professional ZEISS cinema lens with 75mm focal length, featuring detailed focus and aperture markings, blue accent ring, and robust black metal housing.
    Professional ZEISS cinema lens with 75mm focal length, featuring detailed focus and aperture markings, blue accent ring, and robust black metal housing.

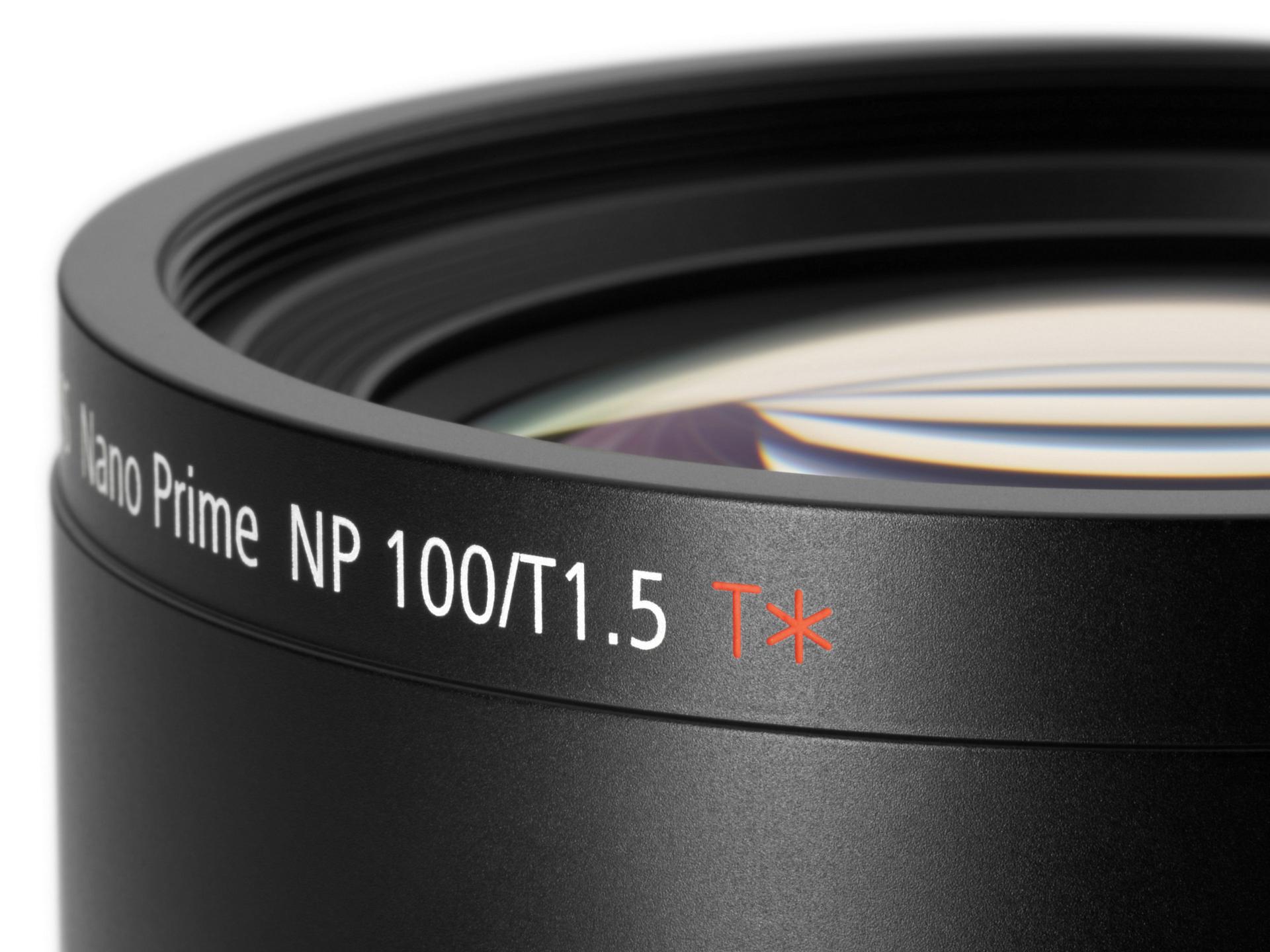

  • Close-up of a ZEISS Nano Prime NP 100/T1.5 lens showing the engraved model details and T* coating mark on the lens barrel.
    Close-up of a ZEISS Nano Prime NP 100/T1.5 lens showing the engraved model details and T* coating mark on the lens barrel.

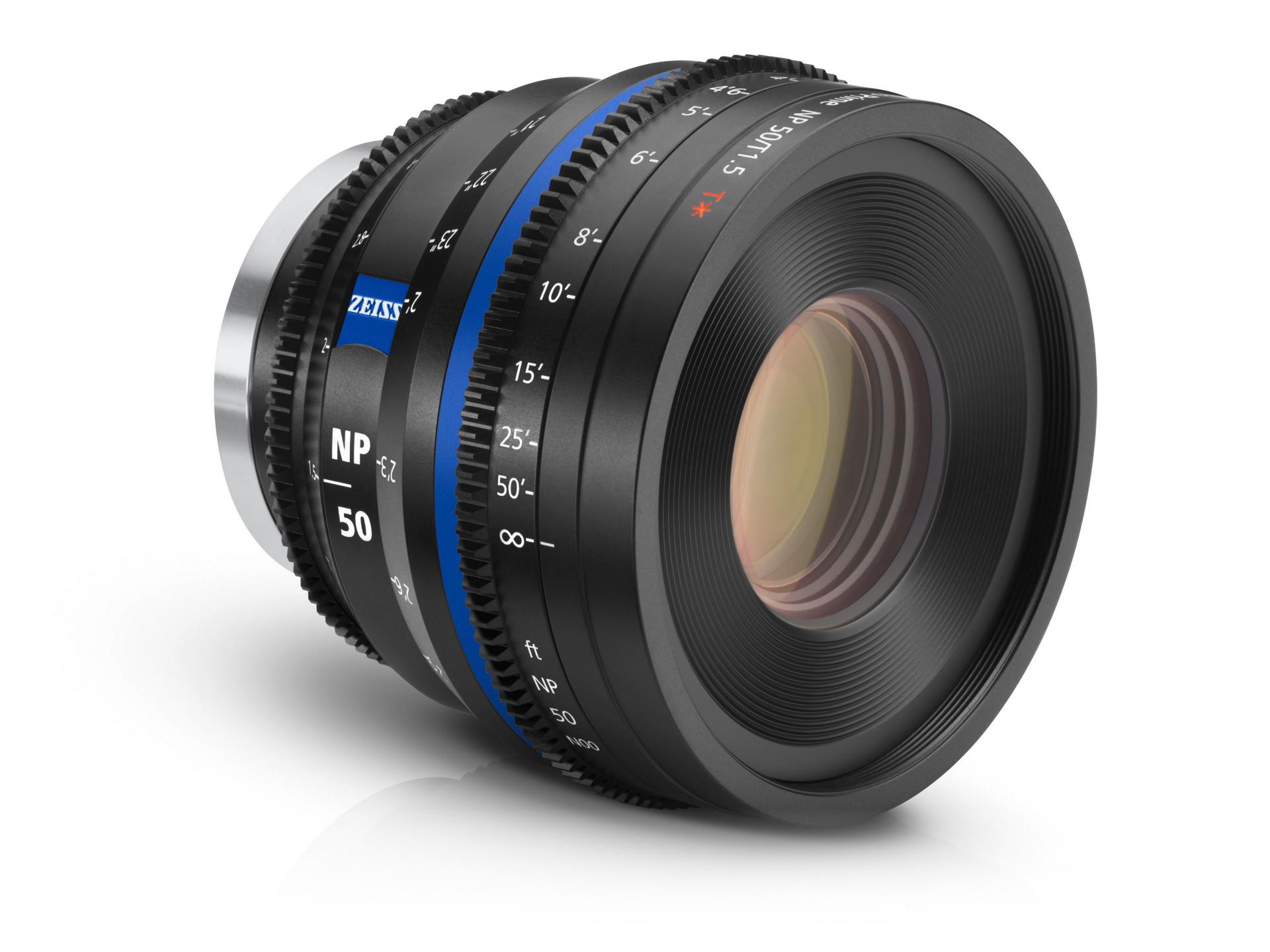

  • Professional camera lens featuring the ZEISS logo, marked as NP 50 with detailed focus and aperture scales.
    Professional camera lens featuring the ZEISS logo, marked as NP 50 with detailed focus and aperture scales.

ZEISS Nano Primes are cinema lenses designed for modern full frame mirrorless cameras — initially available for Sony E-mount. Lenses for everyone looking for highest performance and cinematic look in a small package. The six focal lengths all feature a consistent high speed of T1.5, come with a small and robust real cine lens housing with professional cine ergonomics and have an interchangeable mount.

Nano Primes are lenses for all cinematographers. No matter if up-and-coming or seasoned DP. For all budgets. No matter if small or big. For all projects. No matter if for commercials, documentaries or music videos, for series, independent or features films. Lenses that check all the boxes when it comes to look, ergonomics, size and weight or lens data workflow. Lenses that you can afford. Lenses that won‘t let you down.​

​ZEISS Nano Primes are the go-to lenses for everyday: True Cinema. For All.​

  • Beyond Borders

    Director and cinematographer Venkat Mahadev Gangadhari tells the short story of an aesthete who crosses beyond borders to experience India's vibrant embrace. From sun-kissed landscapes to a magical tapestry of white-capped meadows, offering a breathtaking contrast to the country's kaleidoscope of beauty and tradition, great visuals were captured through ZEISS Nano Prime lenses.

  • Honouring

    In "Honouring", a short film directed and shot by Vincent Tartar, UCO with ZEISS Nano Primes, a young woman delves back into a childhood memory during a winter walk in the forest: as a little girl, she rediscovers her grandfather's woodturning workshop, and the sensations and treasures it holds...

  • Emerging Perspectives

    In her short documentary "Emerging Perspectives", cinematographer Valentine Lequet, UCO, portrays musicians, painters and other artists in East London, whose work and words she feels connected to, whilst putting them in a welcoming limelight, with the support of sociologist Alexis Clot.

  • Product Introduction Film

    Join Clinton Harn from C.R. Kennedy as he travels to Tokyo, Japan to learn more about the making of the new Nano Primes in a discussion with ZEISS' very own Arato Ogura and then continues on to visit their manufacturing site.

  • Man wearing glasses and a headset, focused on equipment, with a blurred artistic background.

    We shot the entire film with Nanos. They were that good. We have a scene against a mirror wall background, and I noticed that we got almost a Petzval effect with the bokeh in the background. They had a swirly spiral shape, which I love. I can never get enough of that. And then there were other interesting flares. We shot 97% of the film wide open at T1.5, which is a sweet spot that I thought looked great, stunning. That to me is the benchmark. I don’t want to use a lens that I can’t use wide open. I need that option.

    Jon Joffin ASC
  • A person wearing winter clothing is operating a professional video camera with a ZEISS branded eyepiece in an outdoor setting.

    The Nano Primes are a breath of fresh air. Their versatile look and build aesthetics is nothing short of the ZEISS legacy. A neat little package that matches incredibly well with high-end glass, yet by themselves, they are simply gorgeous, reliable and inspiring for filmmakers serious about investing in high quality cine lenses.

    Clinton Harn
  • A woman is closely examining a professional camera rig equipped with multiple components and ZEISS lenses.

    The Nano Primes felt exactly like the little sisters of the Supremes. The skin tones are exceptional, and when the scene is backlit, when it’s coming on the face, it’s very beautiful. Also, the lenses are really lightweight. That was the first thing I noticed. I shoot documentaries and a lot of commercials with a documentary style, and very light equipment. I think I can now go everywhere with these lenses, for sure, even for beauty commercials, because the skin tones are so beautiful. I was very happy because it’s super hard to find small lenses with such good qualities.

    Valentine Lequet UCO
  • A man wearing a yellow scarf closely observes a monitor on a professional film set with ZEISS camera equipment.

    The first thing I noticed was the blur. There was this incredible separation between sharp and out of focus areas. Their fall off isolates subjects in a unique way. Theses lenses lean towards storytelling, there’s mise-en-scene in the image. Their sharpness is pretty, yet very precise. There's a kind of softness, a roundness in the image that doesn't make it an aggressive lens at all.

    Vincent Tartar UCO
  • A bearded man in a dark sweater is looking thoughtfully to the side in front of a softly blurred, artistic background, captured with ZEISS-quality clarity.

    One of the things that’s interesting about the NPs is the design. For a long time, manufacturers were trying so hard to make lenses perfect and eliminate veiling glare, and they took away all the flares, and lenses got boring. And now, ZEISS came out with the Nanos - which bring back some of those flares, which we used. They were flaring beautifully, but they were also sharp enough to render details.

    Brendan Steacy ASC, CSC

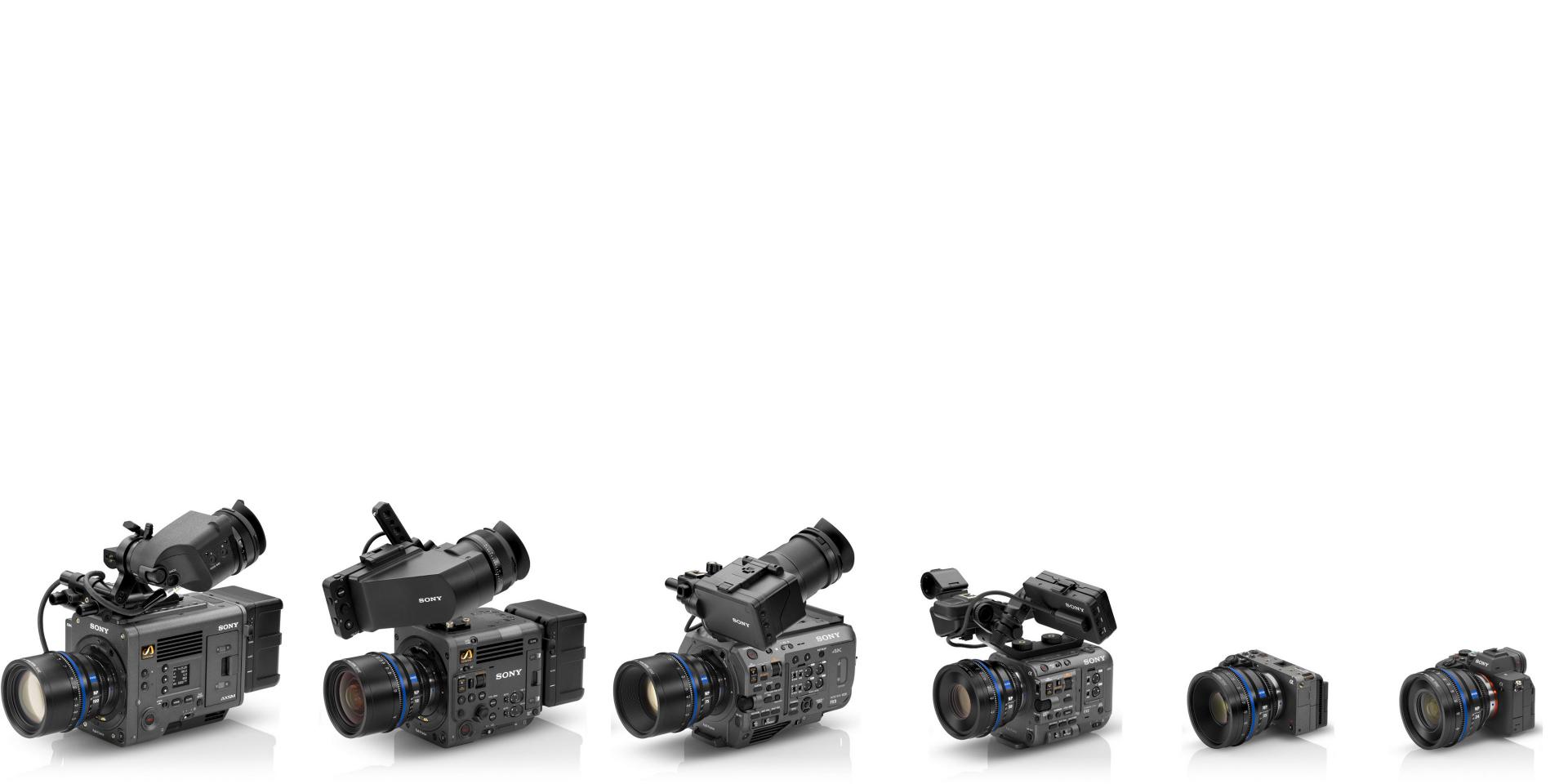

A lineup of six professional video cameras of varying sizes, all equipped with ZEISS lenses, arranged from largest to smallest on a white background.

Comprehensive focal range

With a focal range containing 18mm, 24mm, 35mm, 50mm, 75mm, 100mm, Nano Primes ensure all-encompassing angle of views from wide-angle to tele, making them the go-to choice for diverse cinematic needs.

Woman wearing oversized round ZEISS eyewear with tinted lenses, standing in front of a softly lit, bokeh-filled background.

Covering cinematic full frame

Full frame sensors amplify visual depth and character. Nano Primes cover these bigger sensors, empowering all cinematographers, no matter if up-and-coming or seasoned, to craft images rich in volume and personality.

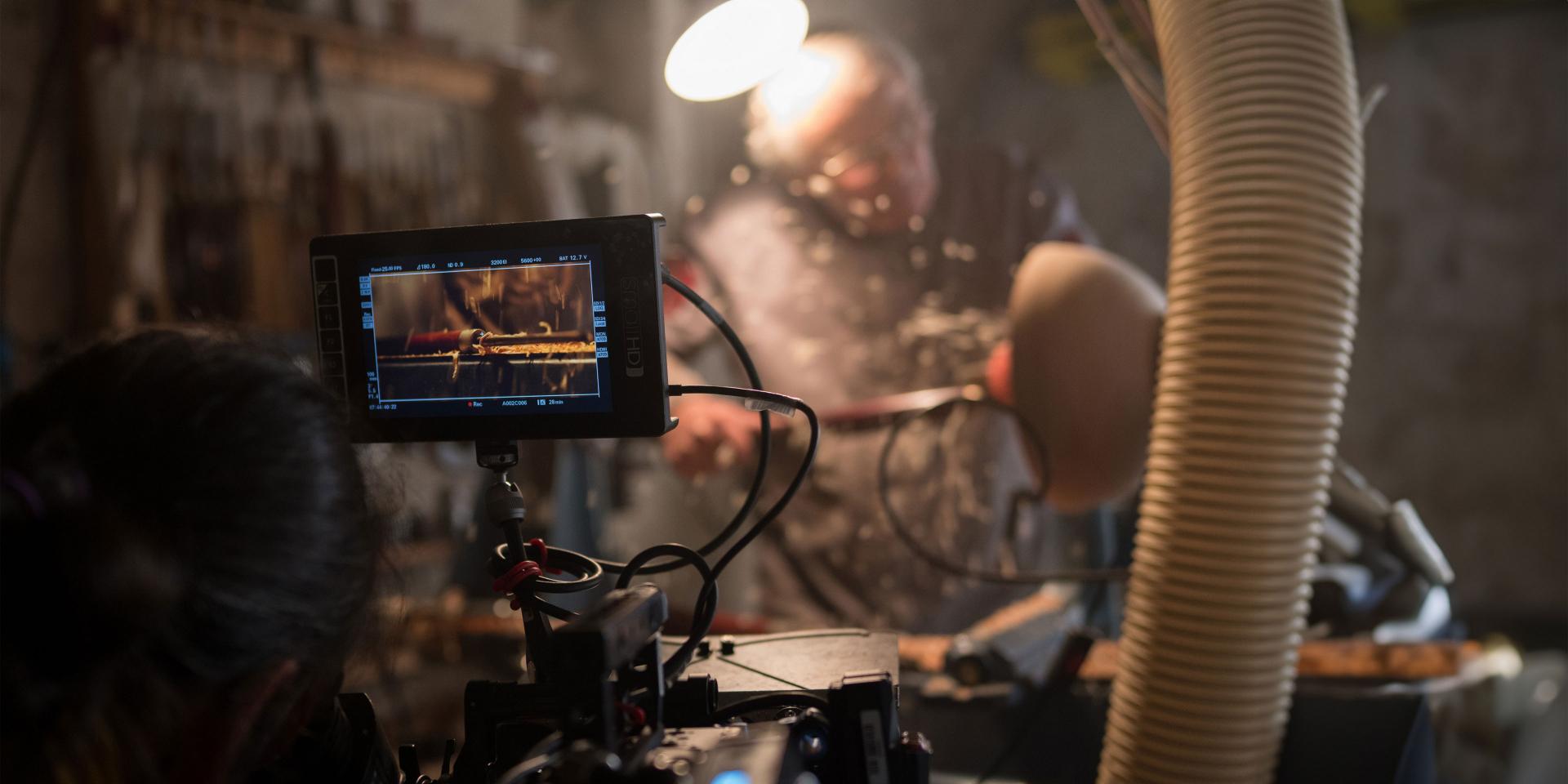

A camera setup with a monitor displaying a close-up of a craftsman woodworking in a dimly lit workshop, captured using ZEISS lenses.

Cinematic look in every shot

The Nano Primes' high speed combined with their close focus capability delivers captivating shallow depth-of-field, even with wide-angle shots. The maximum aperture of T1.5 and the rounded 12-blade iris produce an elegant bokeh, enabling the creation of true cinematic images. Offering a versatile and gentle sharpness akin to Supreme Primes, they're ideal for B-Cam and C-Cam or as a budget-friendly alternative.

Cinematographer holding a professional camera rig equipped with a ZEISS lens outdoors.

Full cine ergonomics in a small package

Nano Primes excel in precision and durability. Featuring a compact design with a 95 mm front diameter and an 86 mm screw-in filter thread, they seamlessly integrate with gimbals and drones. The consistent position of focus and iris rings streamlines lens changes while offering easy-to-read calibrated scales, a smooth 280° focus rotation, and a 90° iris ring rotation for precise control.

A film crew captures a scene at night featuring a woman in winter clothing, illuminated by streetlights and light snowfall, using a professional camera setup with ZEISS lenses.

Tested for harsh conditions

Certified for extreme conditions Certified for extreme conditions - cold, rain, and more - Nano Primes undergo rigorous testing, ensuring unmatched durability in the toughest filming environments. Nano Primes are the go-to lenses for everyday.

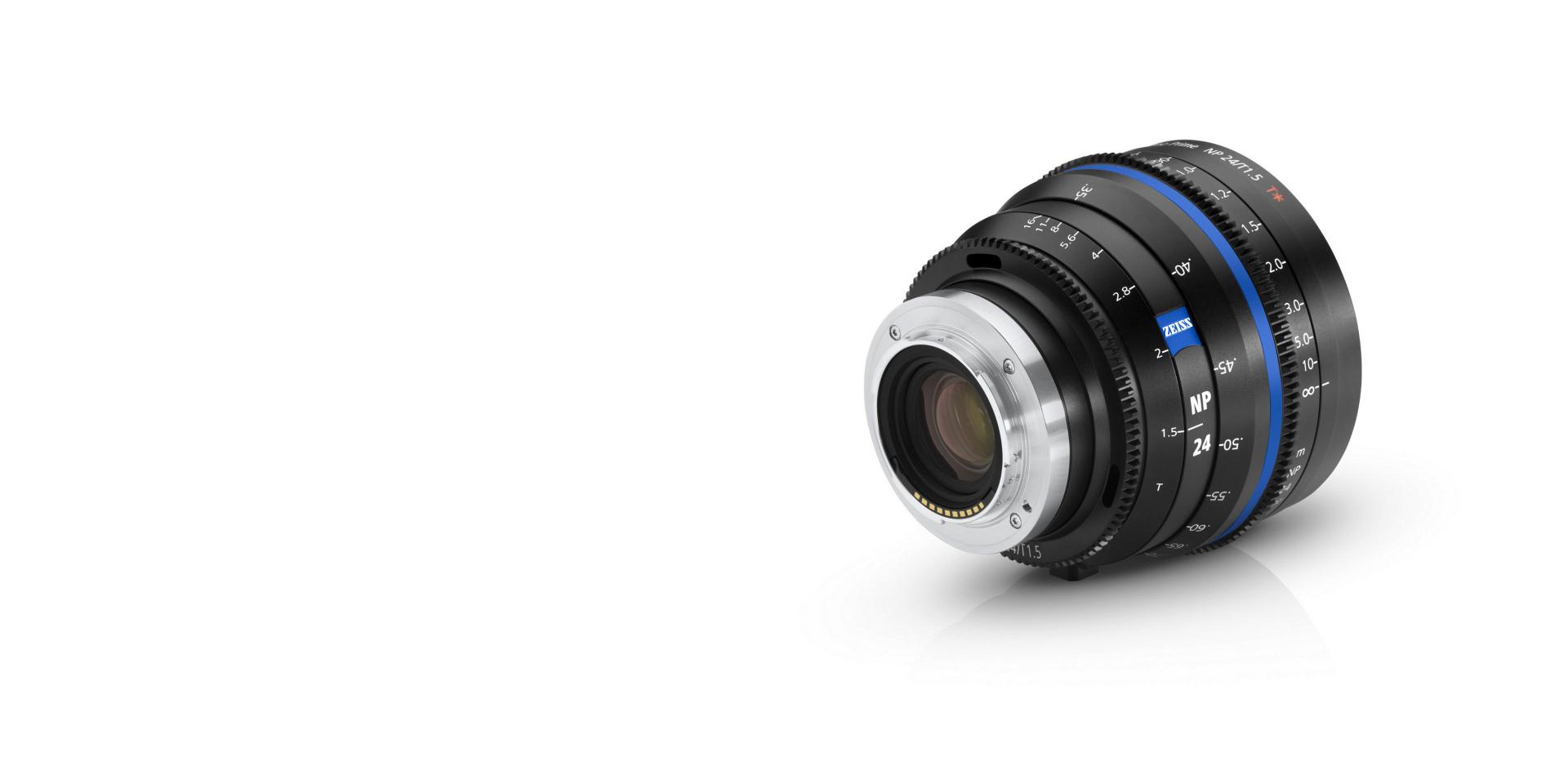

Professional cine lens with ZEISS branding featuring precise focus and aperture markings, displayed on a white background.

Interchangeable mount

The Nano Primes are ready for the easy exchange of additional mounts thanks to the proven ZEISS IMS (Interchangeable Mount System). With a user-adjustable back focus via shims, the lenses ensure precise scales even with entry-level cameras for which mount mechanics normally have higher tolerances.

Glowing 3D text reading "craft" is embedded in a futuristic, blue-lit geometric surface.

Electronic interface for real-time lens data

Thanks to the integrated electronic interface on the mount, the Nano Primes transmit real-time metadata such as focal length, focus distance and aperture to the camera. Further lens data for distortion and vignetting is available in the ZEISS CinCraft ecosystem and thus for post-production (CinCraft Mapper) as well as in the recently introduced CinCraft Scenario camera tracking system.

A technician wearing a lab coat and gloves works with precision tools under focused lighting at a ZEISS workstation.

Precision manufacturing & worldwide service

ZEISS Nano Prime lenses are assembled by hand and engraved with individually calibrated scales. Serviceability is a top priority starting in the initial stages of the development process. ZEISS has built up a global service network in the recent years with authorized service stations offering service according to factory standards in the US, Europe and Asia.

Technical Data

ZEISS Nano Prime Lenses
Aperture
Close Focus1
Length2
Front diameter
Screw-in filter
Weight
Angle of focus scale
Horizontal angle of view3

Nano Prime
18 mm T1.5

T1.5 to T16

0.25 m | 9.8"

112 mm | 4.4"

95 mm | 3.7"

M86 x 1

1.19 kg | 2.62 lbs

280°

90.3°

Nano Prime
24 mm T1.5

T1.5 to T16

0.35 m | 13.8"

89 mm | 3.5"

95 mm | 3.7"

M86 x 1

0.87 kg | 1.93 lbs

280°

74.2°

Nano Prime
35 mm T1.5

T1.5 to T16

0.45 m | 17.7"

89 mm | 3.5"

95 mm | 3.7"

M86 x 1

0. 87 kg | 1.92 lbs

280°

53.8°

Nano Prime
50 mm T1.5

T1.5 to T16

0.50 m | 19.7"

89 mm | 3.5"

95 mm | 3.7"

M86 x 1

0. 92 kg | 2.04 lbs

280°

40.4°

Nano Prime
75 mm T1.5

T1.5 to T16

0.75 m | 29.5"

112 mm | 4.4"

95 mm | 3.7"

M86 x 1

1.13 kg | 2.48 lbs

280°

27.7°

Nano Prime
100 mm T1.5

T1.5 to T16

1.00 m | 39.4"

112 mm | 4.4"

95 mm | 3.7"

M86 x 1

1.26 kg | 2.77 lbs

280°

20.7°

Remarks:
1) Minimum marked distance, measured from the image plane
2) Front to E-mount flange
3) Horizont angle of view for a full frame camera (aspect ratio 1:1.5, dimensions 36 mm x 24 mm / 1.42“ x 0.94“)
