Additive Manufacturing: Changing the Production Landscape

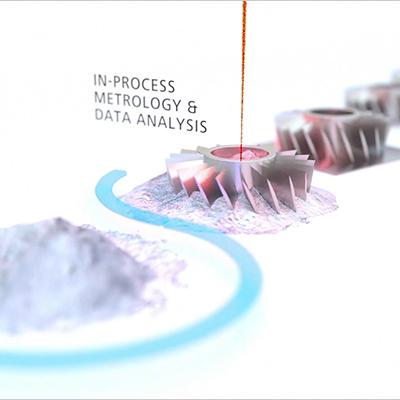

Explore this Inconel Lattice, produced by additive manufacturing and scanned non-destructively in 3D with ZEISS X-ray Microscopy

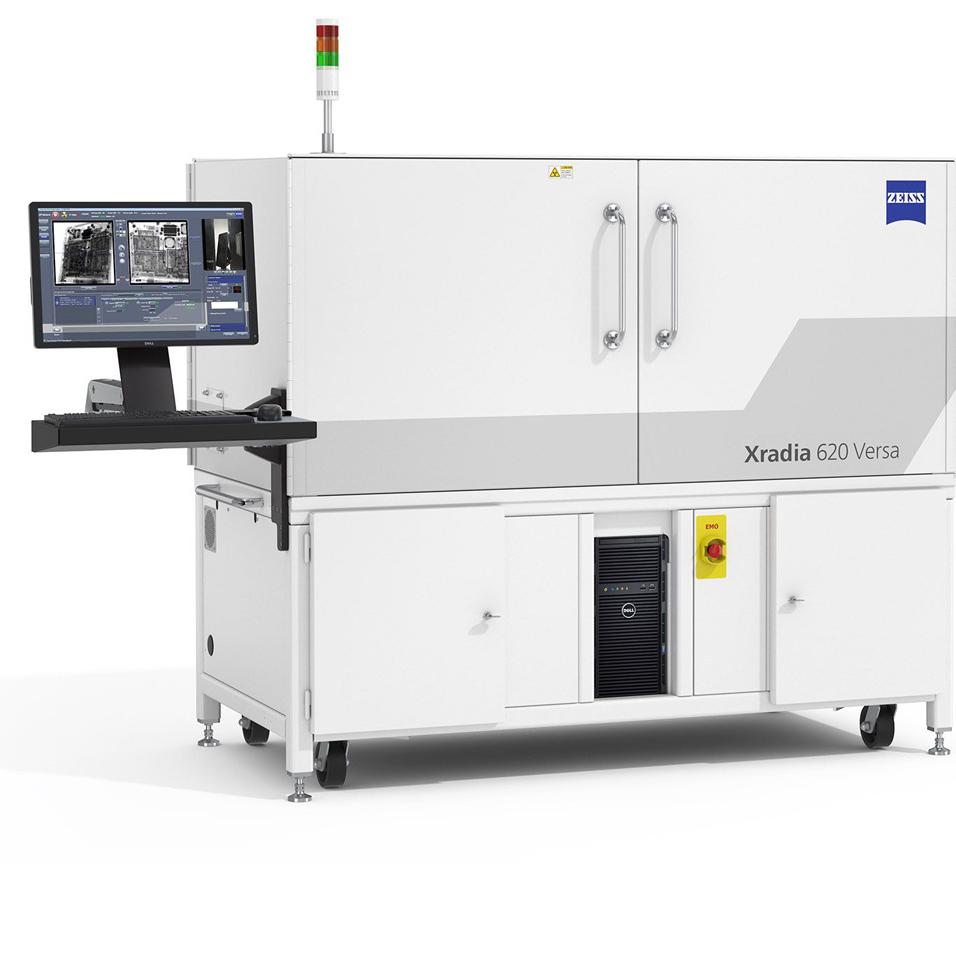

As mentioned in the above video, this dataset is a 3D printed Lattice of Inconel high temperature nickel-based superalloy. The sample was scanned non-destructively in 3D using X-ray Microscopy with the ZEISS Xradia Versa. The Scout & Zoom workflow was used to capture data across length scales - from the whole sample overview to the highest resolution scan where it is possible to visualise minute details, such as satellite particles.
3D deep-dive into the sample with X-ray Microscopy
Sample courtesy of Kavan Hazeli, Mechanical and Aerospace Engineering, The University of Alabama, Huntsville.

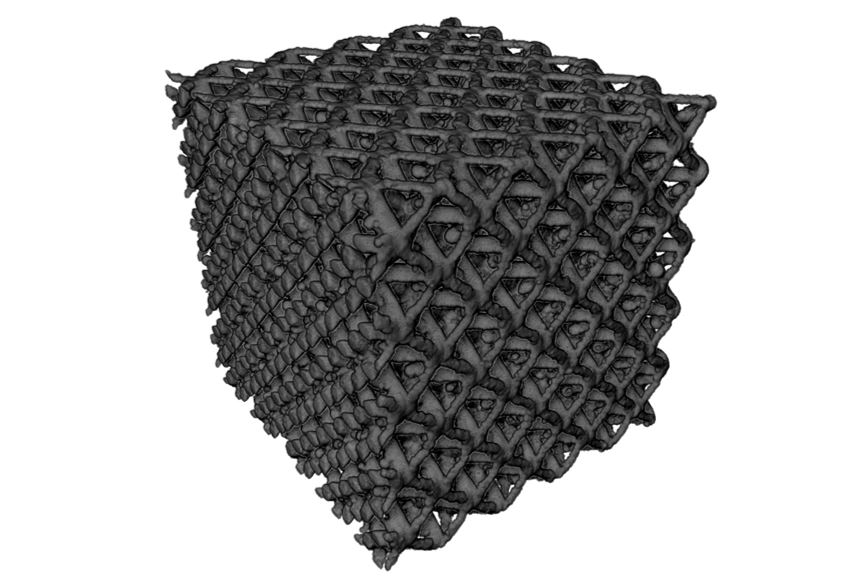

Figure 1 shows the sample overview, scanned with the 0.4x objective. The whole sample is visible with relatively low resolution and voxel size (3D pixel) of 8 microns. At these resolutions only the largest partially fused particles and surface textures are visible.Lorem ipsum dolor sit amet, consetetur sadipscing elitr, sed diam nonumy eirmod tempor invidunt ut labore et dolore magna aliquyam erat, sed diam voluptua. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit amet.

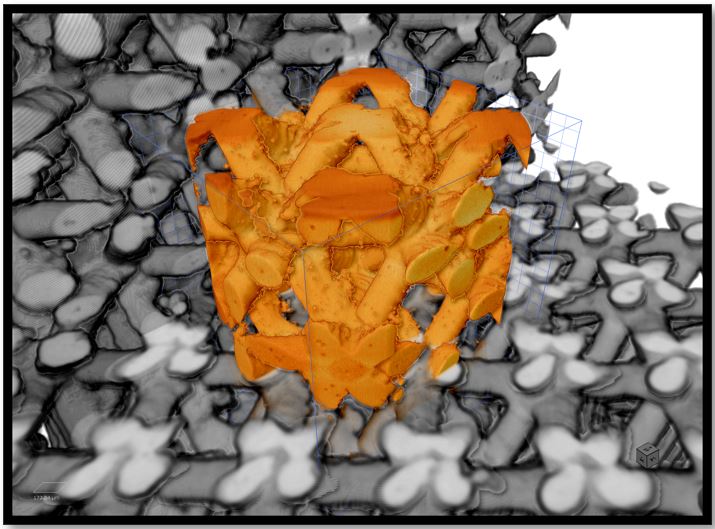

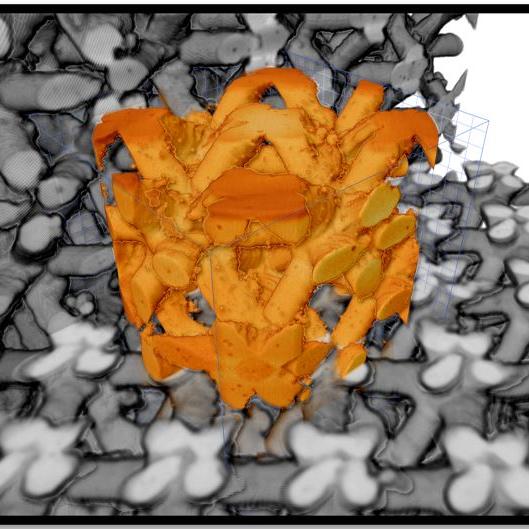

In Figure 2, a higher resolution scan of the lattice is seen correlated to the overview scan. The 4x objective of the Xradia Versa has been used for the smaller dataset, giving a higher resolution image at the expense of field of view.Lorem ipsum dolor sit amet, consetetur sadipscing elitr, sed diam nonumy eirmod tempor invidunt ut labore et dolore magna aliquyam erat, sed diam voluptua. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit amet.

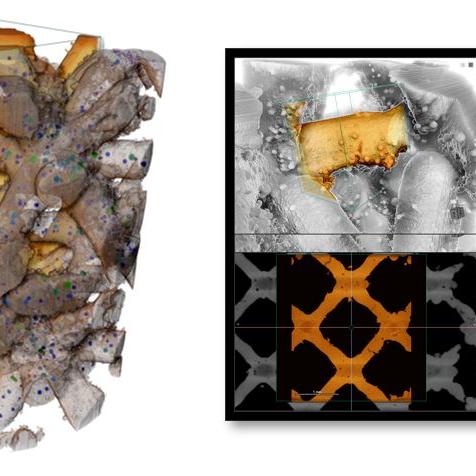

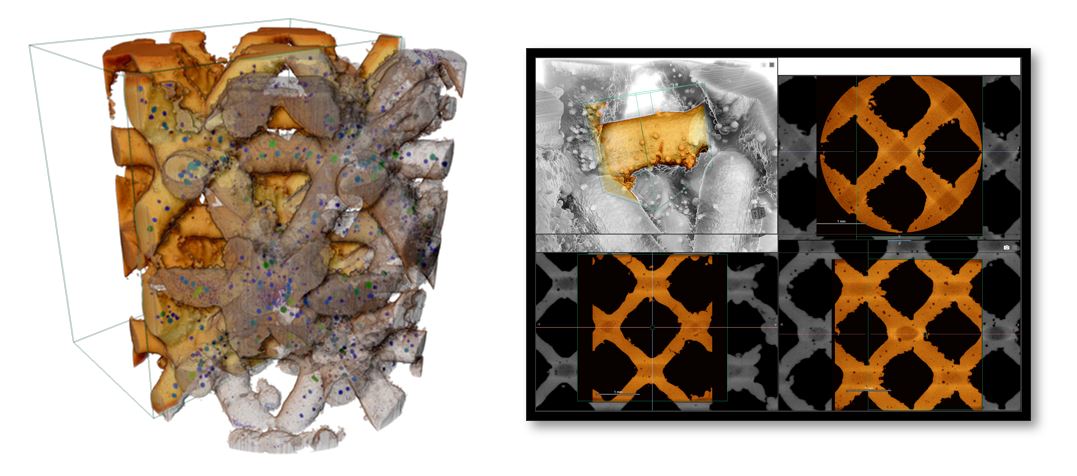

Finally, Figures 3 and 4 show the highest resolution scan, captured with a voxel size of 3.5 microns, making the smaller satellite particles and surface structures more clearly visible. This higher detail allows a more accurate quantification of the satellite particles, as seen in Figure 3. The higher resolution scan also shows more definition in the internal porosity of the lattice, shown clearly in Figure 4.Lorem ipsum dolor sit amet, consetetur sadipscing elitr, sed diam nonumy eirmod tempor invidunt ut labore et dolore magna aliquyam erat, sed diam voluptua. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit amet.
