ZEISS Precision Shooting

ZEISS Pro-Series MAX-DUTY Tripod Kits

Built for speed and stability.

In precision rifle competition, it comes down to the final score and time of completion to determine the winner. There are no excuses! Knowing this, ZEISS introduces the Pro-Series Tripod Kit – MAX-DUTY model. It offers massive 44 mm diameter, 10-layer carbon fiber legs, coupled with an exclusive and highly innovative single-point leg adjustment system for fast deployment and stowing of the three-section leg(s). This saves approximately 7-15 seconds of valuable set-up time for each respective stage of the competition.

Carbon fiber tripod with adjustable legs and a fluid pan head, designed for professional camera support, shown on a white background.
Carbon fiber tripod with adjustable legs and a fluid pan head, designed for professional camera support, shown on a white background.

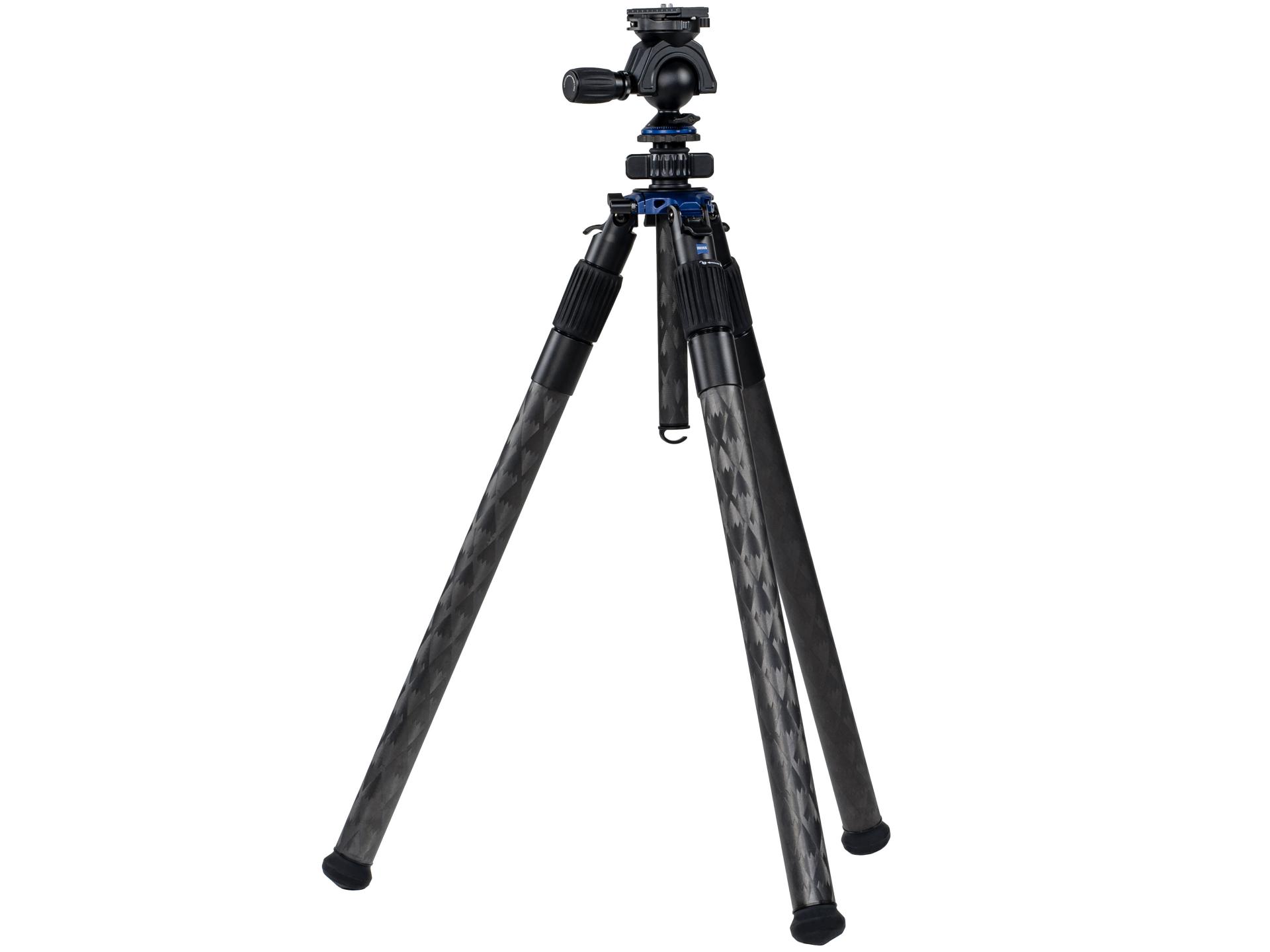

MAX-DUTY V

The MAX-DUTY V includes Ballhead V-60 (Versatile), having 115 degrees of adjustment. This provides a greater amount of tilt angle adjustments over multiple compound directions.

Carbon fiber tripod with adjustable legs and a fluid pan head, designed for ZEISS optical equipment.
Carbon fiber tripod with adjustable legs and a fluid pan head, designed for ZEISS optical equipment.

MAX-DUTY L

The MAX-DUTY L comes with Ballhead L-55 (Low Profile) allowing adjustments up to 90 degrees. The lower profile of the head provides more overall stability. It is 3 cm | 0.8 inches shorter at full length than the V model, and weighs 0.2 kg | 0.5 lbs less.

Introduction Video

ZEISS Pro-Series Tripod Kit - MAX-DUTY for Precision Rifle Competition

In this video, our competitors dive into the features and benefits of the Pro-Series Tripod Kit - MAX-DUTY, designed for unmatched stability and versatility in precision rifle shooting. This advanced competition-ready tripod comes equipped with a highly versatile ballhead, a removable center column, and essential accessories – all bundled together for a seamless purchase experience.

A man is using ZEISS optics mounted on a tripod while aiming outdoors under a clear blue sky.

Exceptional Stability

  • Optimized 44 mm carbon-fiber leg diameter (36/40/44 mm)
  • Large, thread-in rubber feet for stay-in-place footing
  • Multi-angle leg positions consisting of 24, 55, and 85 degrees
  • Multiple adjustments for hassle-free stability
Person adjusting the head of a professional tripod setup on grass, with visible blue ZEISS components.

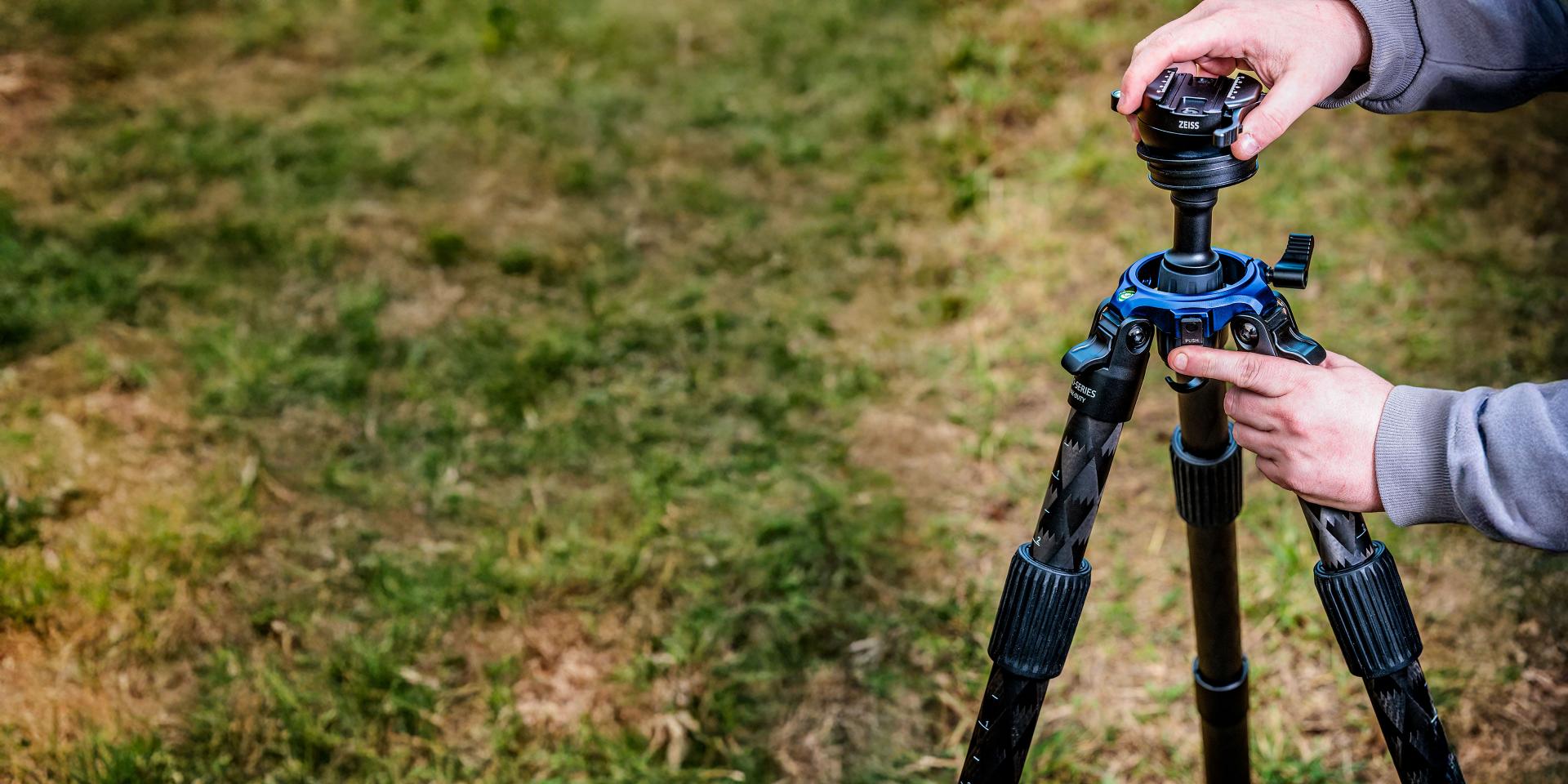

Fast & Easy Setup

  • Inverted 3-section leg design for ultimate compactness
  • Single-point leg adjustments with extended Twist-Locks
  • Modular, open apex system for maximum versatility
  • Removable through-the-center column for easy height adjustments
  • Easy-press leg adjustment mechanism
A man lies prone in a grassy field aiming a rifle equipped with a ZEISS scope, with a forested landscape in the background.

Robust Design

  • Machined aluminum frame and joints
  • Black, anodized finish
  • 10-layer, matrix-pattern, heavy-duty carbon fiber legs
  • Laboratory and field tested via thousands of cycles and various extreme environmental conditions

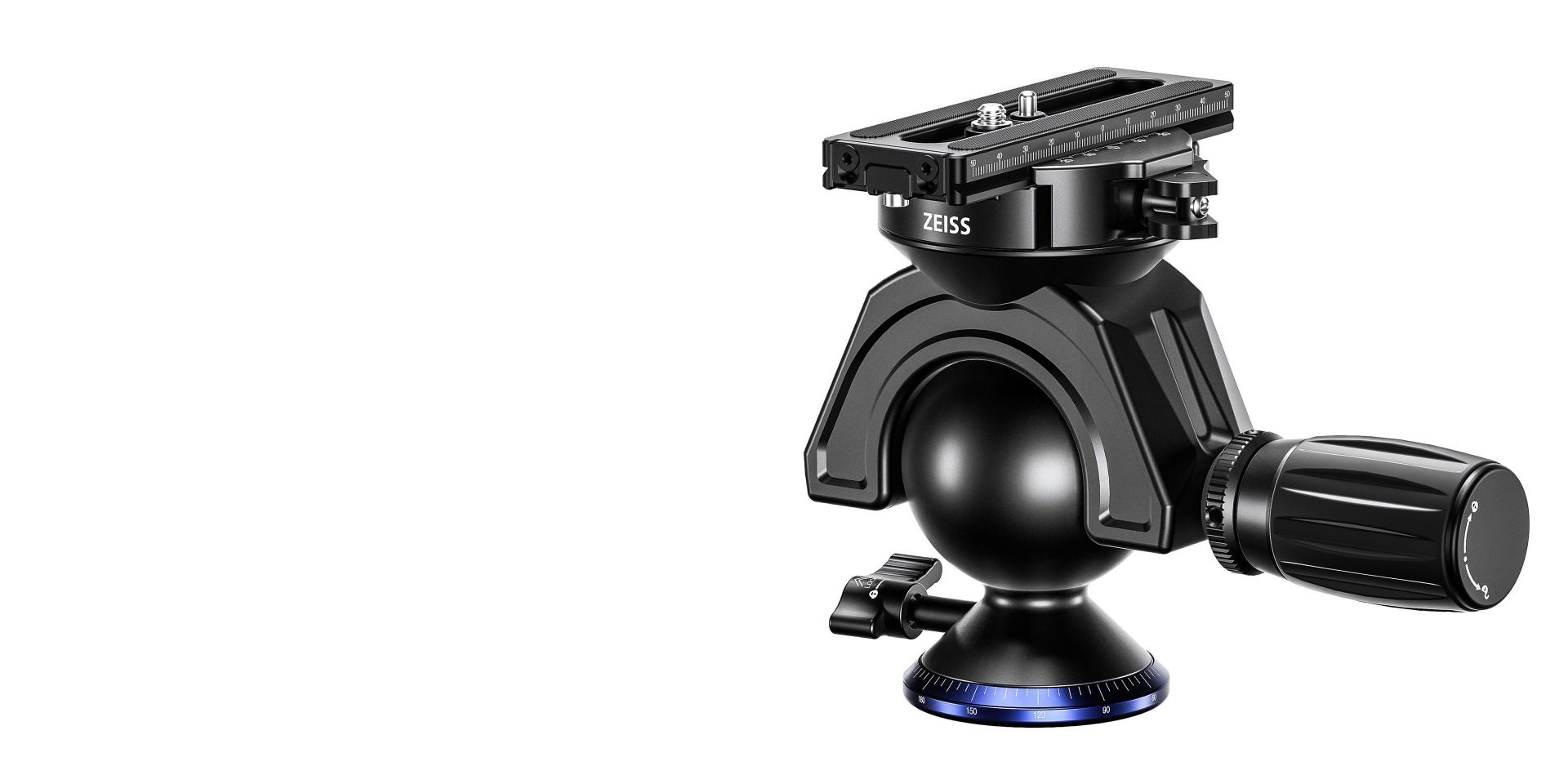

Black ZEISS tripod ball head with adjustable knobs and mounting plate, displayed on a white background.

Secure Connection

  • Arca-Swiss top mounting system
  • 3/8” Thread-on head
  • 1/4-20 extended balance plate with rubberized anti-slip strips
  • Strong, adjustable, ergo-friendly clamps and knobs

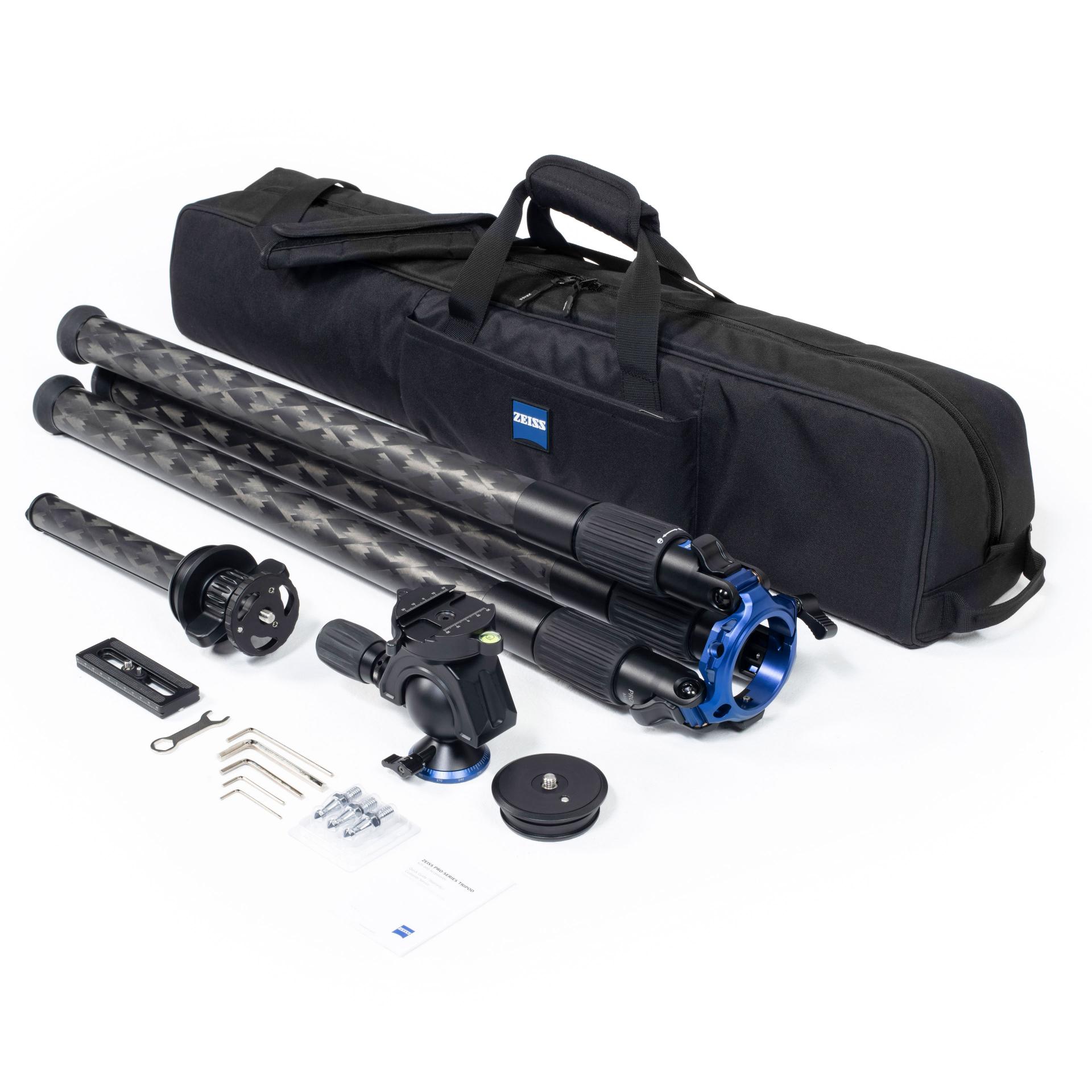

  • Carbon fiber tripod kit with multiple components, including a tripod head, mounting accessories, instruction manual, and a black carrying case featuring the ZEISS logo.

    With Ballhead V-60

  • Camouflaged ZEISS trail camera with a large external antenna, shown mounted inside an open protective case.

    With Ballhead L-55

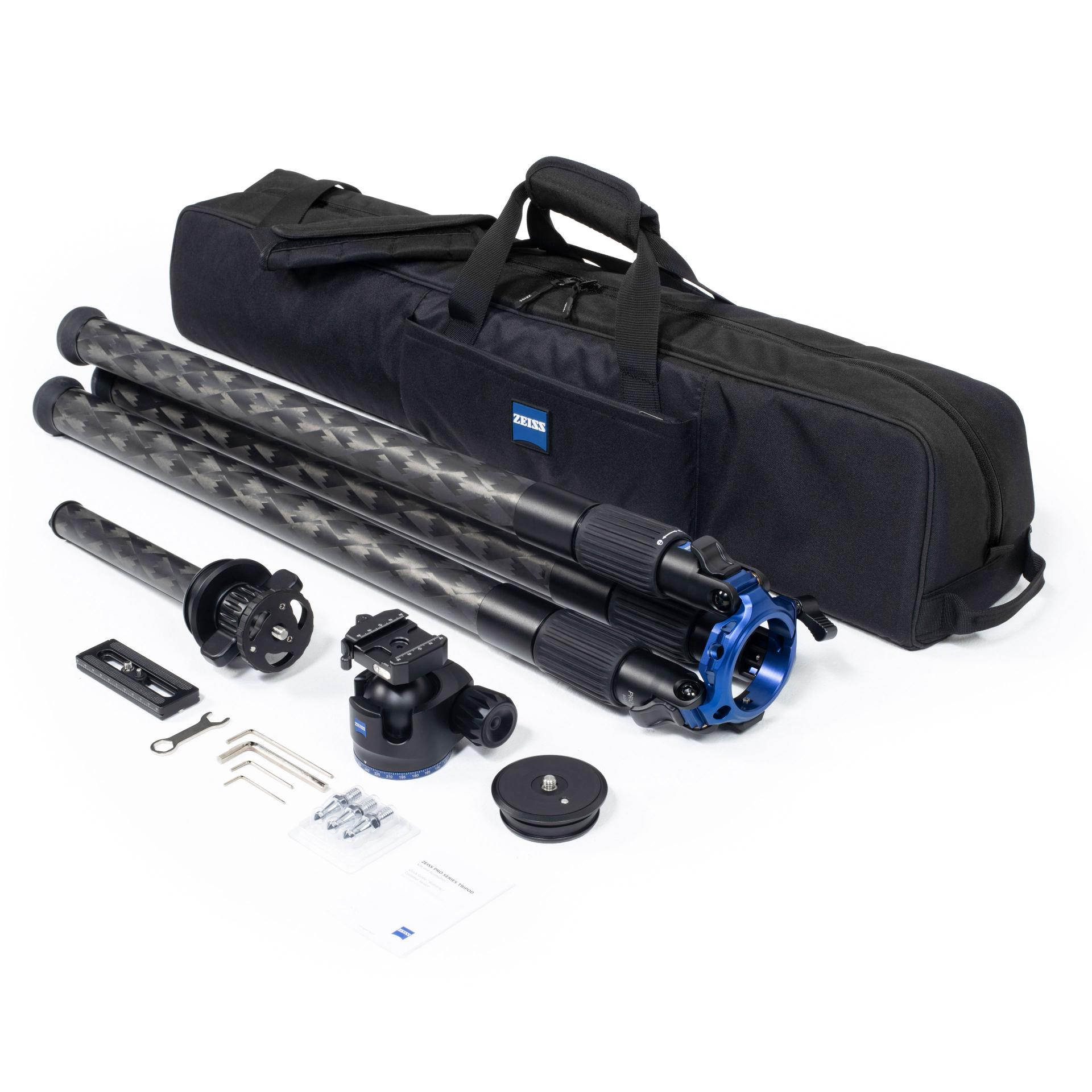

What's included in the kit?

  • MAX-DUTY Tripod
  • Ballhead V-60 or Ballhead L-55
  • Removable Center Column
  • Flat Plate Adapter with 3/8” Stud
  • 1/4-20 Extended Adapter Plate
  • Tripod Bag with Shoulder Strap
  • Tool Kit
  • Spiked Feet
  • Quick Guide

Technical Data

ZEISS Pro-Series Tripod Kits
  • Head Type

    Ballhead V-60

    Weight (No Head, No Center Column)

    4.0 kg | 9.0 lbs

    Weight (With Head, No Center Column)

    5.2 kg | 11.4 lbs

    Weight (With Head, With Center Column)

    5.5 kg | 12.1 lbs

    Extended Height (No Head)

    173 cm | 67.9"

    Extended Height (With Head)

    187 cm | 71.5"

    Compressed Length (With Head, With Center Column)

    101 cm | 39.8"

    Maximum Load

    30 kg | 66 lbs

    Leg Tube Diameters

    44 mm | 40 mm | 36 mm

    Leg Angles

    24° | 55° | 85°

    Leg Sections

    3

    Locking Mechanism

    Twist Lock

    Center Column

    Extendable and Detachable

  • Head Type

    Ballhead L-55

    Weight (No Head, No Center Column)

    4.0 kg | 9.0 lbs

    Weight (With Head, No Center Column)

    5.0 kg | 11.0 lbs

    Weight (With Head, With Center Column)

    5.3 kg | 11.8 lbs

    Extended Height (No Head)

    173 cm | 67.9"

    Extended Height (With Head)

    184 cm | 69.7"

    Compressed Length (With Head, With Center Column)

    99 cm | 38"

    Maximum Load

    30 kg | 66 lbs

    Leg Tube Diameters

    44 mm | 40 mm | 36 mm

    Leg Angles

    24° | 55° | 85°

    Leg Sections

    3

    Locking Mechanism

    Twist Lock

    Center Column

    Extendable and Detachable

Warranted for 10 Years.

When you register your tripod you automatically activate our 10 year warranty.

Matching Heads & Accessories

ZEISS Pro-Series Tripod Kits

Black ZEISS tripod head with a precision ball joint, pan handle, and quick-release mounting plate.
Black ZEISS tripod head with a precision ball joint, pan handle, and quick-release mounting plate.

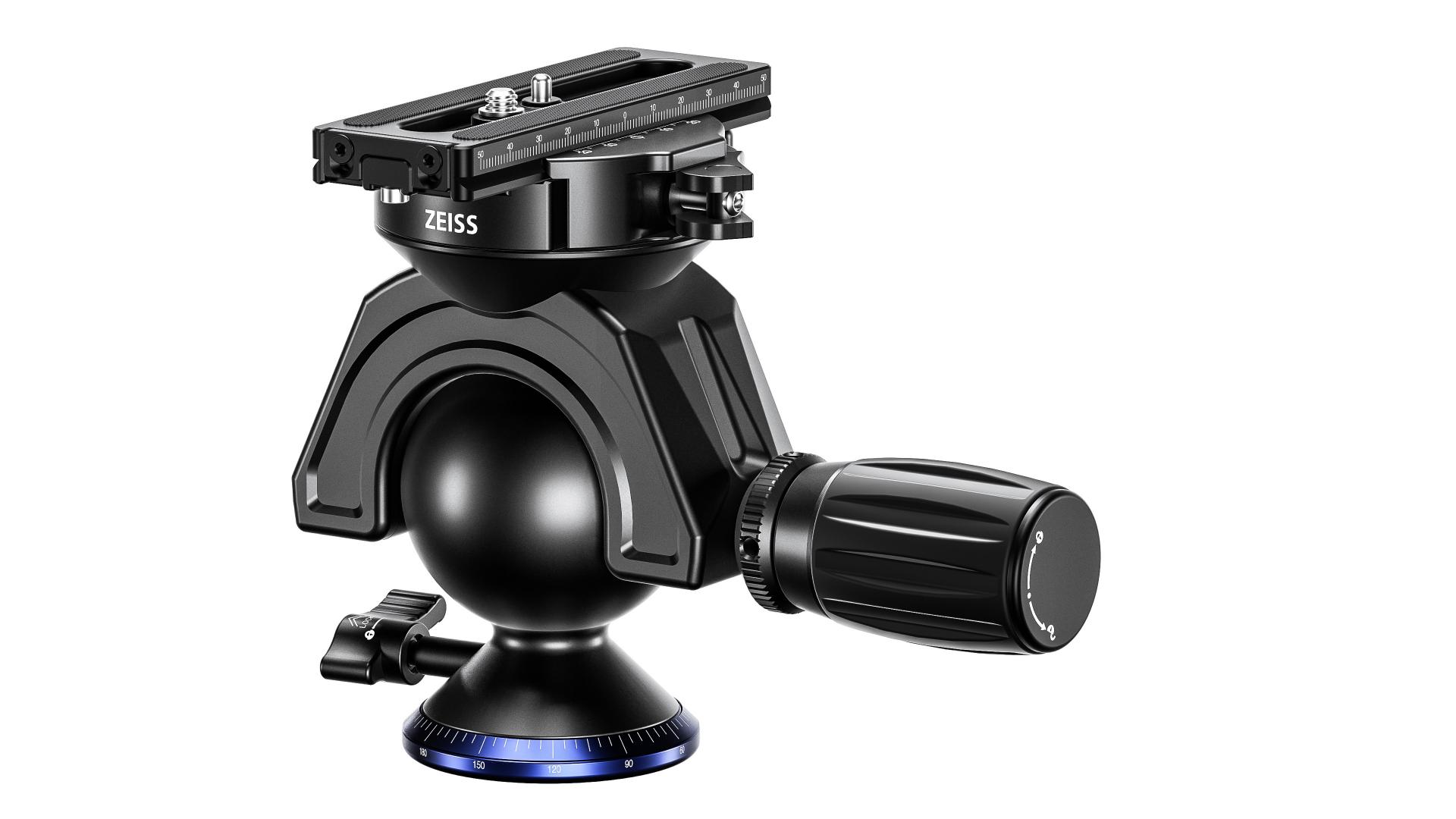

Ballhead V-60

The ZEISS Pro-Series Ballhead V-60 is extremely versatile and offers a wide range of tilt angles and compound adjustments. The tilt angle of up to 115° is smooth and precise, allowing you to find the perfect angle every time. The head movement resistance can be easily adapted to accommodate different weights of various mounted devices.

Black ZEISS tripod ball head with adjustment knobs, mounting plate, and leveling indicators.
Black ZEISS tripod ball head with adjustment knobs, mounting plate, and leveling indicators.

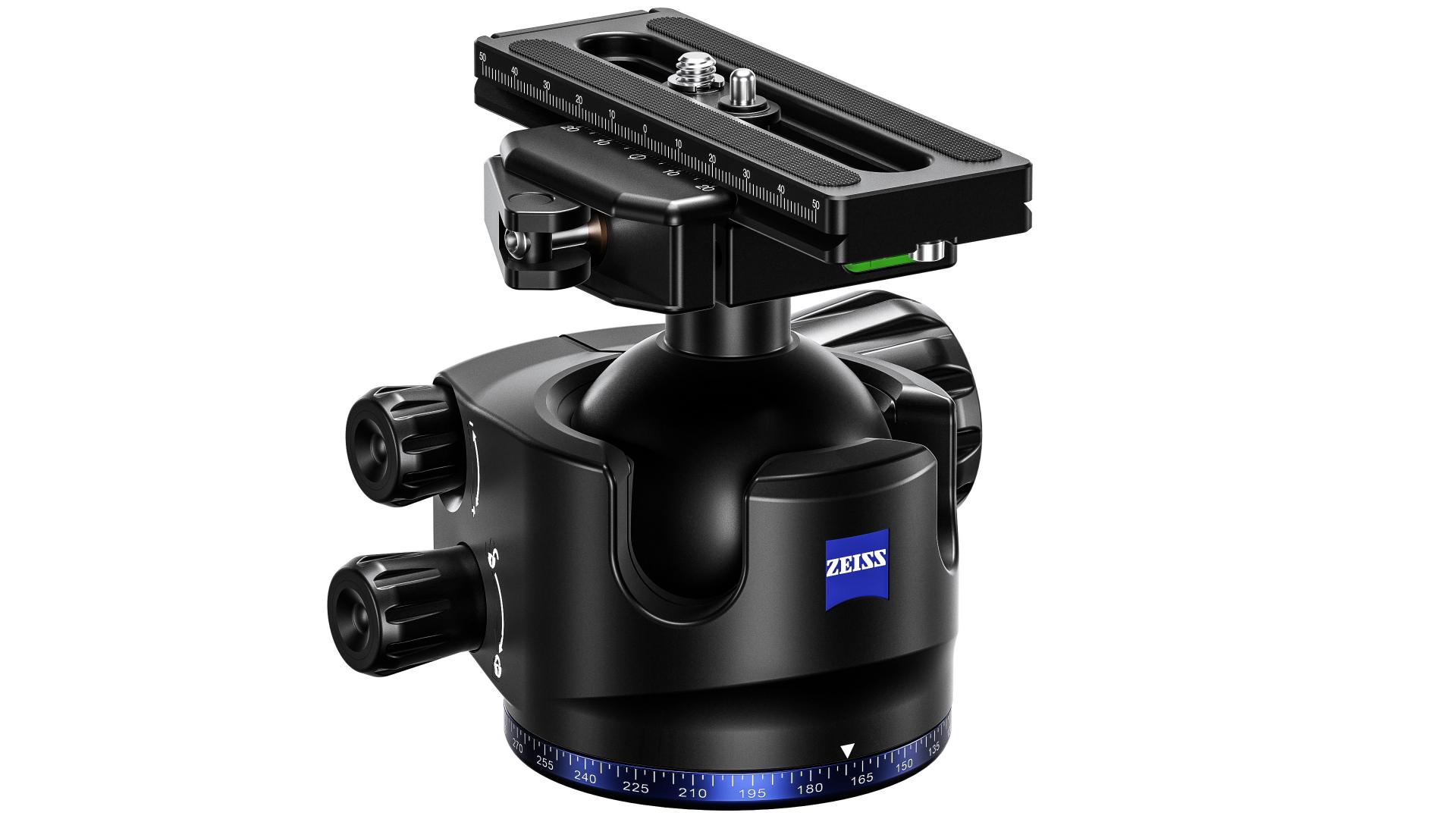

Ballhead L-55

The ZEISS Pro-Series Ballhead L-55 is a popular, reliable and stable ball head. With its familiar, low-profile design, it offers up to 90° of total adjustment for mounted devices. The head operates smoothly, with precise adjustments, making it easy to find the perfect position for the mounted optic or device.

Black ZEISS tripod head with a built-in handle grip and quick-release plate attachment.
Black ZEISS tripod head with a built-in handle grip and quick-release plate attachment.

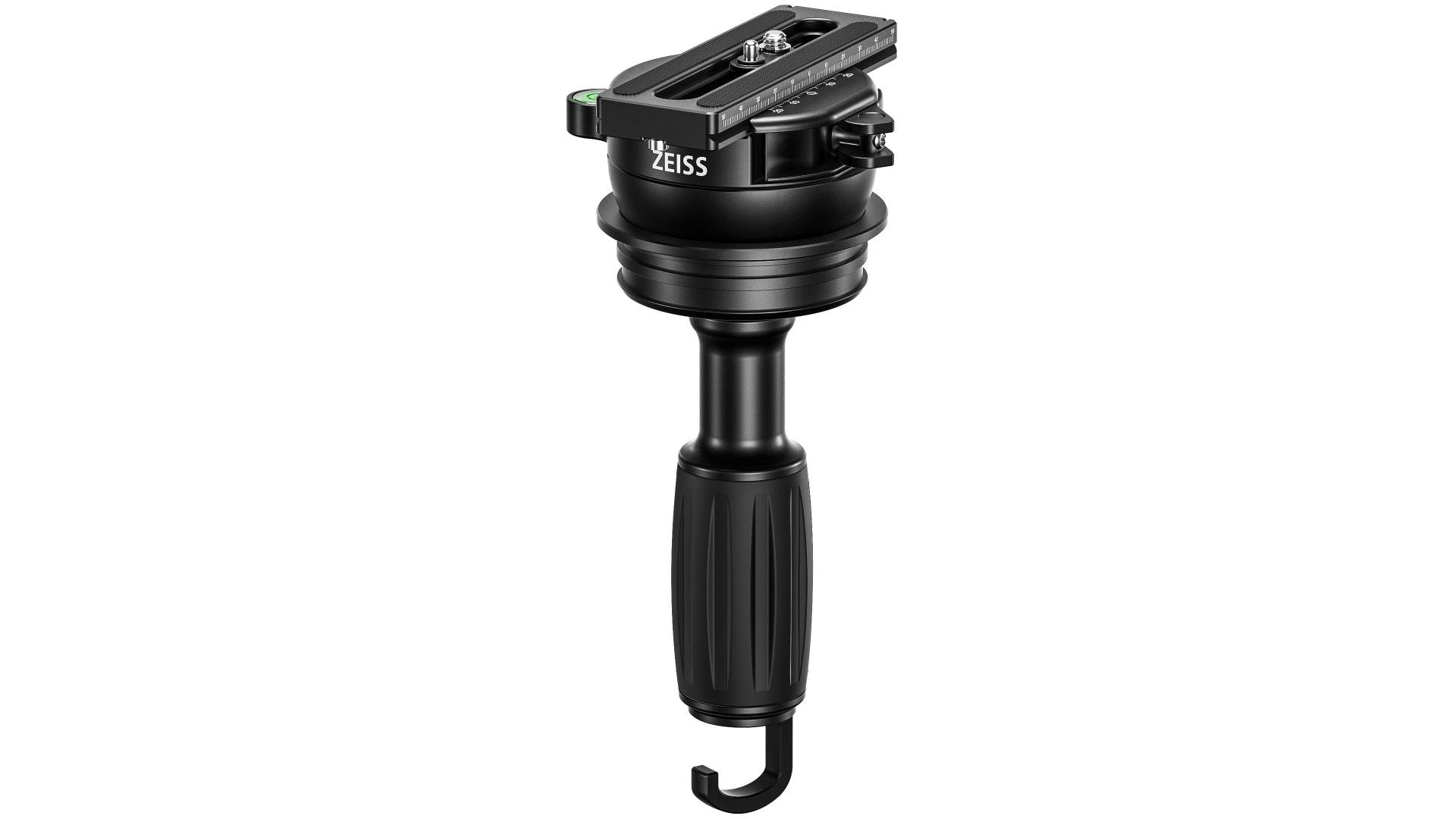

Leveling Head Q-75

The Leveling Head Q-75 offers quick access. It is Arca-Swiss compatible and includes a 75 mm adapter. The single handle adjustment features an extended hook for added convenience.

Black padded neck strap with adjustable side straps and a central ZEISS logo on the front.
Black padded neck strap with adjustable side straps and a central ZEISS logo on the front.

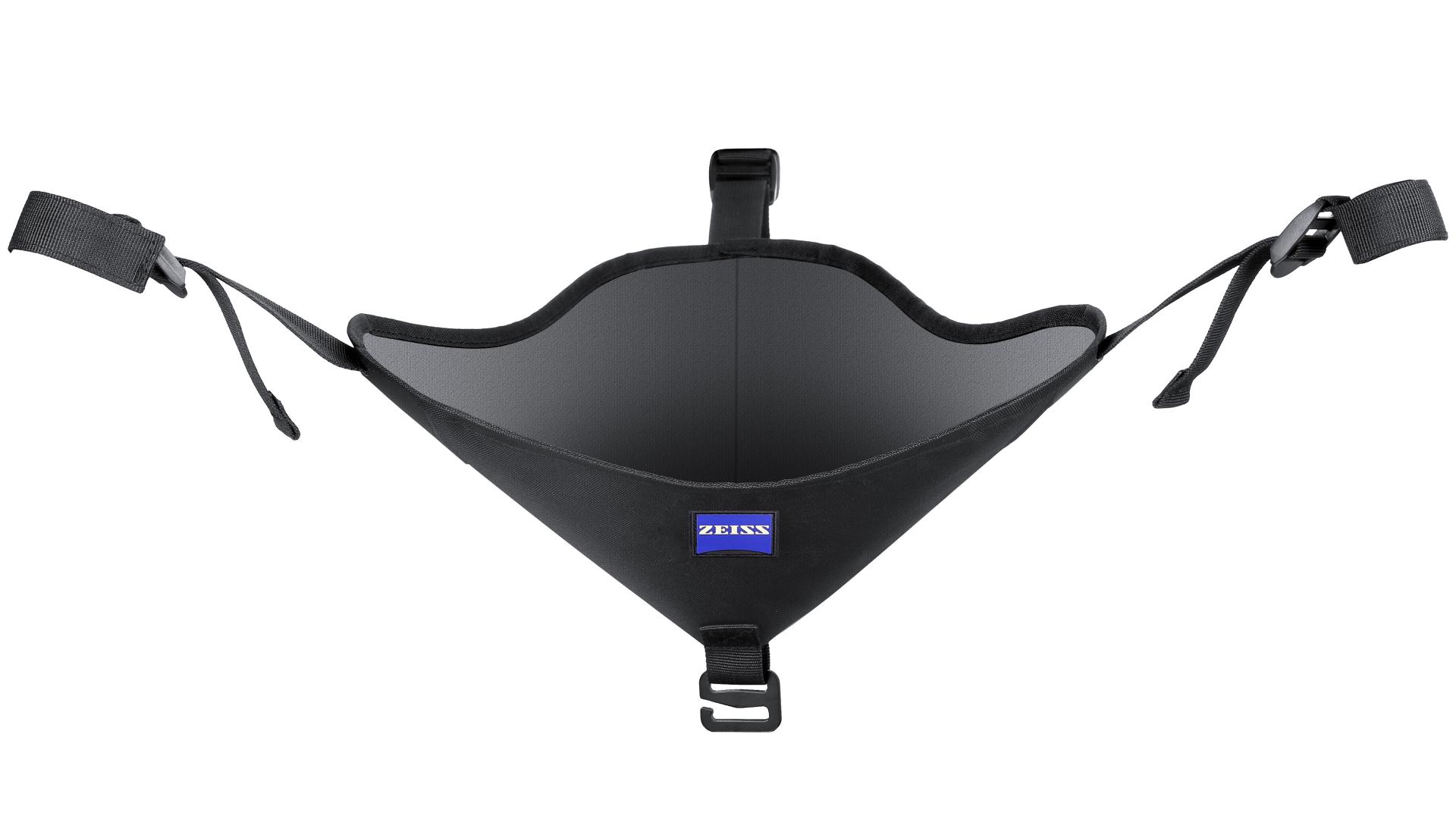

Accessory Bag

The ZEISS accessory bag is designed to add extra weight to your tripod for more stability, especially in windy conditions or when using heavier equipment. It also serves as a practical solution for the temporary storage of additional equipment.

Precision camera mounting rail system with integrated spirit level and adjustable components, featuring the ZEISS logo.
Precision camera mounting rail system with integrated spirit level and adjustable components, featuring the ZEISS logo.

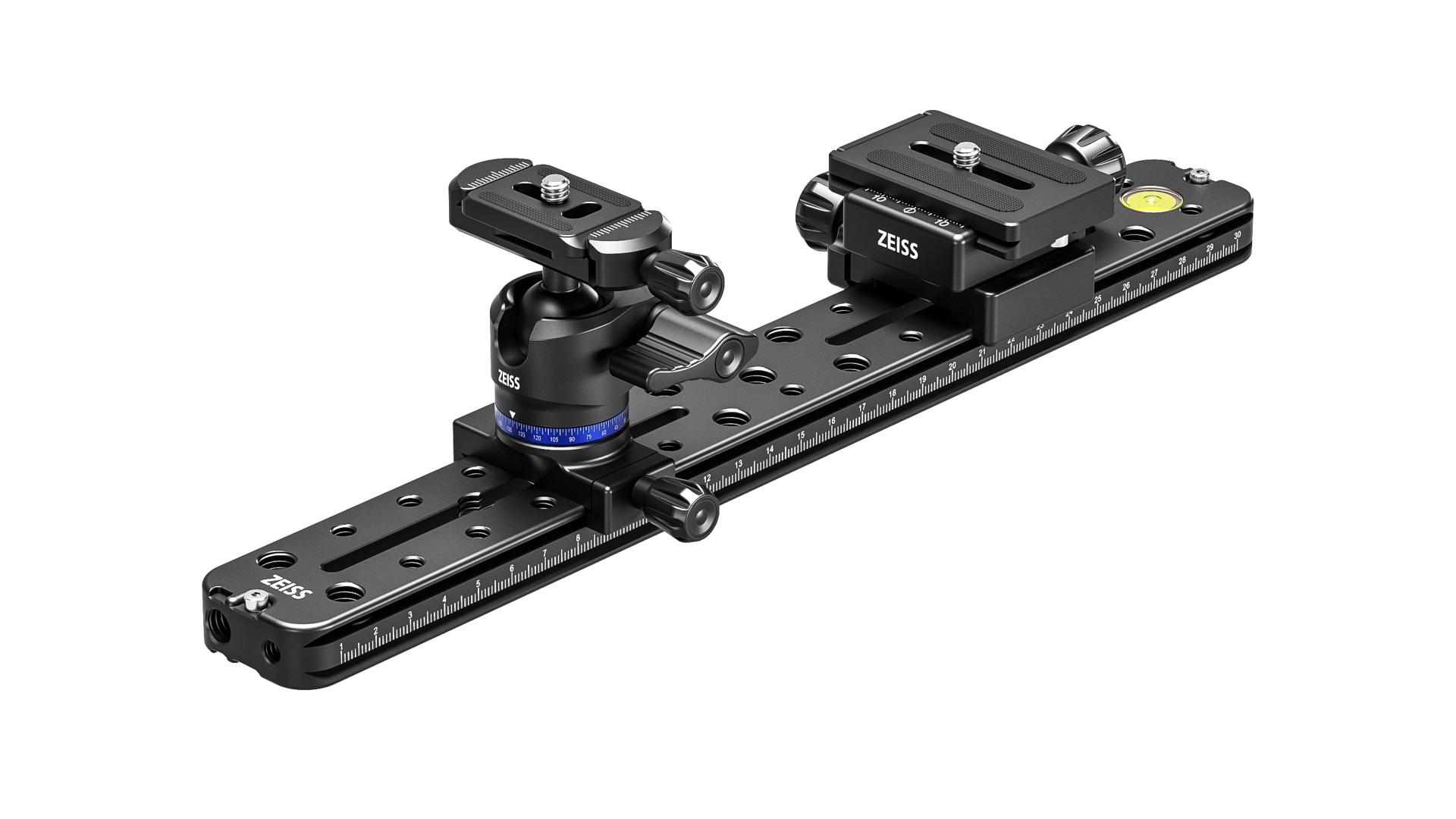

Multi Device Rail

The ZEISS multi-device rail is a versatile accessory that allows you to attach multiple devices to your tripod head at the same time. With Arca-Swiss and 1/4-20 compatibility, a variety of devices such as rangefinders, spotting scopes, binoculars, thermal imaging devices and more can be securely attached. This makes it the ideal solution to maximize the functionality and efficiency of your tripod setup.

Black ZEISS mounting clamp with adjustable knob and serrated gripping jaws, designed for secure attachment.
Black ZEISS mounting clamp with adjustable knob and serrated gripping jaws, designed for secure attachment.

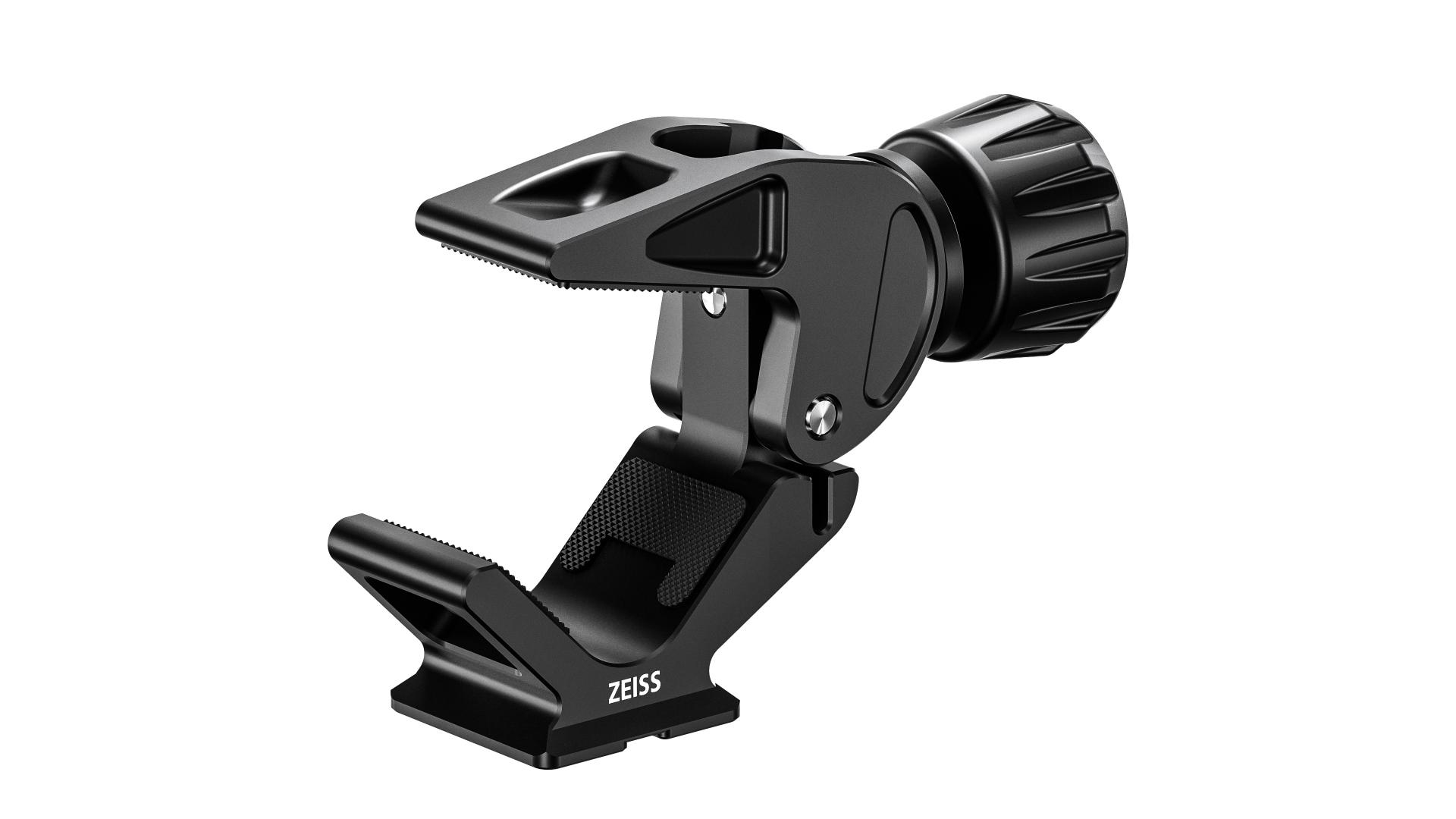

Binocular Clamp

The ZEISS binocular clamp is suitable for most all sizes and brands of binoculars, including those without a tripod mount. The clamp has an ergo-friendly adjustment knob especially developed for speed and ease-of-use. The oversized adjustment works well with cold or gloved hands and allows for a very secure attachment system. This accessory, when combined with your choice of Arca-Swiss compatible head, permits steady observation even under difficult conditions.

Black ZEISS-branded optical instrument accessory with ergonomic grip and adjustment knob, standing upright on a flat base.
Black ZEISS-branded optical instrument accessory with ergonomic grip and adjustment knob, standing upright on a flat base.

Tripod-to-Binocular Adapter 1/4-20

The ZEISS binocular adapter makes it quick and easy to attach your binoculars to the tripod. It has an Arca-Swiss interface that ensures a secure connection to your tripod head. The design offers a comfortable grip for effortless handling and control. The adapter is compatible with the following ZEISS binoculars: ZEISS Victory SFL, ZEISS Conquest HDX, ZEISS Conquest HD, ZEISS Terra ED 42.

Black ZEISS camera mounting clamp with textured grip surfaces, adjustment knob, and central screw hole.
Black ZEISS camera mounting clamp with textured grip surfaces, adjustment knob, and central screw hole.

Riflescope Clamp

The ZEISS riflescope clamp offers a simple, quick and secure attachment for your rifle. It helps to ensure rifle stability, tracking, and precise shot placement in various shooting situations. The ergo-friendly knob provides an improved grip and control of the adjustment to further ensure a secure and reliable rest for the rifle. Additionally, end-users also find this accessory helpful in variety of ways when they need a specific item secured or supported in the field.
