A photographer uses a camera with a ZEISS lens to capture a candid moment, showcasing the clarity and versatility of ZEISS optics in dynamic environments.
ZEISS Photography

ZEISS Touit Lenses

Making beautiful details come to life.

Explore ZEISS Touit lenses and experience how distinctive ZEISS quality allows you to maximize the capabilities of Sony Alpha and Fujifilm X series mirrorless APS-C cameras.

Explore more details now
  • Smooth and Reliable Autofocus
  • Virtually Distortion-free Optics
  • Floating Elements Design
  • Three ZEISS Touit 2.8/12 camera lenses with lens hoods are displayed side by side on a white background.

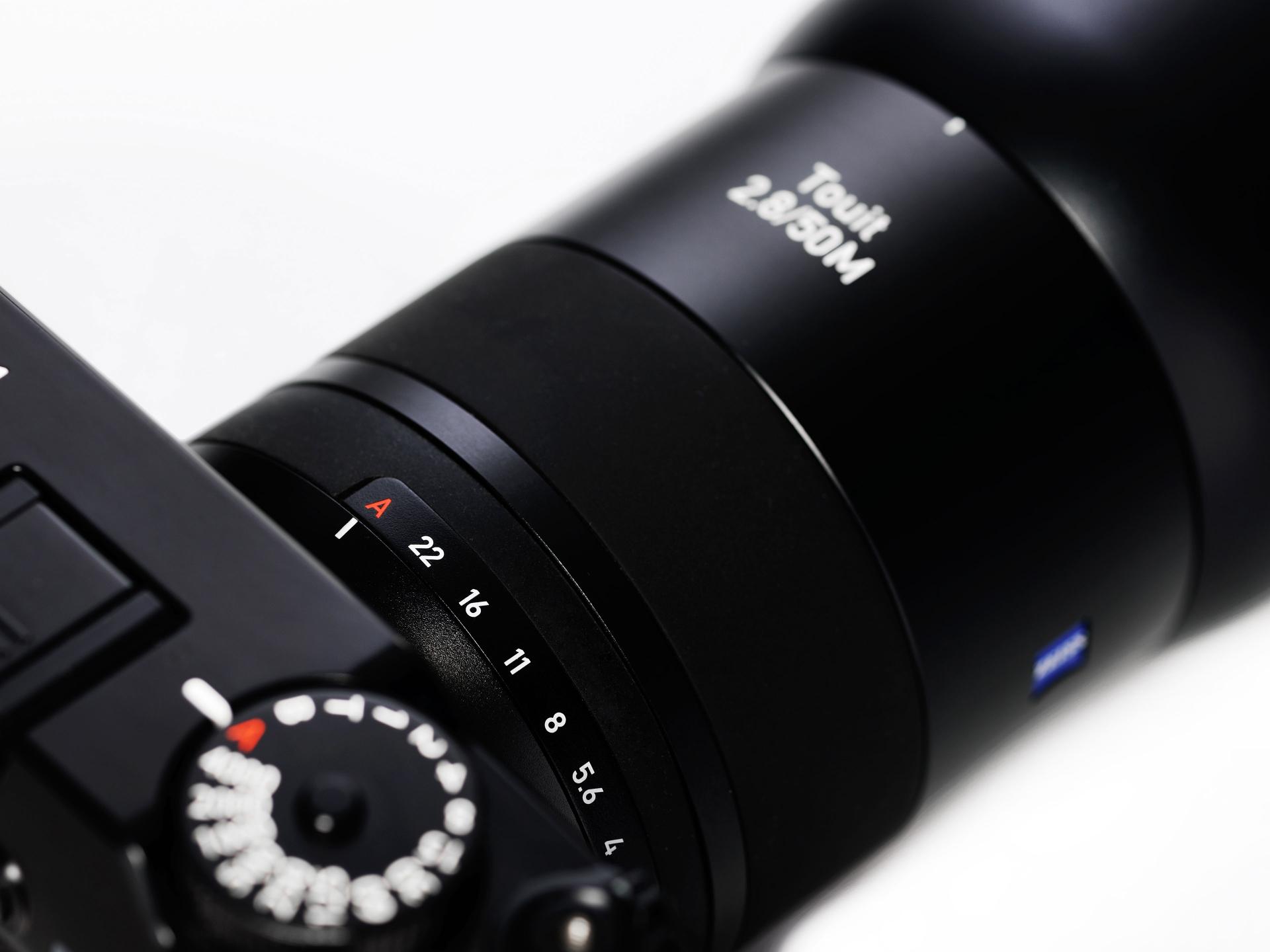

  • Close-up view of a ZEISS Touit 2.8/50M camera lens showing the front glass element and branding.
  • Rear view of a ZEISS camera lens showing the metal mount, electronic contacts, and inner glass element.
  • Black ZEISS Touit 1.8/32 camera lens displayed on a white background.
  • Close-up image of a ZEISS Touit 2.8/50M camera lens mounted on a black camera body, highlighting the aperture ring and focusing details.
  • Two ZEISS Touit 1.8/32 camera lenses are shown standing upright against a white background.
  • Front view of a ZEISS Planar 1.8/32 camera lens with a 52mm filter thread.
  • Close-up view of a ZEISS Distagon 2.8/12 camera lens with visible T* coating marking and 67mm filter thread size.

The Touit product family from ZEISS comprises a remarkable collection of compact autofocus lenses specifically designed for mirrorless APS-C cameras, compatible with both Sony E mount and Fujifilm X mount systems. These lenses are engineered to be lightweight, ensuring ease of use and portability, while maintaining a robust construction that promises durability and reliability in various shooting conditions.

Touit lenses are renowned for delivering outstanding image quality, making them an excellent choice for photographers who seek precision and clarity in their work. Whether you're capturing landscapes, portraits, or intricate details, these lenses provide exceptional performance, enhancing the capabilities of your system camera and allowing you to achieve stunning visual results.


Available Models

ZEISS Touit Lenses

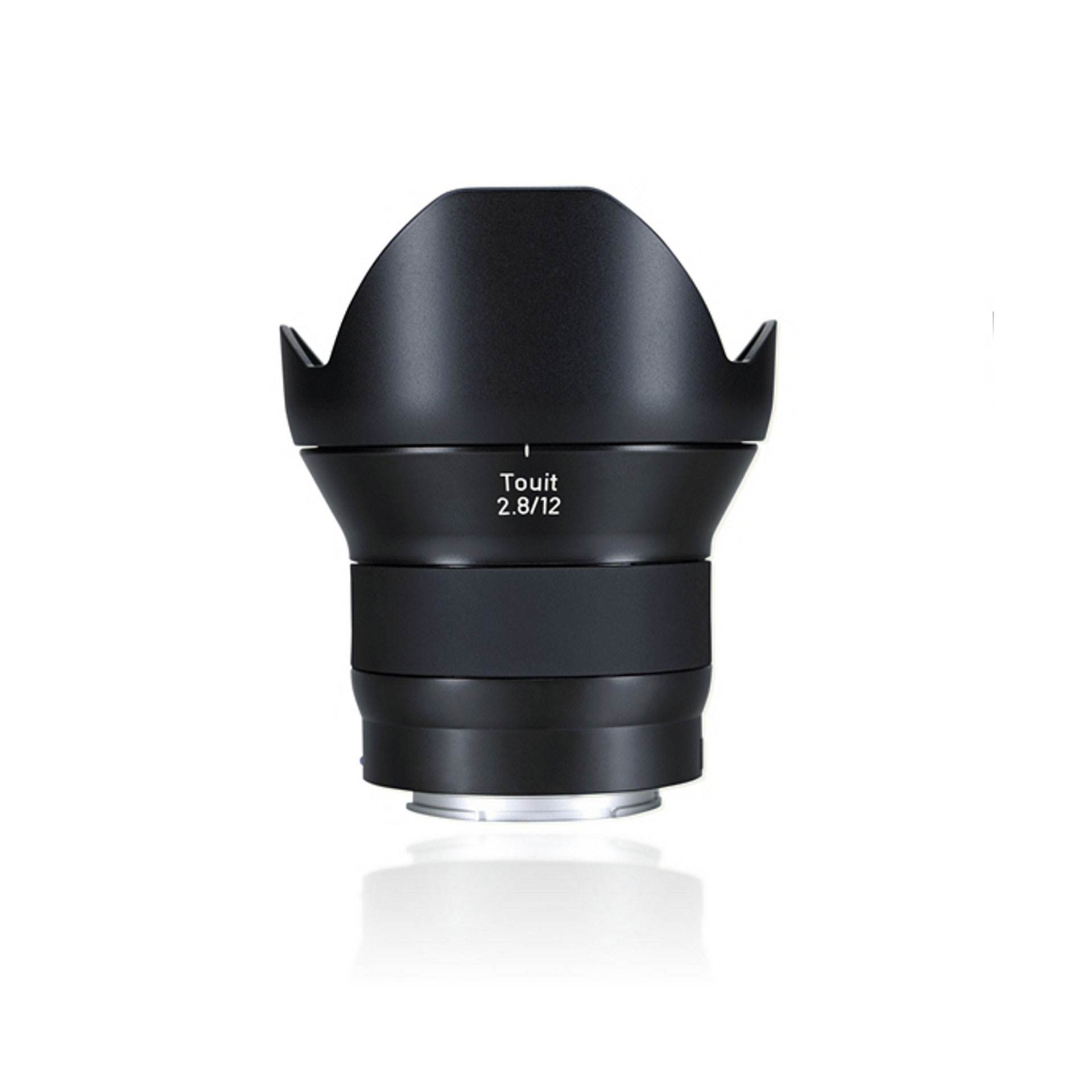

  • Wide-angle ZEISS Touit 2.8/12 camera lens with visible aperture and focus markings, shown against a white background.
    Touit 2.8/12

         Focusing Range:
    0.18 m (7.01") – ∞
    Free Working Distance:
    0.10 m (3.94") – ∞
    Weight:
    E: 260 g (0.57 lbs)
    X: 270 g (0.60 lbs)

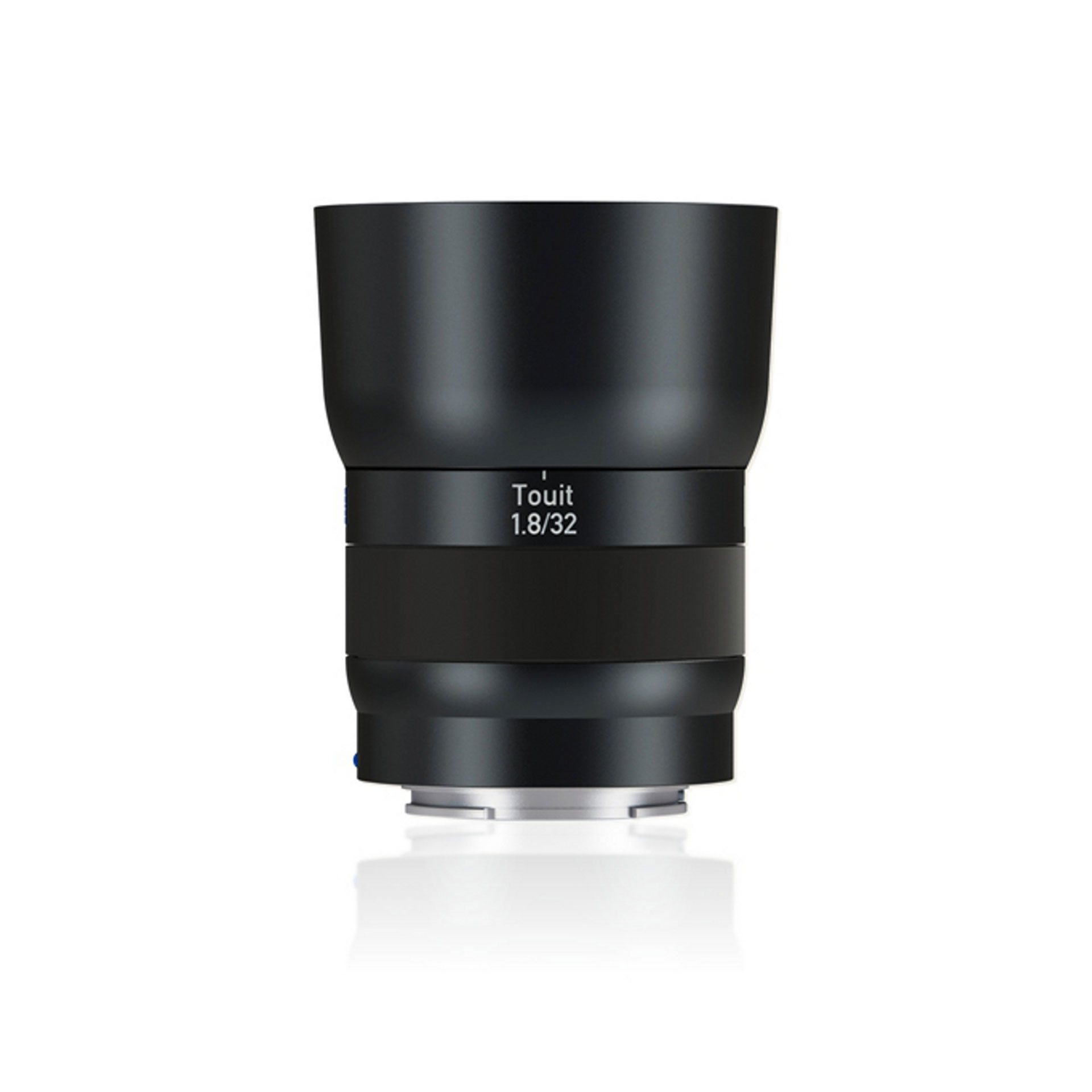

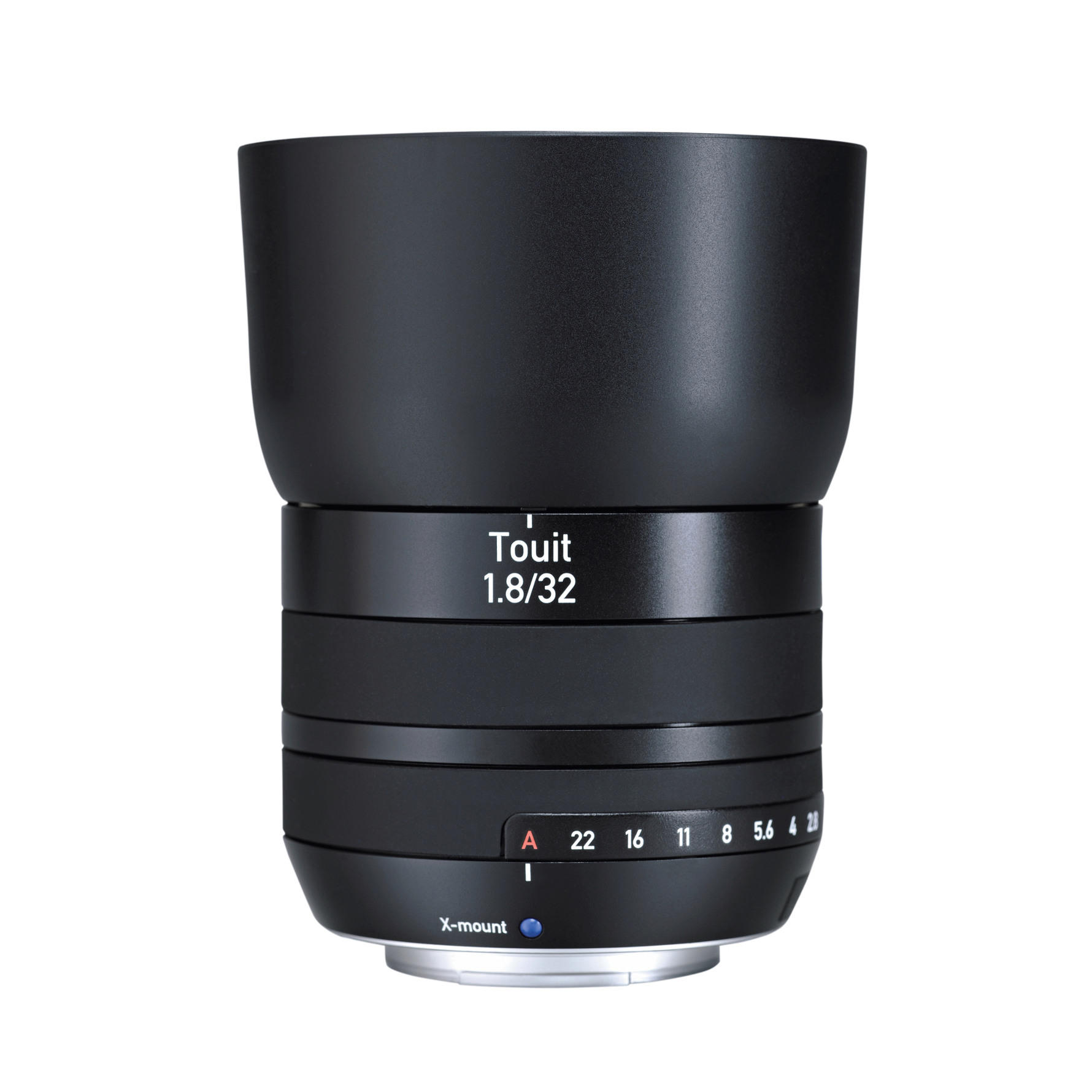

  • Black ZEISS Touit 1.8/32 camera lens with X-mount, shown standing upright on a white background.
    Touit 1.8/32

         Focusing Range:
    0.30 m (11.81") – ∞
    Free Working Distance:
    0.23 m (9.06") – ∞
    Weight:
    E: 200 g (0.44 lbs)
    X: 210 g (0.46 lbs)

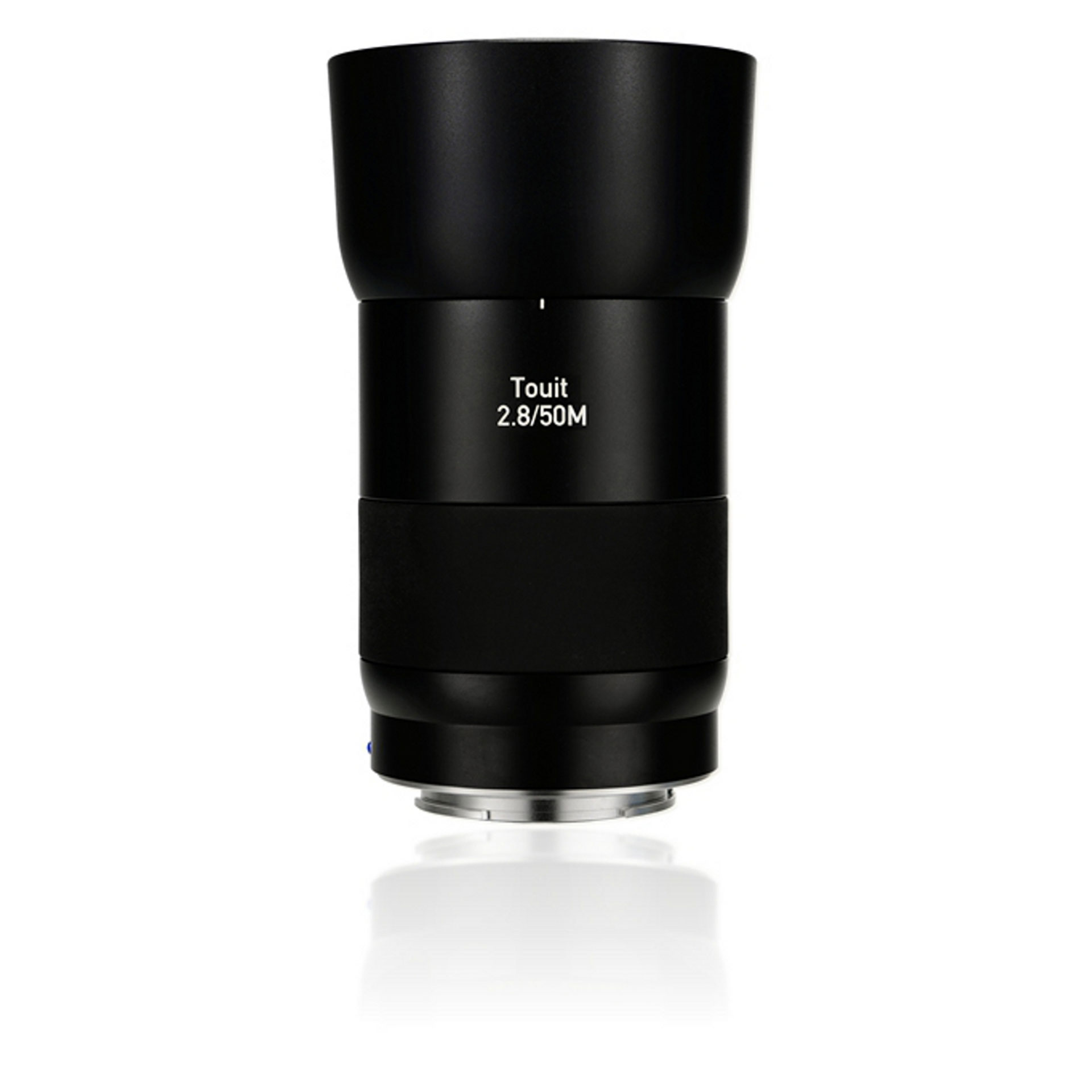

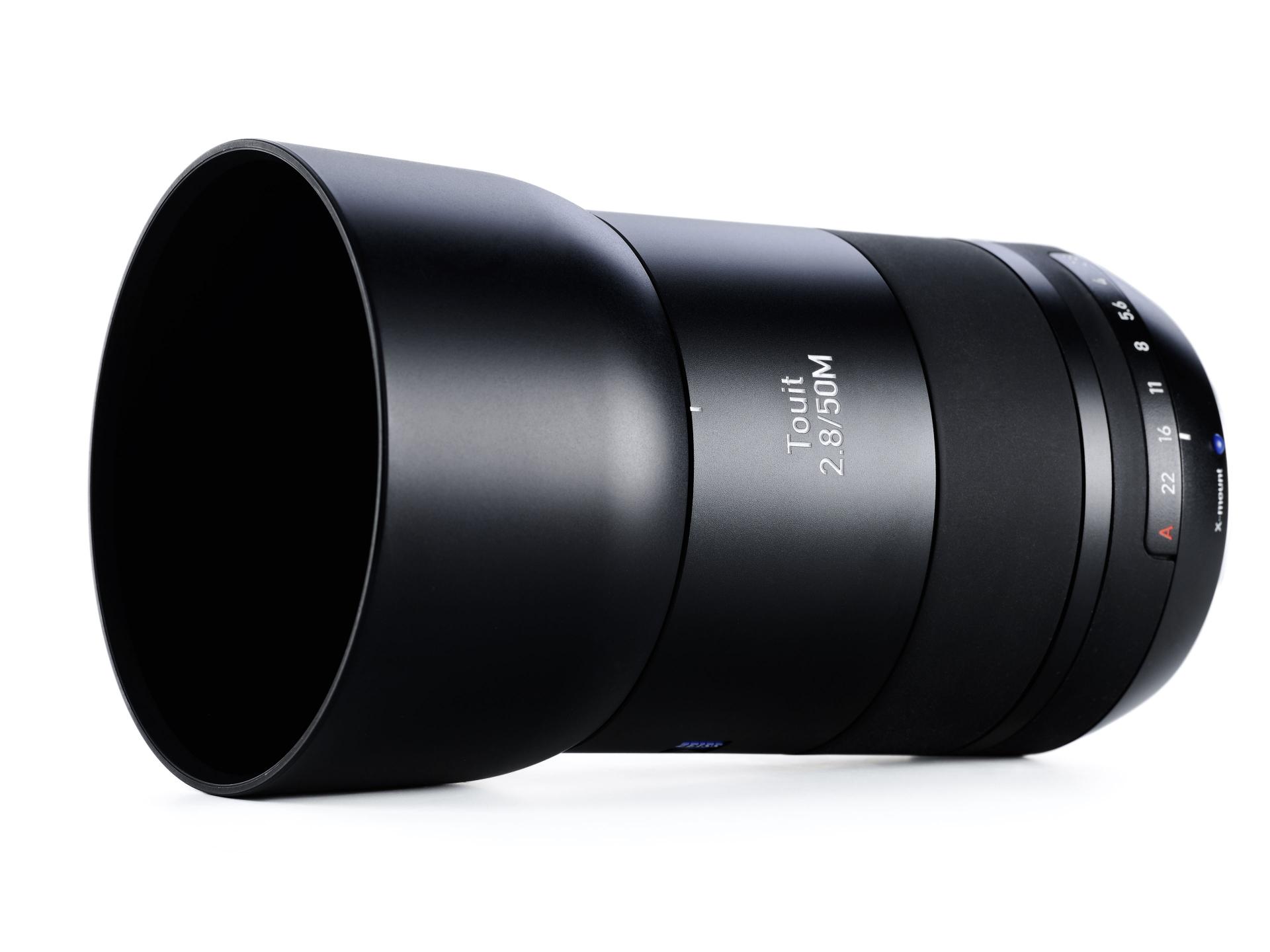

  • Black ZEISS Touit 2.8/50M camera lens displayed on a white background.
    Touit 2.8/50M

         Focusing Range:
    0.15 m (6.02") – ∞
    Free Working Distance:
    0.05 m (1.97") – ∞
    Weight:
    E: 290 g (0.64 lbs)
    X: 290 g (0.64 lbs)
ZEISS Touit Lenses
Find a Dealer
Person holding a professional camera equipped with a ZEISS lens in an outdoor setting.

Smooth and Reliable Autofocus

The design of the autofocus system demands an extremely precise movement of certain lens elements. As the mass of the elements or groups to be moved within the optical system differs, various motor types may be installed. The focusing system of the Touit lenses is designed to guarantee robust and smooth autofocusing without any need for compromises or limitations in their optical design.1

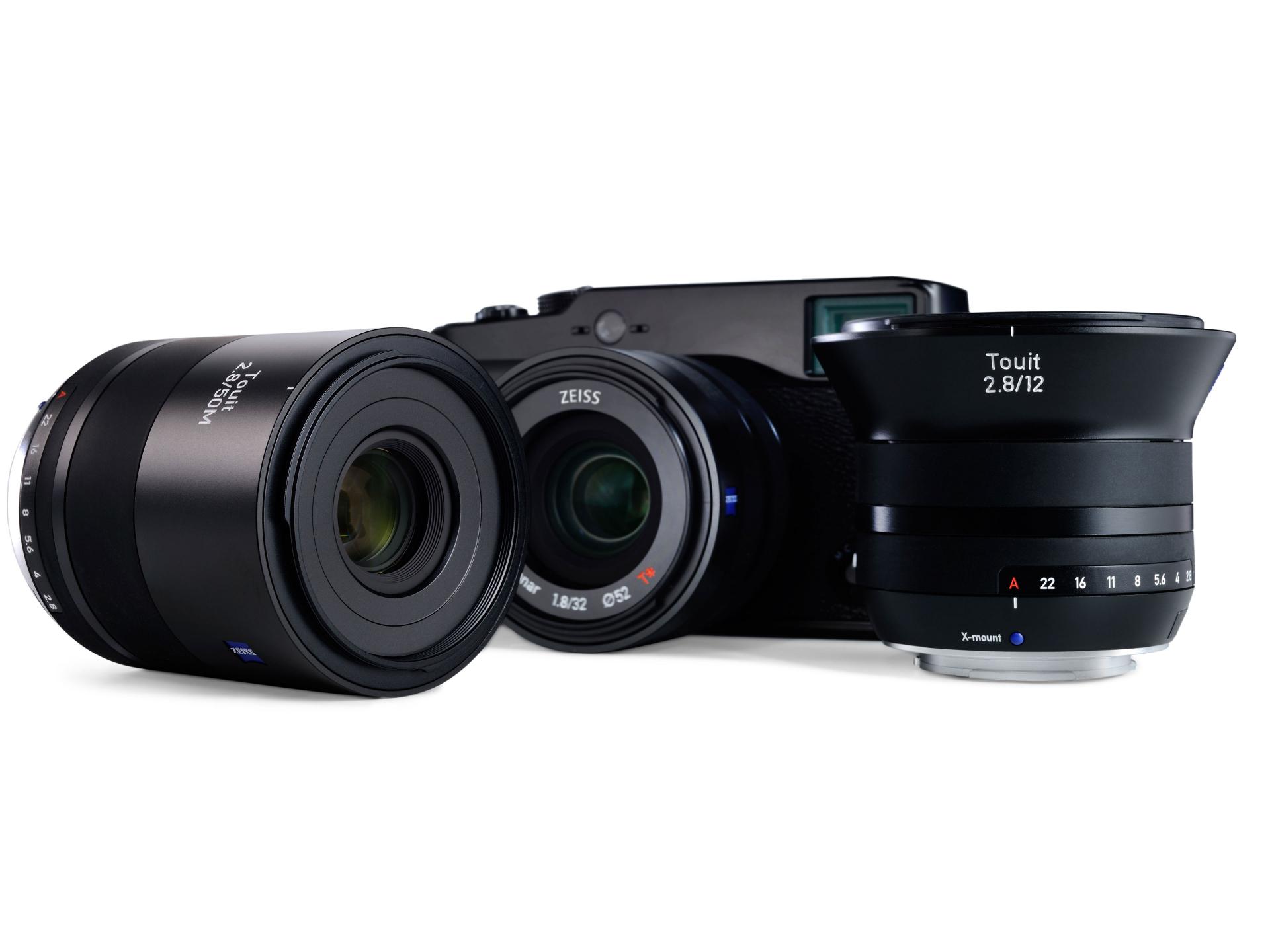

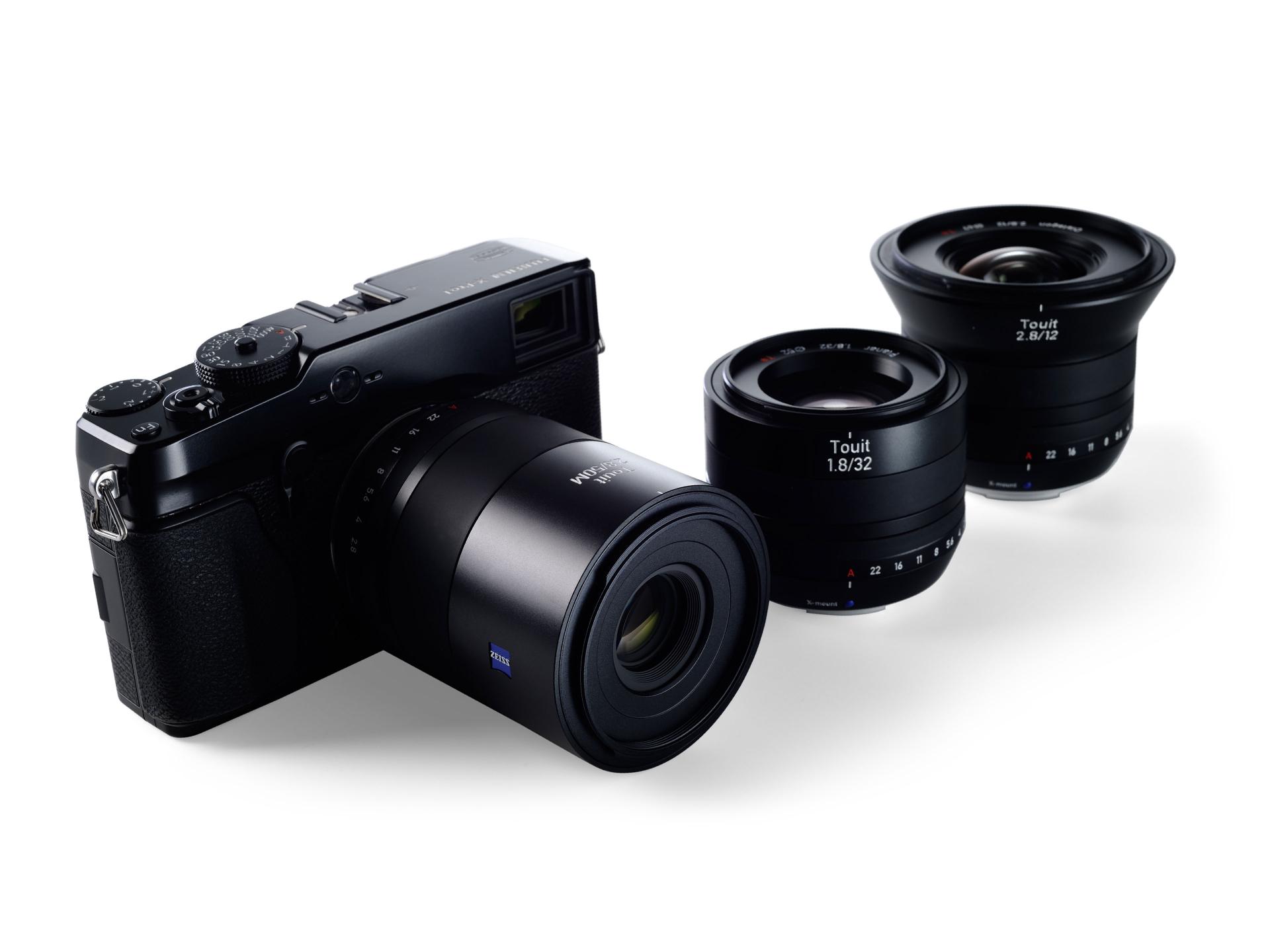

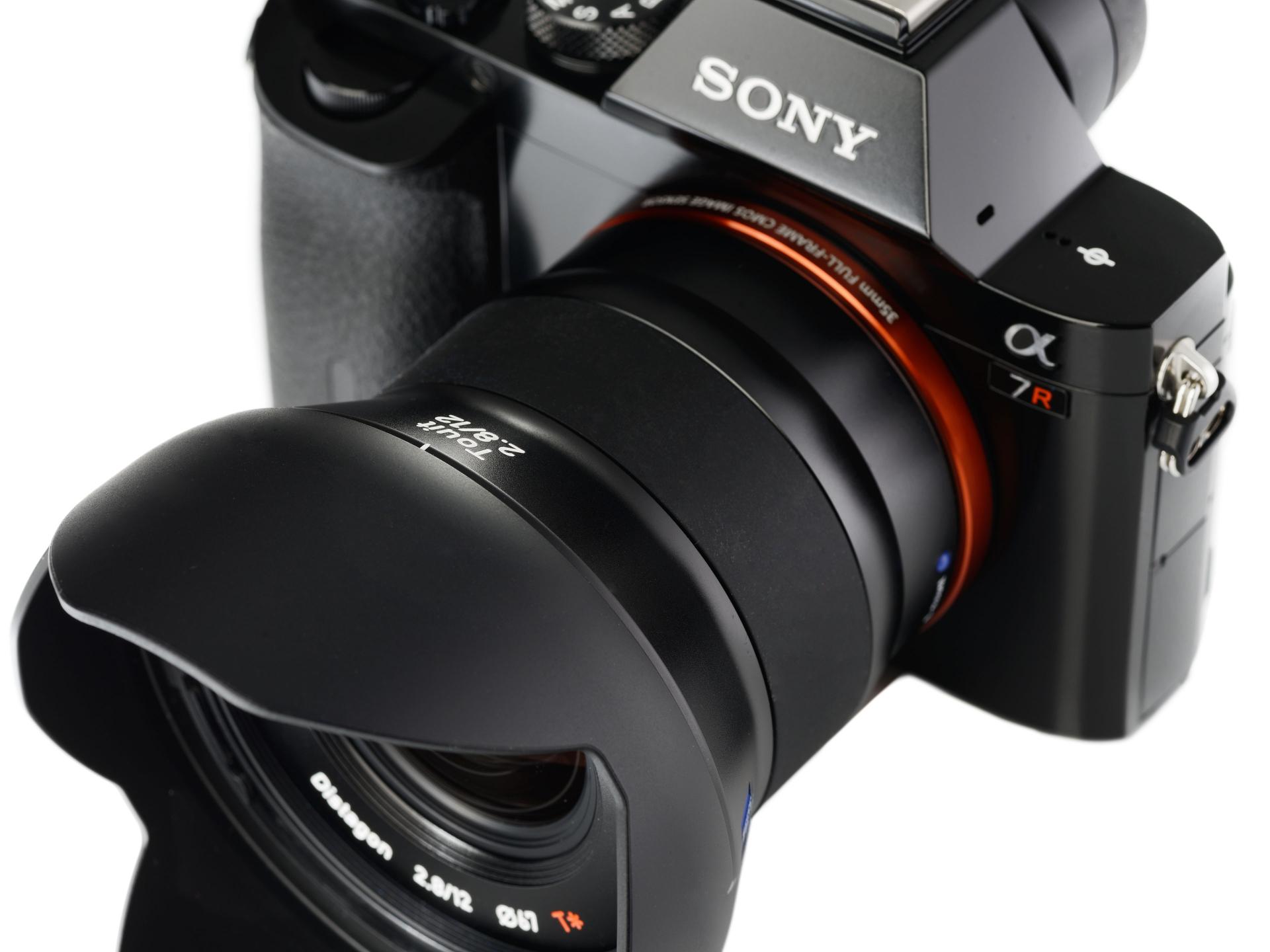

Two black mirrorless cameras equipped with ZEISS lenses are positioned side by side on a white background.

Full Compatibility

The ZEISS Touit lenses are designed and constructed specifically for use on APS-C cameras of the Sony Alpha series with E-Mount and Fujifilm X series. The lenses are therefore fully compatible and support all camera functions, including autofocus.

Stone corridor with a series of arches and columns, illuminated by soft ground lighting.
Ralph Koch

Virtually Distortion-Free Optics

Dramatic perspectives and a view from extraordinary image angles – ZEISS lenses open up new composition possibilities. Distortion would disrupt the composition because straight lines, whose image does not go through the image center, would be reproduced with a curved shape. This annoying effect is accordingly and largely compensated through elaborate optical designs at all focal lengths.

Snow-covered mountain slope with rippled texture illuminated by the setting sun behind distant peaks.
Bernd Ritschel

ZEISS T* Coating

The optical elements of ZEISS lenses feature T*® anti-reflective coating on all surfaces and an optical design that guarantees images of superior brilliance at all times, even in unfavourable lighting conditions. We apply the anti-reflective coating to the lens surfaces by the vapour deposition of extremely thin, transparent layers on the glass. In this process, special substances are vaporized with extremely high energy in a high-vacuum environment and are subsequently deposited on the glass surfaces, one after another, as layers with precisely controlled thicknesses to achieve the desired reduction of reflective properties. The first coating techniques were employed by ZEISS as long ago as in the 1930s.

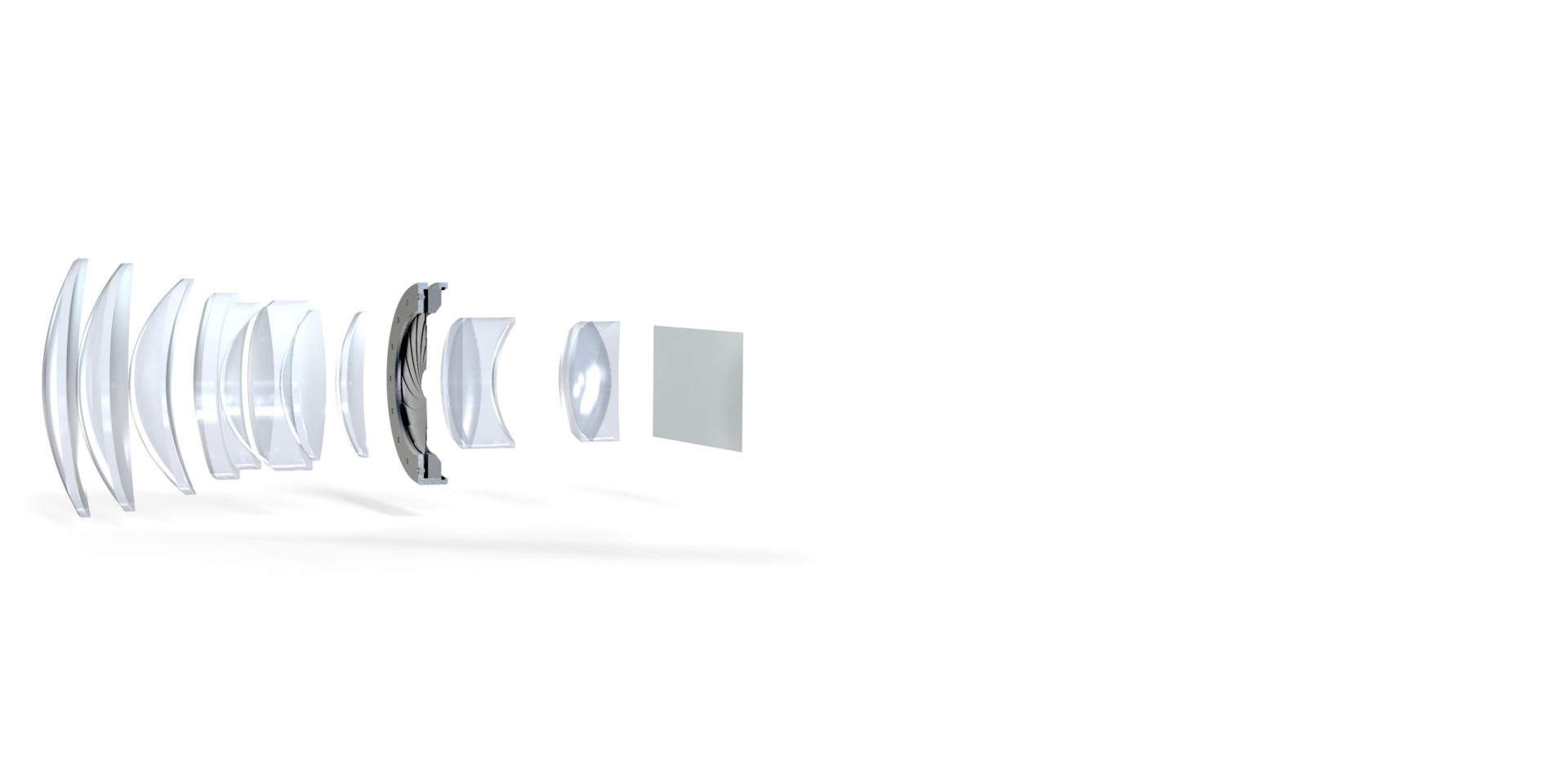

Exploded view of a ZEISS camera lens assembly showing individual optical lens elements aligned in sequence.

Floating Elements Design

Today's camera technologies and high-resolution sensors demand continuous improvement of lens performance. Thanks to the use of the latest floating element design principles, optical aberration effects in ZEISS lenses are reduced to a minimum throughout their entire focusing range. This is achieved by variation of the axial distance between individual lens elements or groups. This adjustment of the lens-to-lens distance is coupled to the distance setting to ensure correct compensation at all times. The mechanical construction of these lenses is extremely complex and they must be assembled with utmost precision – both of which are key competencies of ZEISS.

Captured Moments

ZEISS Touit Lenses
View all
Captured Moments

Technical Data

ZEISS Touit Lenses

  • Focal Length

    12 mm

    Aperture Range

    f/2.8 – f/22

    Camera Mount

    Sony E-Mount2 | Fujifilm X-Mount2

    Format Compatibility

    APS-C

    Focusing Range

    0.18 m (7.01") – ∞

    Free Working Distance

    0.10 m (3.94") – ∞

    Angular Field3 (diag. horiz. vert.)

    99° | 89° | 66°

    Diameter of Image Field

    28 mm (1.11")

    Coverage at Close Range (MOD)4

    220 x 144 mm (8.66 x 5.67")

    Image Ratio at Minimum Object Distance

    1 : 9

    Lens Elements | Groups

    11 | 8

    Flange Focal Distance

    E: 18 mm (0.71") | X: 18 mm (0.70")

    Entrance Pupil Position (Front of Image Plane)

    62 mm (2.42")

    Autofocus

    +

    Image Stabilization

    –

    Filter Thread

    M67 x 0.75

    Rotation Angle of Focusing Ring

    270°

    Diameter max.

    E: 88 mm (3.46") | X: 88 mm (3.46")

    Diameter of Focusing Ring

    E: 65 mm (2.56") | X: 65 mm (2.56")

    Length (With Lens Caps)

    E: 81 mm (3.19") | X: 86 mm (3.39")

    Length (Without Lens Caps)

    E: 68 mm (2.68") | X: 68 mm (2.68")

    Weight

    E: 260 g (0.57 lbs) | X: 270 g (0.60 lbs)

  • Focal Length

    32 mm

    Aperture Range

    f/1.8 – f/22

    Camera Mount

    Sony E-Mount2 | Fujifilm X-Mount2

    Format Compatibility

    APS-C

    Focusing Range

    0.30 m (11.81") – ∞

    Free Working Distance

    0.23 m (9.06") – ∞

    Angular Field3 (diag. horiz. vert.)

    48° | 40° | 29°

    Diameter of Image Field

    28 mm (1.11")

    Coverage at Close Range (MOD)4

    170 x 111 mm (6.69 x 4.37")

    Image Ratio at Minimum Object Distance

    1 : 9

    Lens Elements | Groups

    8 | 5

    Flange Focal Distance

    E: 18 mm (0.71") | X: 18 mm (0.70")

    Entrance Pupil Position (Front of Image Plane)

    47 mm (1.84")

    Autofocus

    +

    Image Stabilization

    –

    Filter Thread

    M52 x 0.75

    Rotation Angle of Focusing Ring

    270°

    Diameter max.

    E: 75 mm (2.95") | X: 75 mm (2.95")

    Diameter of Focusing Ring

    E: 65 mm (2.56") | X: 65 mm (2.56")

    Length (With Lens Caps)

    E: 72 mm (2.83") | X: 76 mm (2.99")

    Length (Without Lens Caps)

    E: 60 mm (2.36") | X: 58 mm (2.28")

    Weight

    E: 200 g (0.44 lbs) | X: 210 g (0.46 lbs)

  • Focal Length

    50 mm

    Aperture Range

    f/2.8 – f/22

    Camera Mount

    Sony E-Mount2 | Fujifilm X-Mount2

    Format Compatibility

    APS-C

    Focusing Range

    0.15 m (6.02") – ∞

    Free Working Distance

    0.05 m (1.97") – ∞

    Angular Field3 (diag. horiz. vert.)

    31° | 26° | 18°

    Diameter of Image Field

    28 mm (1.11")

    Coverage at Close Range (MOD)4

    24 x 16 mm (0.93 x 0.61")

    Image Ratio at Minimum Object Distance

    1 : 1

    Lens Elements | Groups

    14 | 11

    Flange Focal Distance

    E: 18 mm (0.71") | X: 18 mm (0.70")

    Entrance Pupil Position (Front of Image Plane)

    67 mm (2.67")

    Autofocus

    +

    Image Stabilization

    –

    Filter Thread

    M52 x 0.75

    Rotation Angle of Focusing Ring

    720°

    Diameter max.

    E: 75 mm (2.95") | X: 75 mm (2.95")

    Diameter of Focusing Ring

    E: 65 mm (2.56") | X: 65 mm (2.56")

    Length (With Lens Caps)

    E: 104 mm (4.09") | X: 108 mm (4.25")

    Length (Without Lens Caps)

    E: 91 mm (3.58") | X: 91 mm (3.58")

    Weight

    E: 290 g (0.64 lbs) | X: 290 g (0.64 lbs)

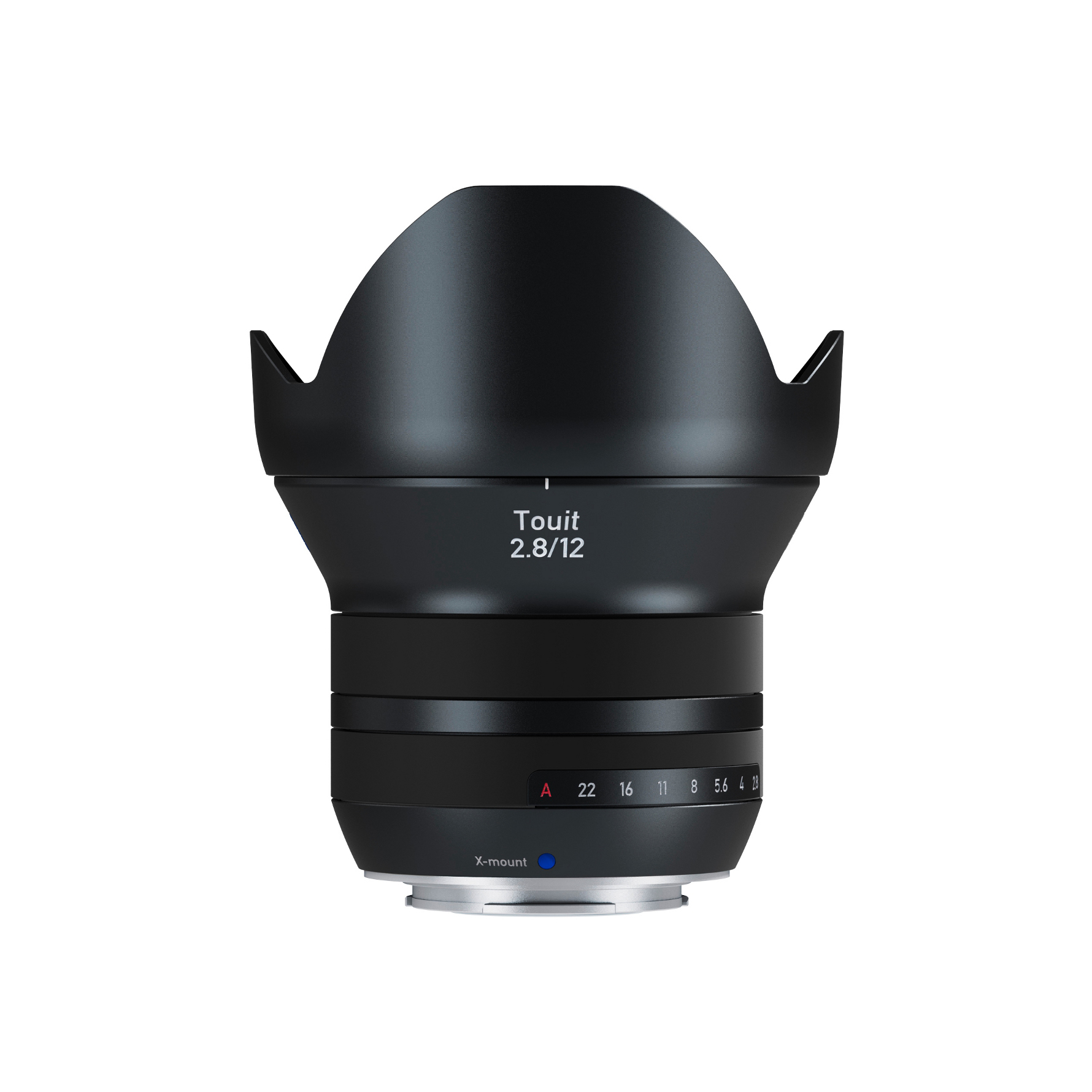

  • Wide-angle ZEISS Touit 2.8/12 camera lens with X-mount, featuring a large lens hood and manual aperture ring.

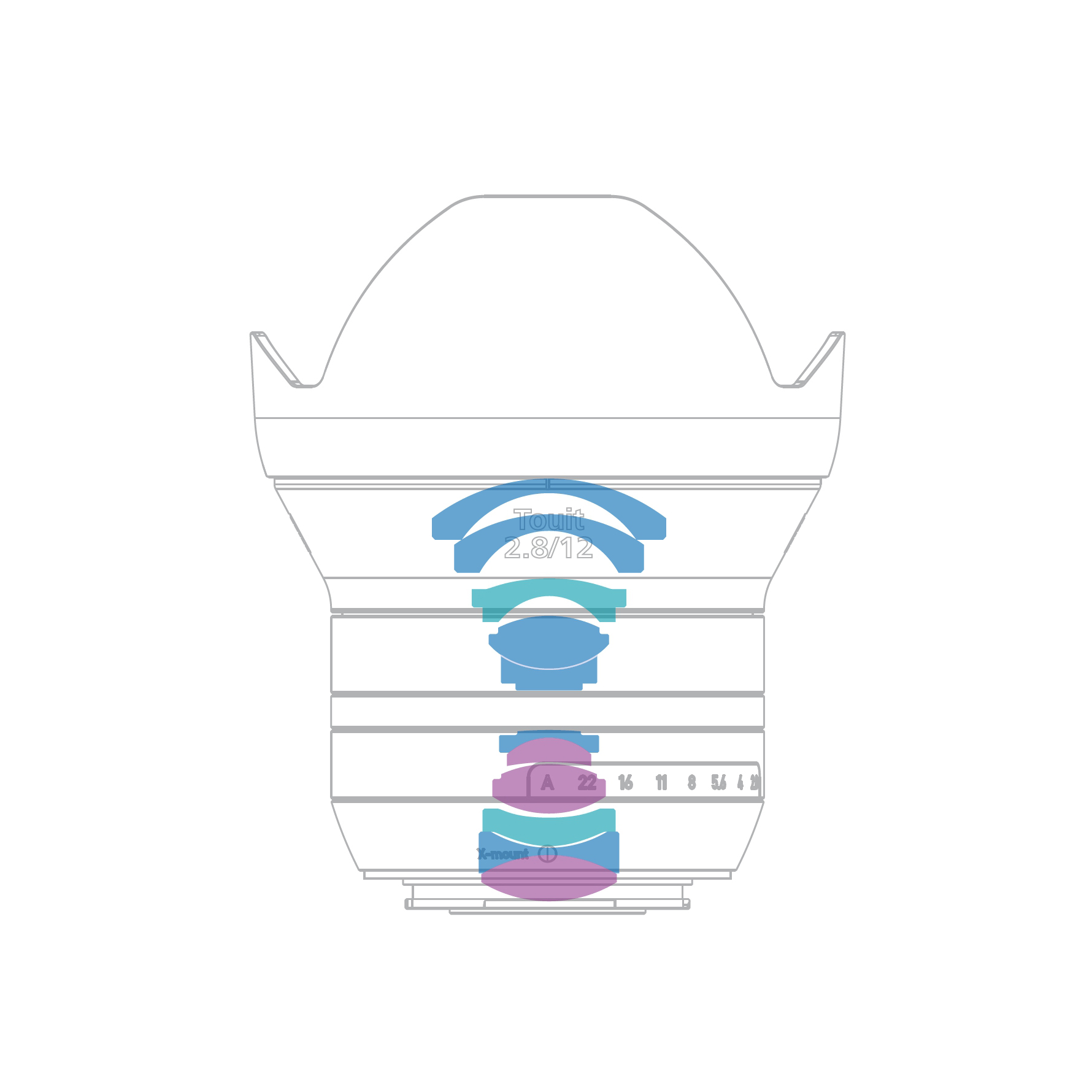

    Cross-sectional illustration of a ZEISS camera lens showing internal optical elements and aperture blades.

    ZEISS Touit 2.8/12

    Originally developed for SLR cameras requiring a long back focal distance for short focal lengths because of the mirror box (the distance between the back lens element and the film plane must be considerably longer than the focal length), the Distagon lenses (retrofocus design) are also ideal for mirrorless system cameras thanks to their optimized ray path. Even with longer focal lengths, the high-performance Distagon optical design enables consistently good correction all the way to the corners of the image and very low field curvature.

    ⬛ Distagon Design

    🟩 Lens with aspheric optical surface

    🟪 Lens made of special glass with anomalous partial dispersion

    ⬛ "Floating elements" design

  • Black ZEISS Touit 1.8/32 camera lens with aperture and focus rings, shown front-facing on a white background.

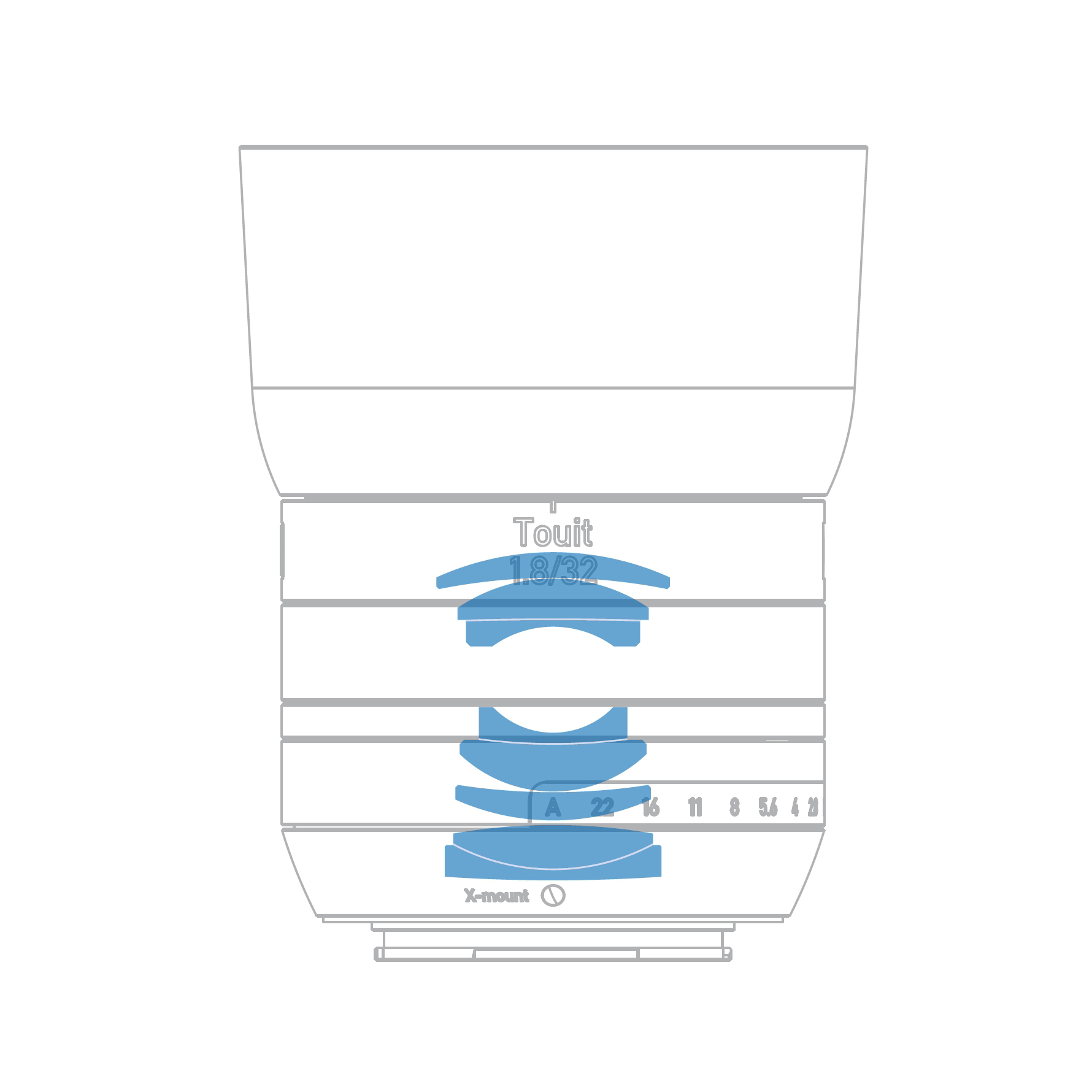

    Technical illustration of a ZEISS Touit lens showing internal optical elements and X-mount compatibility.

    ZEISS Touit 1.8/32

    The Planar lens design is the most successful – and most frequently copied – camera lens design of all time. Modifications to the tried-and-tested six-lens basic type ensure that it achieves the high imaging quality required by modern sensors. Lenses with a Planar optical design enable consistent performance across a large range of image scales – the key requirement for universal macro-lenses.

    ⬛ Planar Design

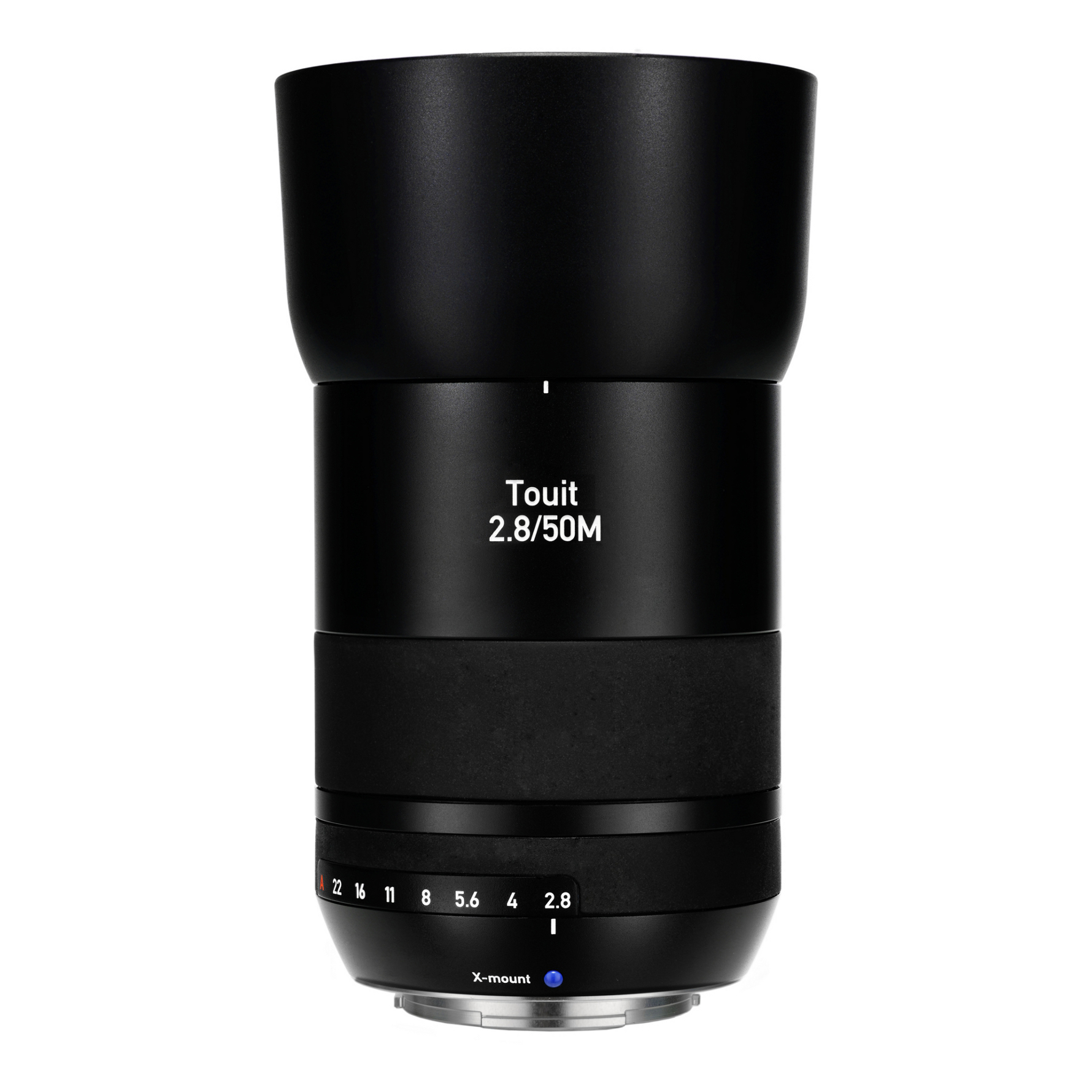

  • ZEISS Touit 2.8/50M camera lens with X-mount, shown in a black matte finish with labeled aperture and focus rings.

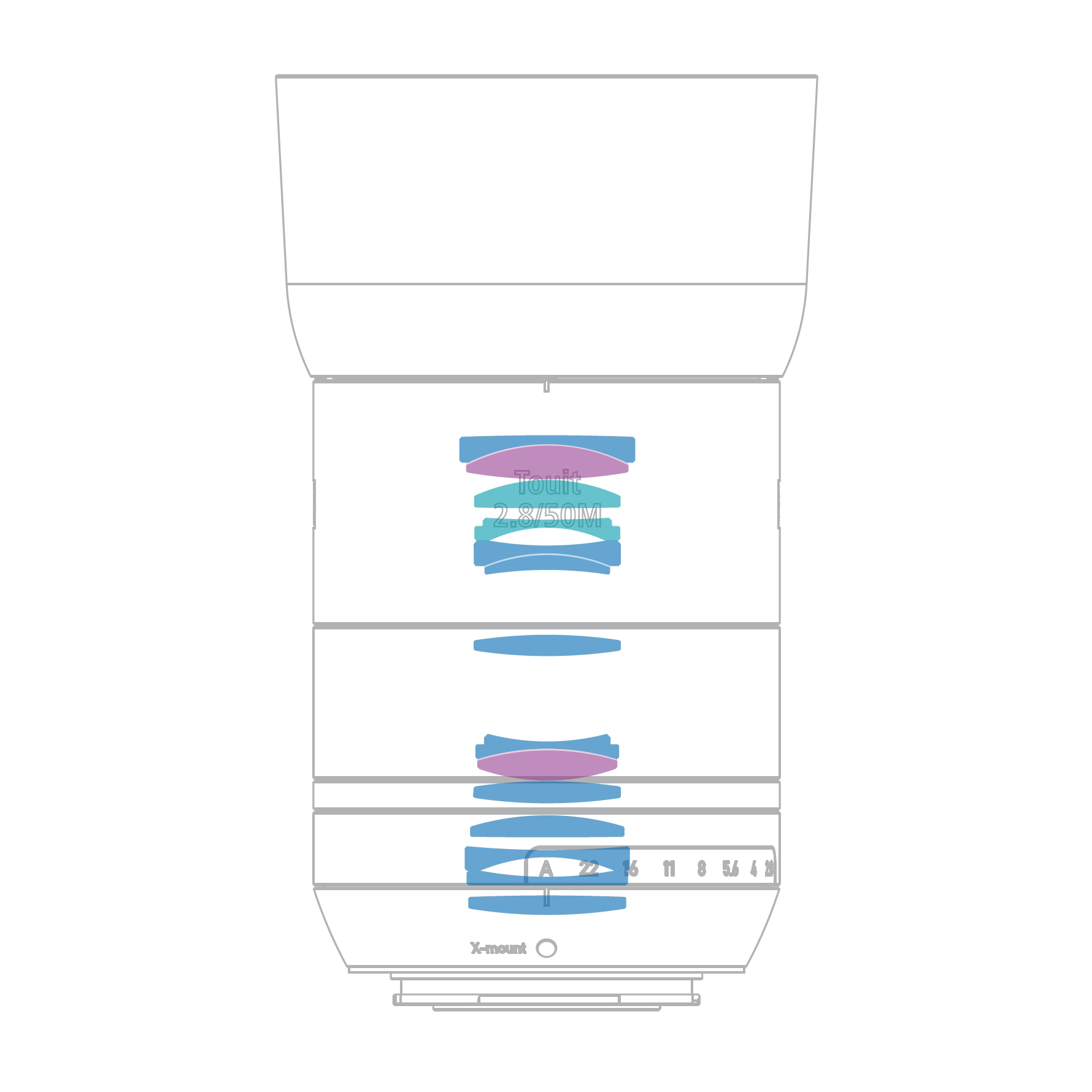

    Cross-sectional diagram of a ZEISS camera lens showing internal optical elements and their arrangement.

    ZEISS Touit 2.8/50M

    The Planar lens design is the most successful – and most frequently copied – camera lens design of all time. Modifications to the tried-and-tested six-lens basic type ensure that it achieves the high imaging quality required by modern sensors. Lenses with a Planar optical design enable consistent performance across a large range of image scales – the key requirement for universal macro-lenses.

    ⬛ Planar Design

    🟩 Lens with aspheric optical surface

    🟪 Lens made of special glass with anomalous partial dispersion

    ⬛ "Floating elements" design

ZEISS camera cleaning kit including a lens cleaning brush, air blower, cleaning spray, microfiber cloths, and a black and blue carrying pouch with ZEISS branding.

ZEISS Photo Lenses Accessories

Tailored to meet your requirements.

When taking pictures, an optimal image is not the only consideration. Capturing that special experience also plays a key role. With their reliable functions, camera lenses from ZEISS ensure that photographers can fully concentrate on the image and composition, and bring their creativity to life. In order to perfect this experience, ZEISS now offers accessories tailored to the requirements of demanding photographers.

Reviews

ZEISS Touit Lenses

ephotozine.com

"Famed for the quality of their lenses for 35mm and medium format cameras, Zeiss has branched out into creating lenses..."

aboutphotography.com

"The traditional method of shooting close-up photographs is with a macro lens mounted on the camera, and, no doubt about it..."

briansmith.com

"The promise of mirror-less cameras is lightweight and compact size compared to their bulkier heavier DSLR brethren..."

fstoppers.com

"Carl Zeiss (Now just named Zeiss) has always been considered the premium brand for lenses in the photography industry..."

diglloyd.com

"It appears that one can get very useful ~15.4mm equivalent field of view on the full frame Sony A7R with the Touit 12mm f/2.8 Distagon..."

thephoblographer.com

"We’re happy to say that the new 50mm f2.8 Touit lens is right now in the house and we’re currently underway with testing it..."

Awards

ZEISS Touit Lenses
    • Award badge showing "DIGITAL PHOTO" and "Practical Photography" with the text "Gear of the Year 2013 Winner" on a black and gold background.

    • Red and white "iF product design award 2013" logo displayed in a square format.

    • Gold 2013 iF Product Design Award logo with the text "product design award 2013 GOLD" on a white background.

    • Red Dot Design Award winner 2013 logo with a red swirl icon and text indicating the award.

    • Award badge from the magazine PHOTOGRAPHIE showing a "Kauf-Tipp" recommendation for issues 1-2 of 2014.

    • Red and white "iF product design award 2013" logo displayed in a square format.

    • Gold 2013 iF Product Design Award logo with the text "product design award 2013 GOLD" on a white background.

    • Red Dot Design Award winner 2013 logo with a red swirl icon and text indicating the award.

    • Award badge from FOTOHITS magazine, issue 9/2014, rating ZEISS fixed focal length lenses for Fujifilm X cameras as "EXZELLENT" in a lens test.

A ZEISS camera lens is displayed next to an uncapped silver fountain pen on a white background.
A ZEISS camera lens is displayed next to an uncapped silver fountain pen on a white background.

Product Registration

Obtain the extended warranty.

ZEISS grants a warranty period of two years from the date of purchase for all its photographic lenses. This may be extended to three years after registering with ZEISS Online Registration. Although the ZEISS extended warranty is already available in numerous countries, claims under warranty may only be made in the country in which the product was purchased.

Register your product
ZEISS Photography

Find a ZEISS dealer

Please type in your address to find a dealer near to your location:

Update your cookie preferences to enable Google Maps.

Your current cookie preferences block this third-party content. Simply agree to track "Functional" technologies in your preferences to see the map.
Finder

Any Questions?

Please contact us, we're looking forward to your message!

Contact

Please don't hesitate to contact us!

+44 (0) 1223 401 500

(Mon - Fri: 8:30 - 17:00 UK Time)
  • 1

    To achieve maximum compatibility on APS-C cameras of the Sony Alpha series with E-Mount (AF in video mode) we highly recommend using the latest Sony firmware.
  • 2

    Sony is a registered trademark of Sony Corporation. Fujifilm is a registered trademark of Fujifilm Corporation.
  • 3

    Based on APS-C format
  • 4

    At close range
