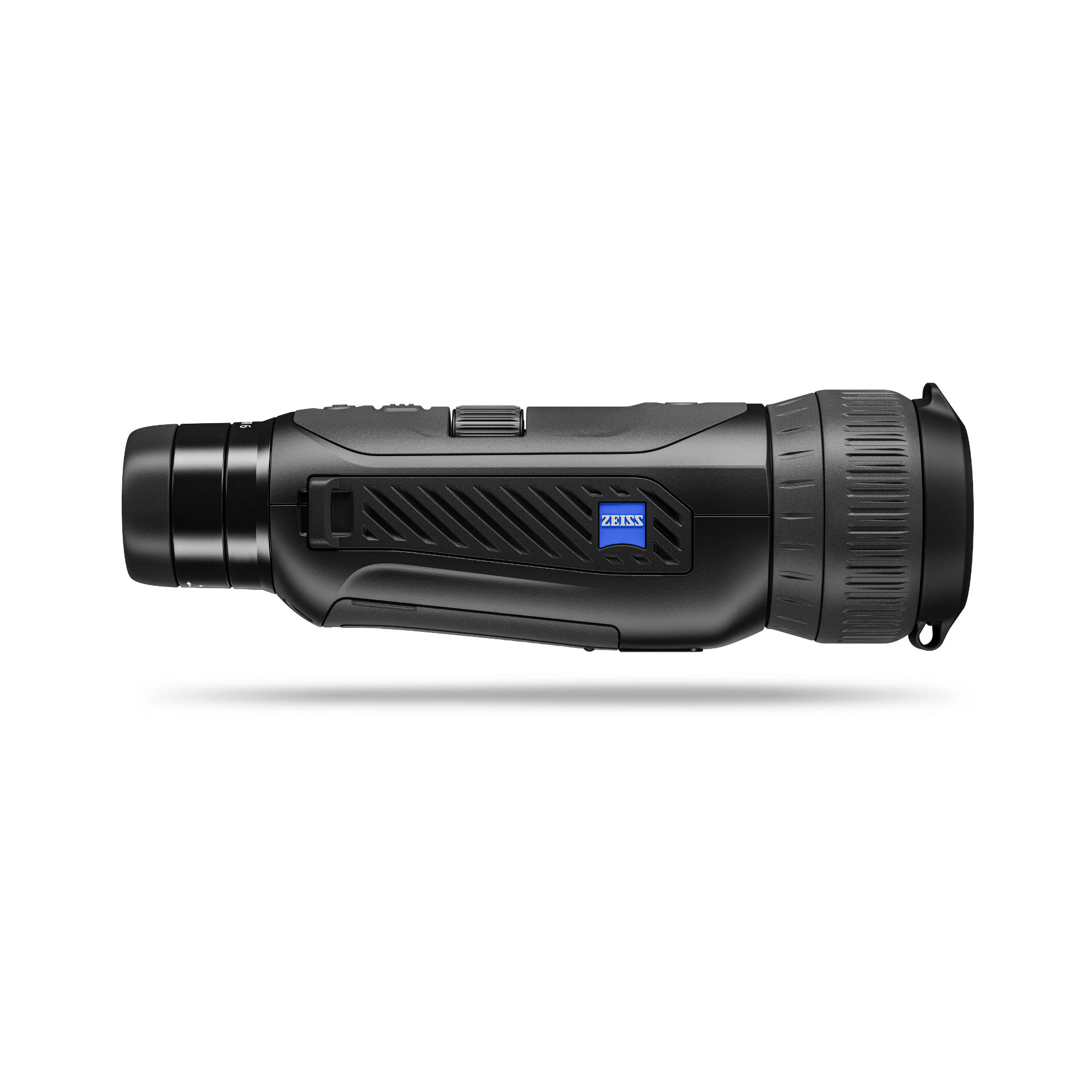

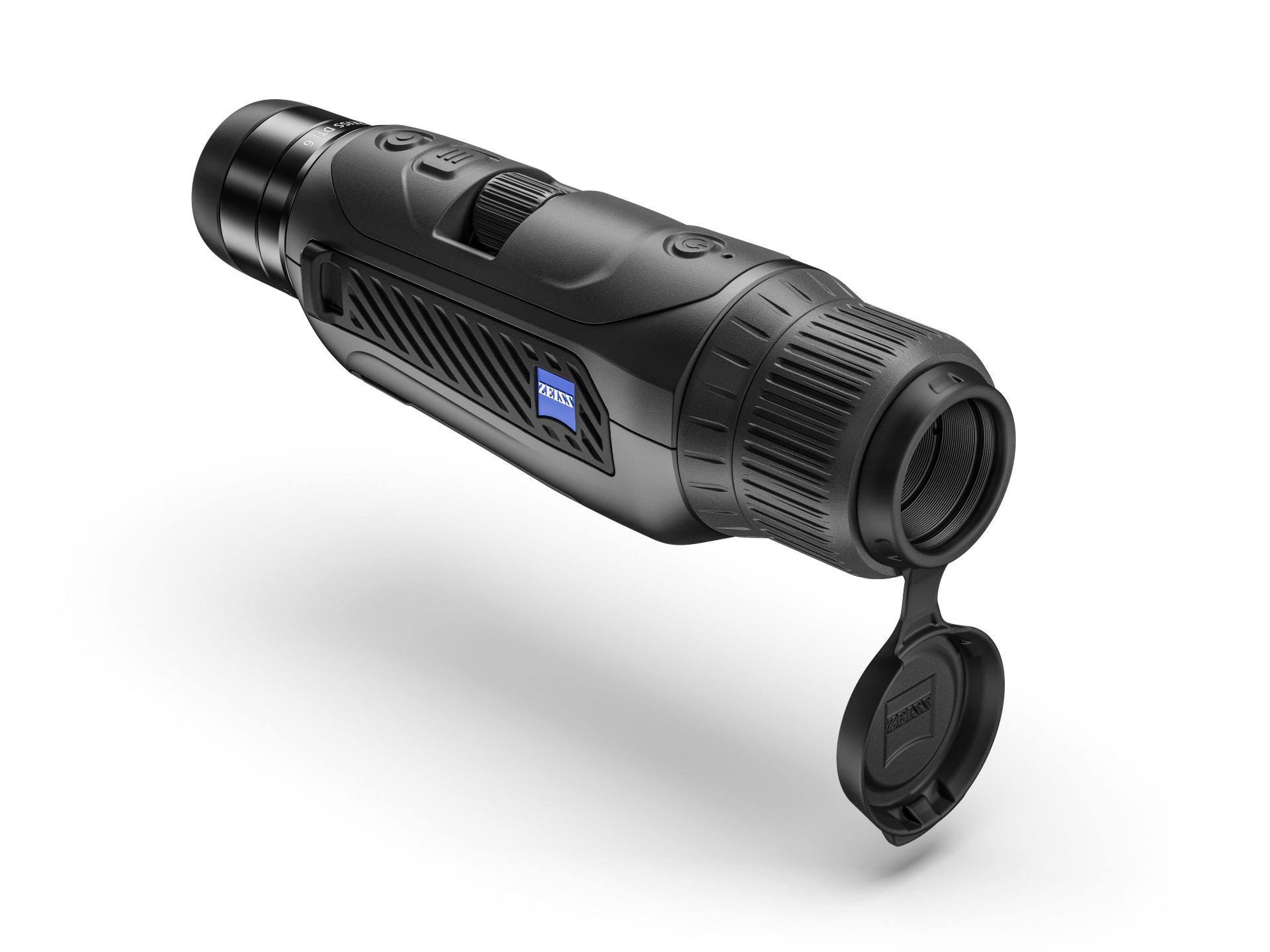

ZEISS DTI 6

When observing birds and other wildlife, every detail counts. With the DTI 6 thermal imaging cameras, you won't miss a thing – no matter if it's day or night. ZEISS' innovative Smart Image Processing (ZSIP Pro) algorithm delivers a sharp, high-contrast thermal image via the 640 x 480 sensor with 12 micron pixel pitch and the 1024 x 768 HD AMOLED display. ZSIP ensures that you can perfectly identify key details under difficult conditions and with low thermal contrast.

The battery supports 6.5 hours of continuous use and can be quickly and easily replaced on the go in order to be able to identify more details at any time.

Available Models

ZEISS DTI 6

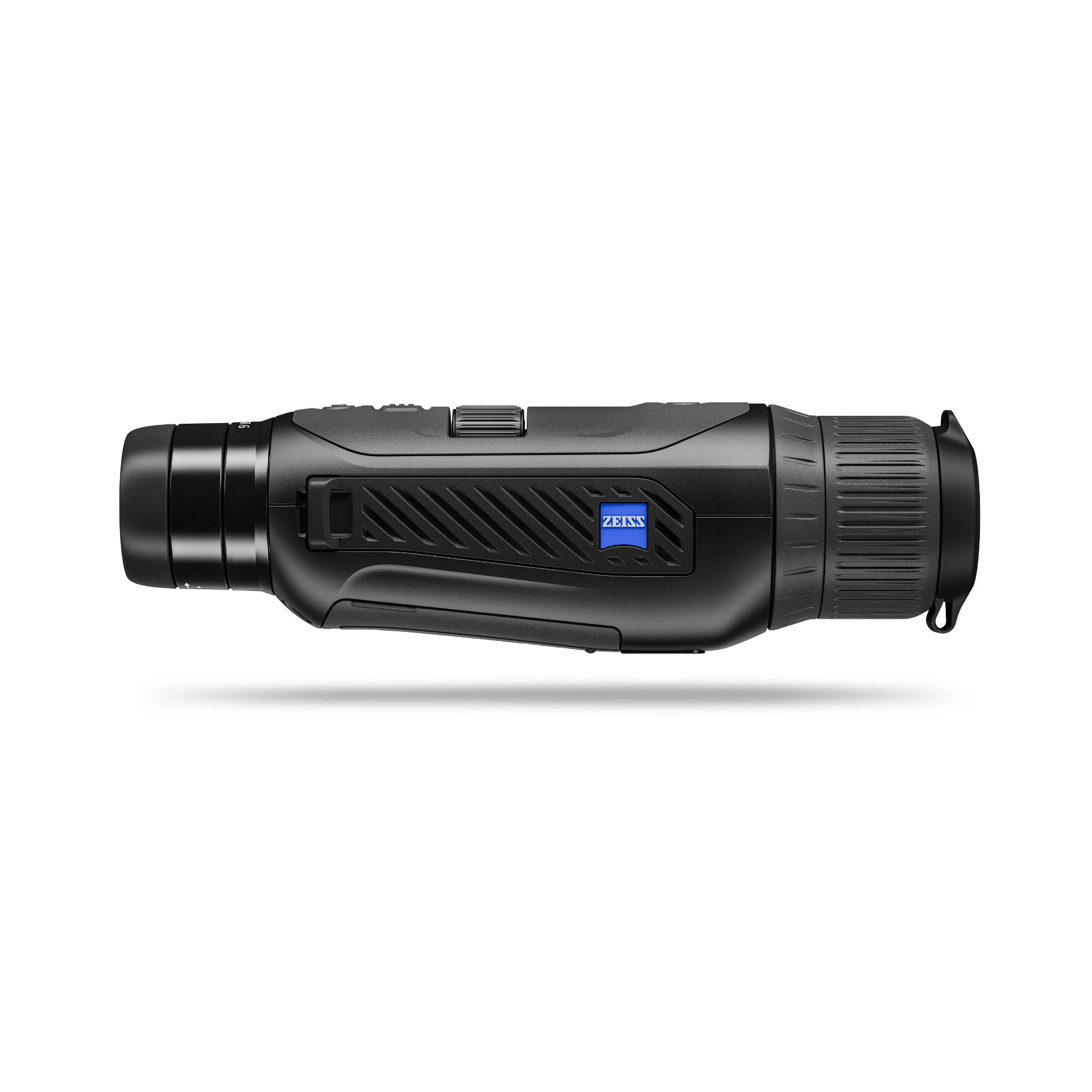

DTI 6/20

Field of View at 100 m (yds):
38 m (114 ft)
Range:
1,000 m (1,093 yd)
Optical Magnification:
1.5 x
DTI 6/40

Field of View at 100 m (yds):
19 m (57 ft)
Range:
2,000 m (2,187 yd)
Optical Magnification:
3.0 x

A woman standing in a grassy field holds a ZEISS spotting scope and looks upwards.

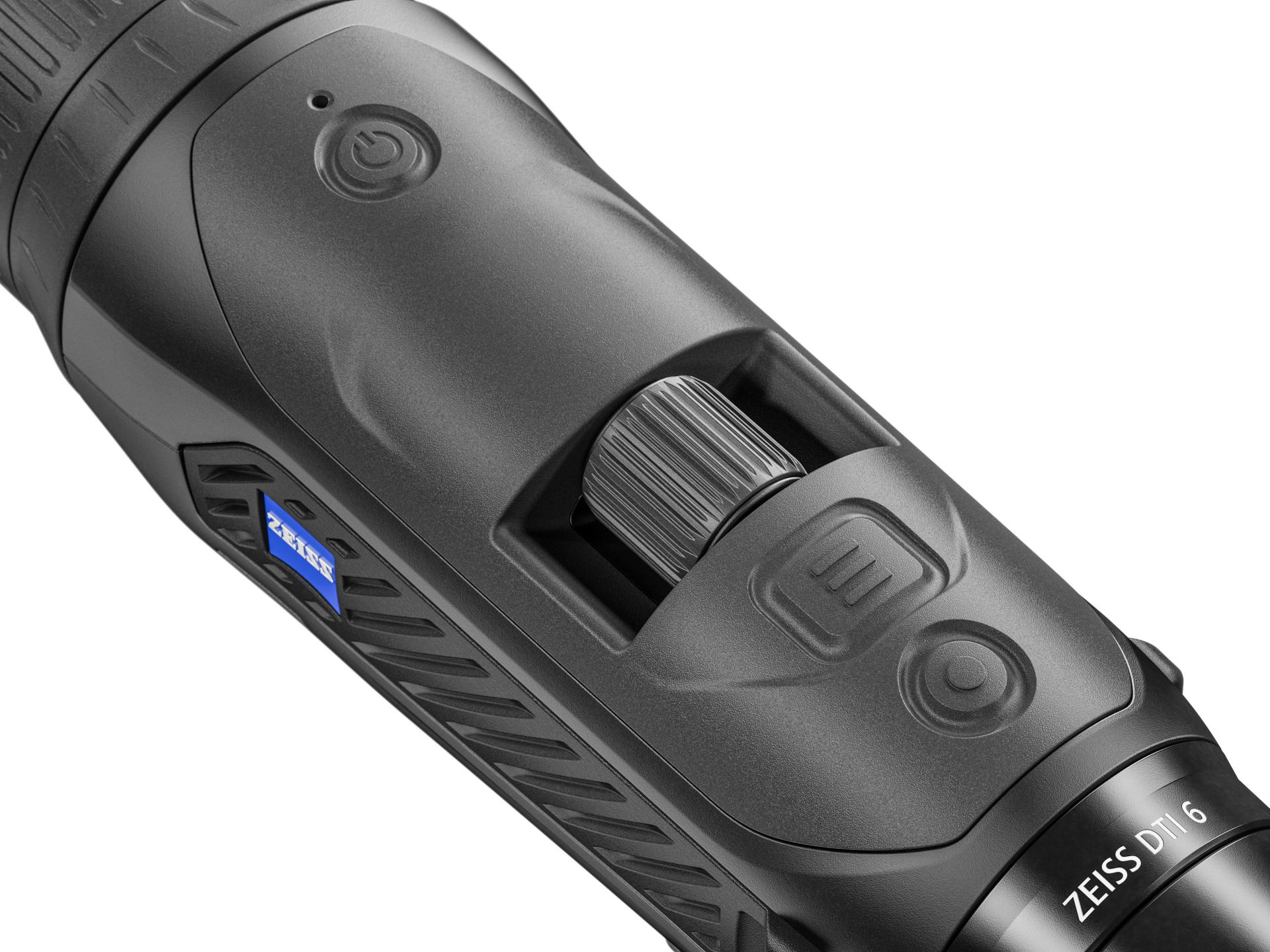

Best-In-Class Operating Ergonomics

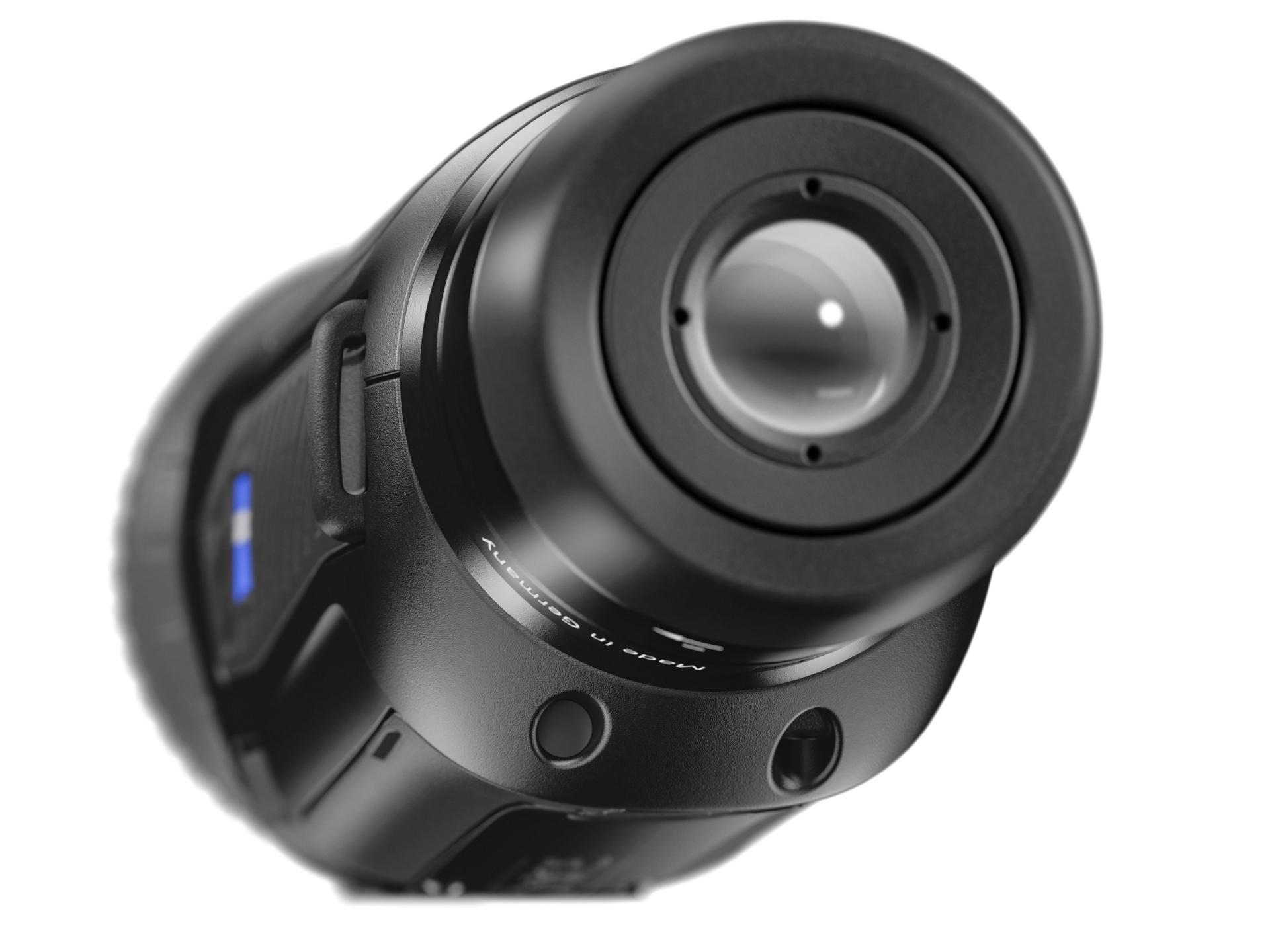

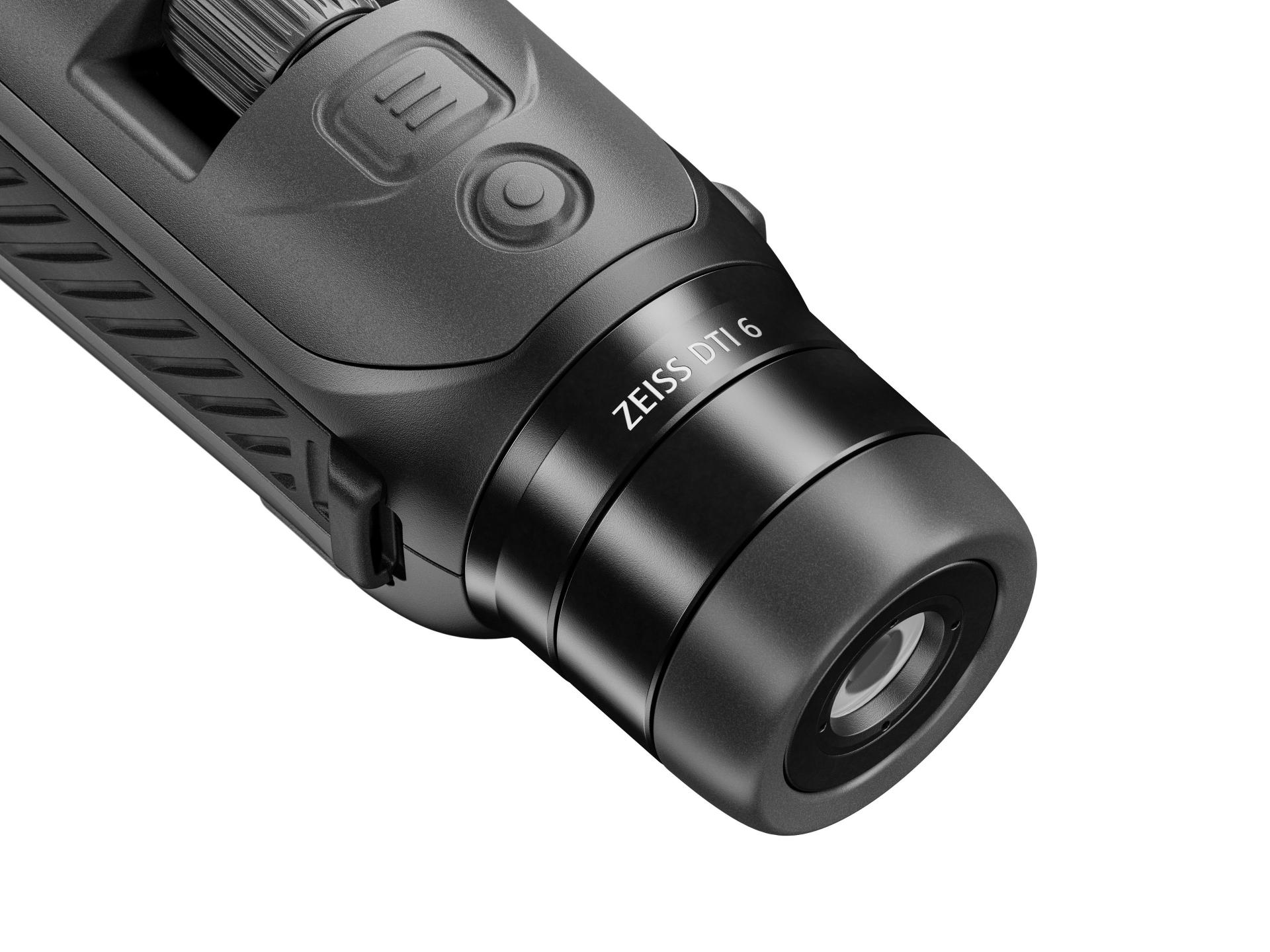

The newly designed scroll wheel allows both left-handed and right-handed users to select zoom levels or menu items quickly and precisely, even in stressful situations and even when wearing gloves. The specially developed eyepiece with a large subjective field of view is shaped like a pair of binoculars. It offers a particularly comfortable and immersive viewing experience and allows the user to fully grasp the situation.

A person inserts a memory card into the slot of a compact ZEISS DTI 6.

Innovative Power Management

The DTI 6's battery allows 6.5 hours of continuous observation and is easily replaceable. It can also be recharged using a standard power bank and thus ensures that the observer never runs out of power. The standby mode is activated contactless – if the DTI 6 is put down or picked up, it switches itself off or on.

Two people standing in a grassy field using ZEISS binoculars to observe something in the sky.

Highly Customizable

Numerous configuration options allow you to customize the thermal imaging camera to make the DTI 6 your very own. From selecting your preferred zoom speed to adjusting the duration of the stand-by timer and the LED configuration to creating your own color palettes, the DTI 6 can be customized to suit your own preferences and specific needs.

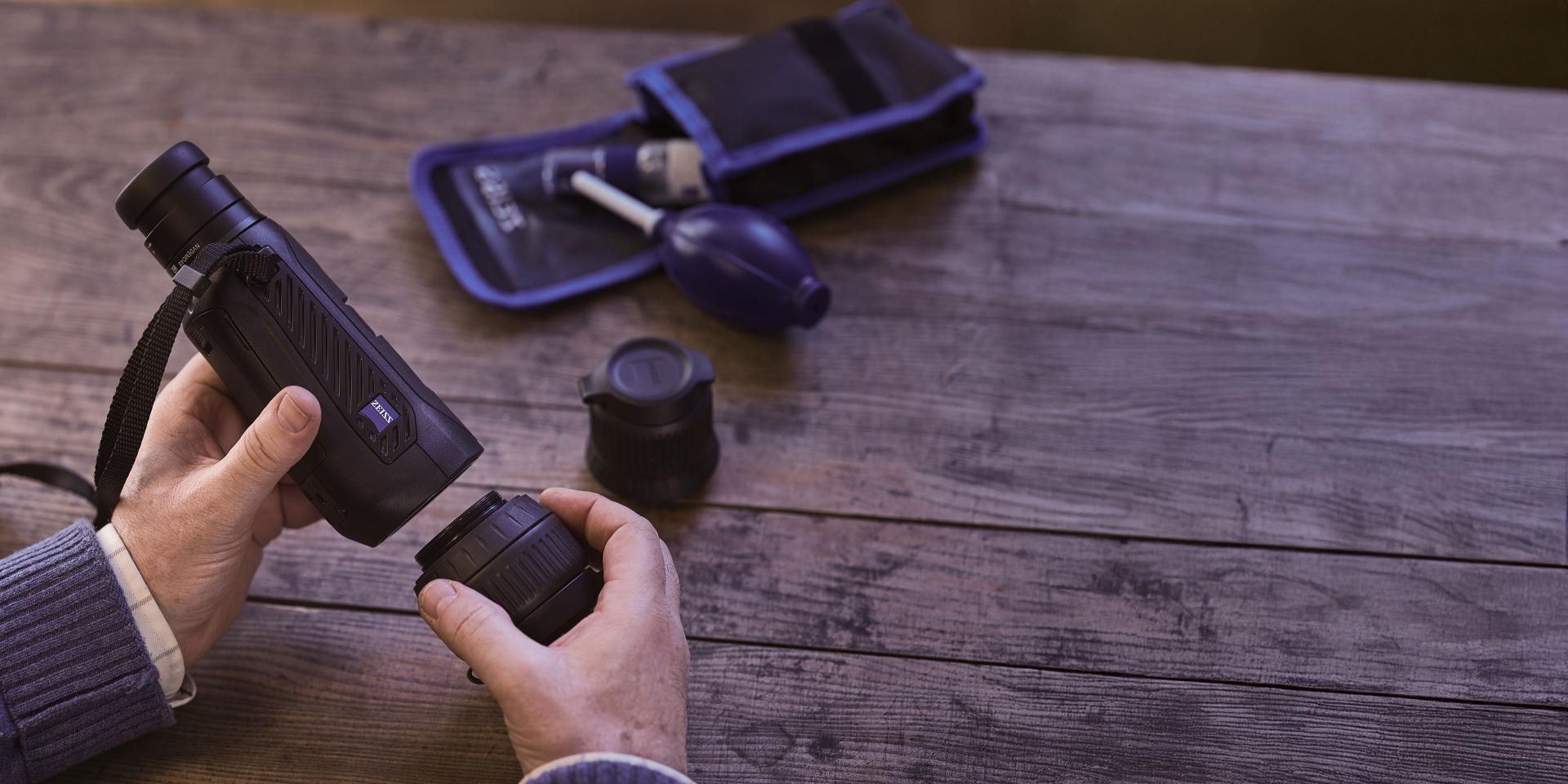

A person is assembling or cleaning a ZEISS monocular device on a wooden table with a ZEISS cleaning kit nearby.

Perfect Image Settings for Every Situation

The DTI 6 can be customized to suit your specific needs. Personal settings can be saved to up to four observation profiles so that you are equipped for any situation. In addition, you can always select exactly the right lens for the current observation situation from two interchangeable lenses in the blink of an eye. In addition, the preset Fog, Universal, Discover, and Identify observation modes help to tailor the view to the respective observation situation.

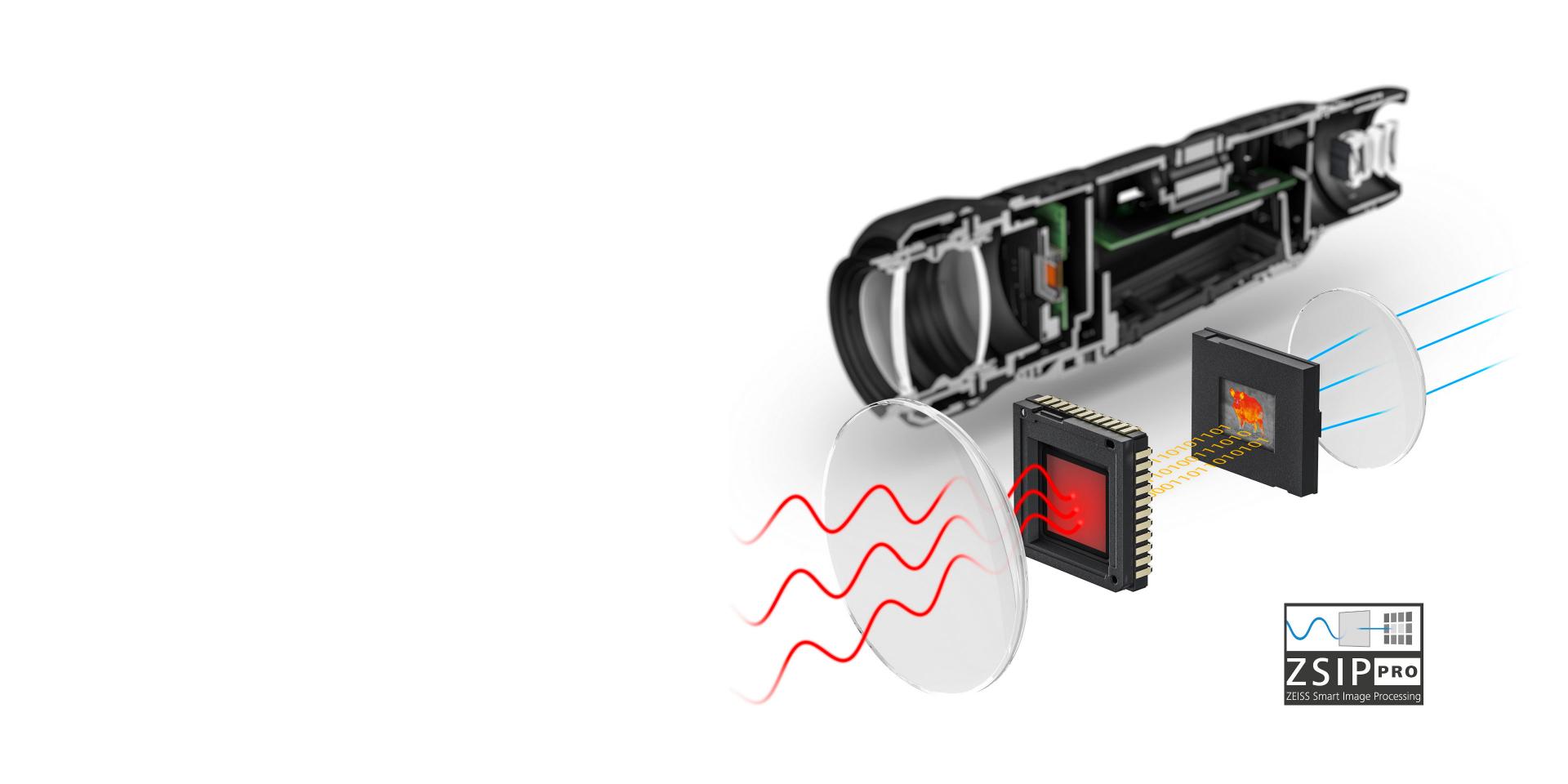

Exceptional Viewing Eperience with ZSIP Pro

The innovative smart image processing algorithm (ZSIP) provides the observer with the ability to detect and identify species reliably. In combination with the 640 x 480 sensor with 12 micron pixel pitch and the 1024 x 768 AMOLED display the ZSIP delivers high-contrast and detailed images. It has been developed by ZEISS in Germany.

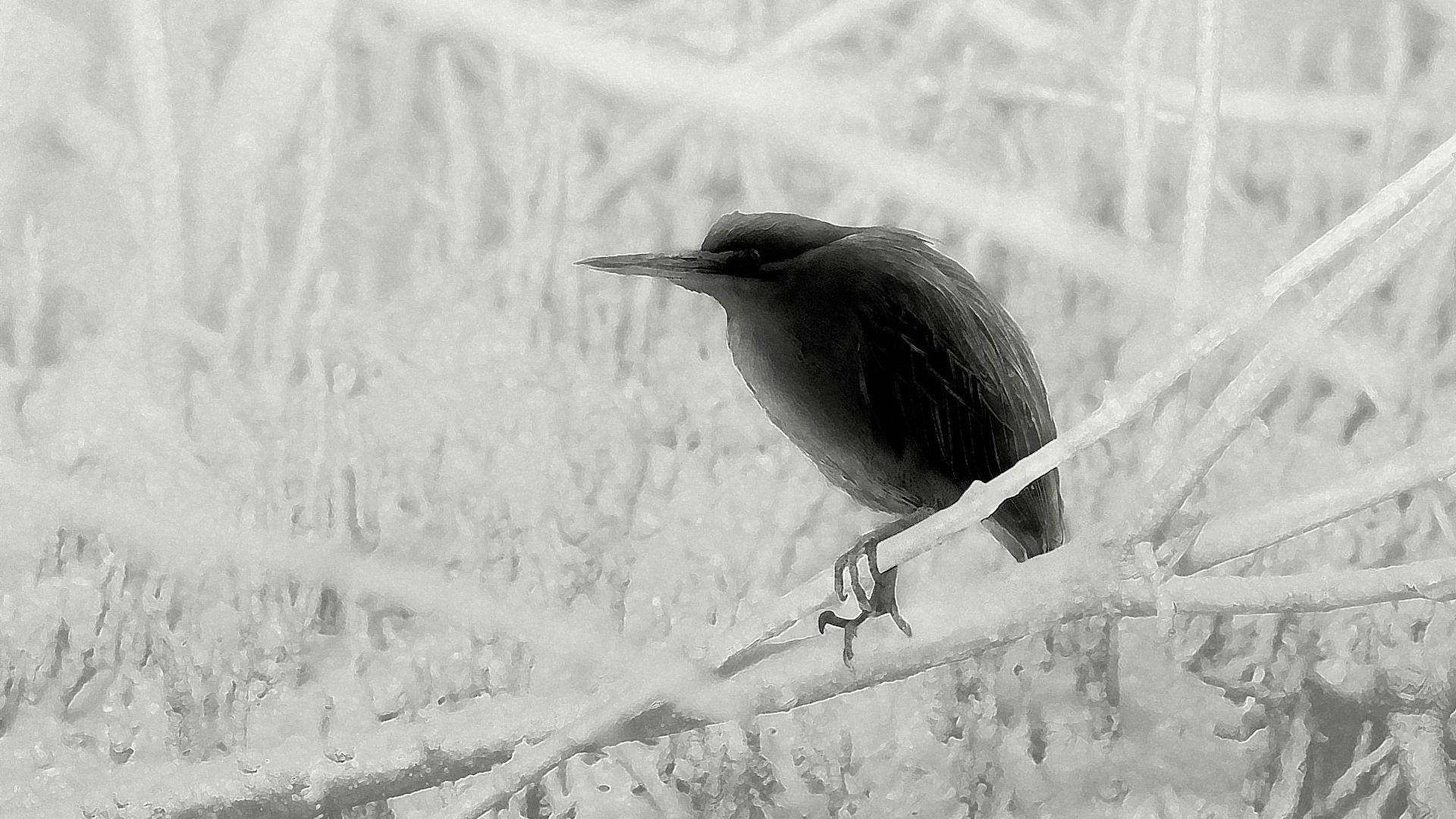

Four Predefined Observation Modes

Different environmental situations require a different instrument setting. The DTI 6 has four pre-programmed observation modes: universal, detect, fog and identification. In identification mode crucial recognition features are amplified. The environment is displayed in less detail to make identification easier.

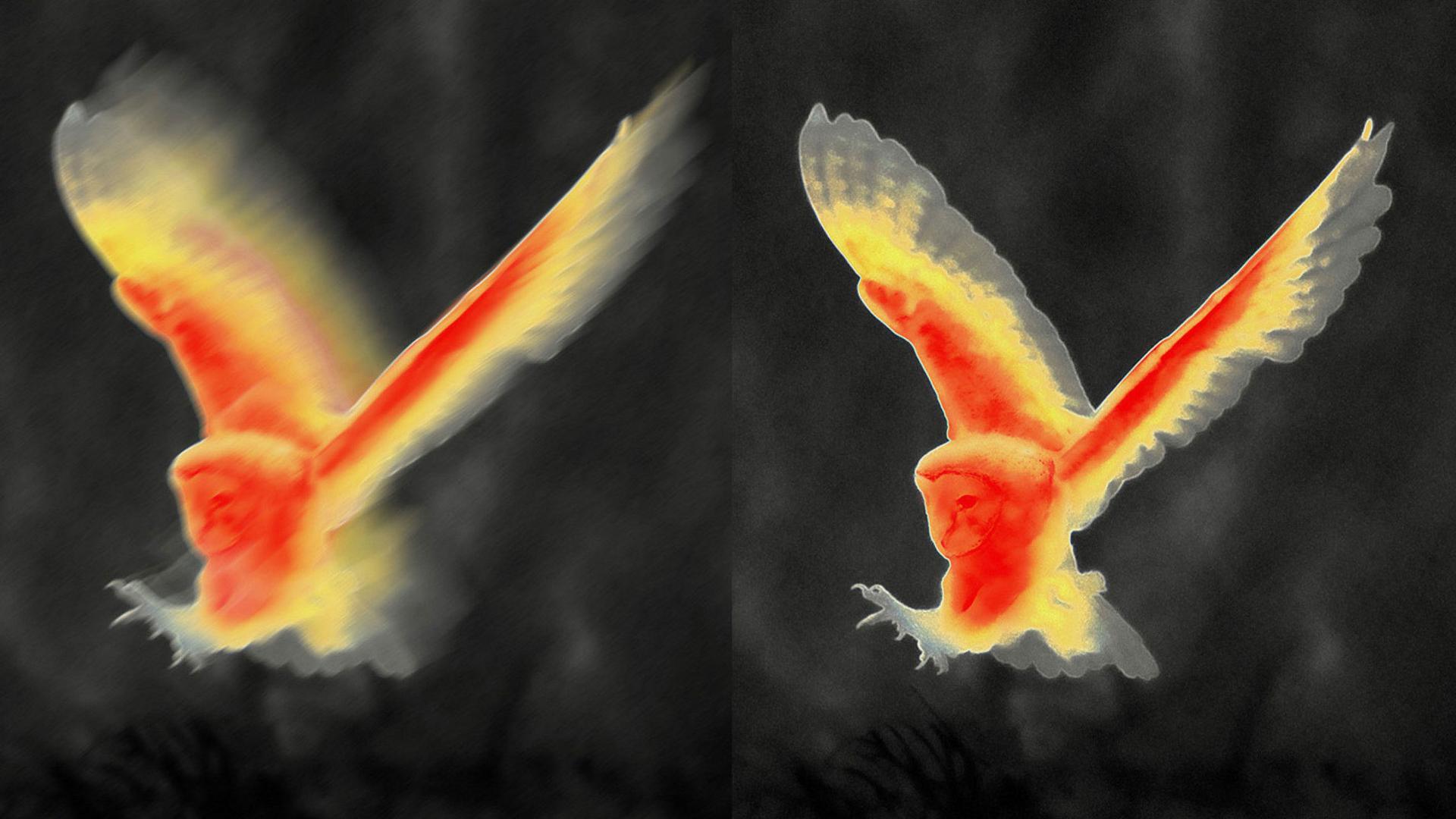

High Frame Rate

The ZEISS DTI cameras featuring a display frame rate of 50 Hz. This refers to the number of times per second your monitor can redraw the screen. A higher display frame rate results in decreased flickering of the image, thereby reducing eye strain when using for several hours at a time.
Customizable Settings

Nature observation can be a very individual activity. When it comes to thermal imaging cameras, every observer has their own personal preferences. Therefore, the DTIs offer the ability to select exactly which color modes are active and which are not, so you only must click through the ones you want to use. The same applies to the zoom level setting. Now you can limit the maximum zoom level to your liking.

Technical Data

ZEISS DTI 6

Focal Length	20 mm
Aperture	F1.0
Range	1,000 m (1,093 yd)
Field of View at 100 m (yds)	38 m (114 ft)
Objective Viewing Angle	22° x 16°
Sensor Resolution	640 x 480
Sensor Pixel Pitch	12 μm
NETD Value	≤ 35 mK
Display Resolution	1024 x 768
Display Frame Rate	50 Hz
Display Type	AMOLED
Optical Magnification	1.5 x
Maximum Digital Zoom	10 x
Zoom Steps	0.1 – 1.0 x
Battery Type	Li-Ion
Battery Run Time	6,5 h
Internal Memory	16 GB
WLAN	2.4 Ghz
Bluetooth	+
Livestream Function (Video & Photo)	+
Compatibility	ZEISS Hunting App \| ≥ Windows 10
Operating Temperature	− 10 °C \| + 50 °C (+ 14 °F \| + 122 °F)
Length x Width x Height	230 x 62 x 68 mm (9.1 x 2.4 x 2.7")
Weight	690 g (1.52 lbs)

Focal Length	40 mm
Aperture	F1.0
Range	2,000 m (2,187 yd)
Field of View at 100 m (yds)	19 m (57 ft)
Objective Viewing Angle	11° x 8°
Sensor Resolution	640 x 480
Sensor Pixel Pitch	12 μm
NETD Value	≤ 35 mK
Display Resolution	1024 x 768
Display Frame Rate	50 Hz
Display Type	AMOLED
Optical Magnification	3.0 x
Maximum Digital Zoom	10 x
Zoom Steps	0.1 – 1.0 x
Battery Type	Li-Ion
Battery Run Time	6,5 h
Internal Memory	16 GB
WLAN	2.4 Ghz
Bluetooth	+
Livestream Function (Video & Photo)	+
Compatibility	ZEISS Hunting App \| ≥ Windows 10
Operating Temperature	− 10 °C \| + 50 °C (+ 14 °F \| + 122 °F)
Length x Width x Height	228 x 69 x 73 mm (8.9 x 2.7 x 2.9")
Weight	755 g (1.66 lbs)

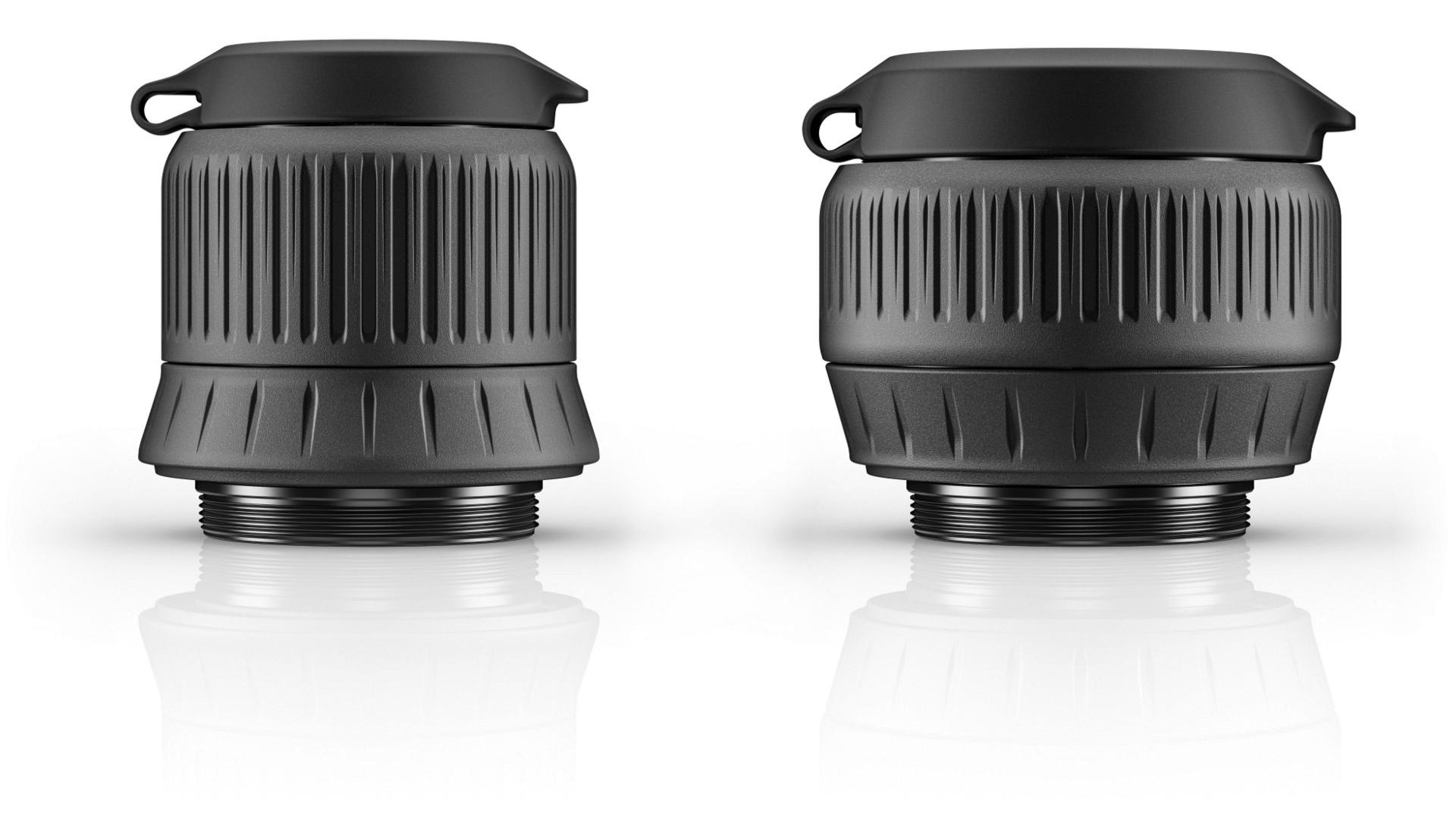

Two black ZEISS lens accessory with ribbed texture and protective cap, displayed on a white reflective surface.

ZEISS Thermal Imaging Devices Accessories

Amplify your experience with exceptional accessories.

These accessories not only enhance the performance and usability of thermal imaging devices but also ensure that users can maximize their investment and achieve the best results in their specific applications.

Show all ZEISS Thermal Imaging Devices Accessories

Instructions

ZEISS DTI 6

7 MB

Download
