ZEISS Thermal Imaging Devices

ZEISS DTI 1

For curious night owls. Light and compact observation.

The ZEISS DTI 1 combines ease of use with low weight – simple and intuitive operation makes the thermal imaging camera the perfect entry-level model.

  • Compact & Lightweight
  • Continuous Transition Zoom
  • Easy to Handle

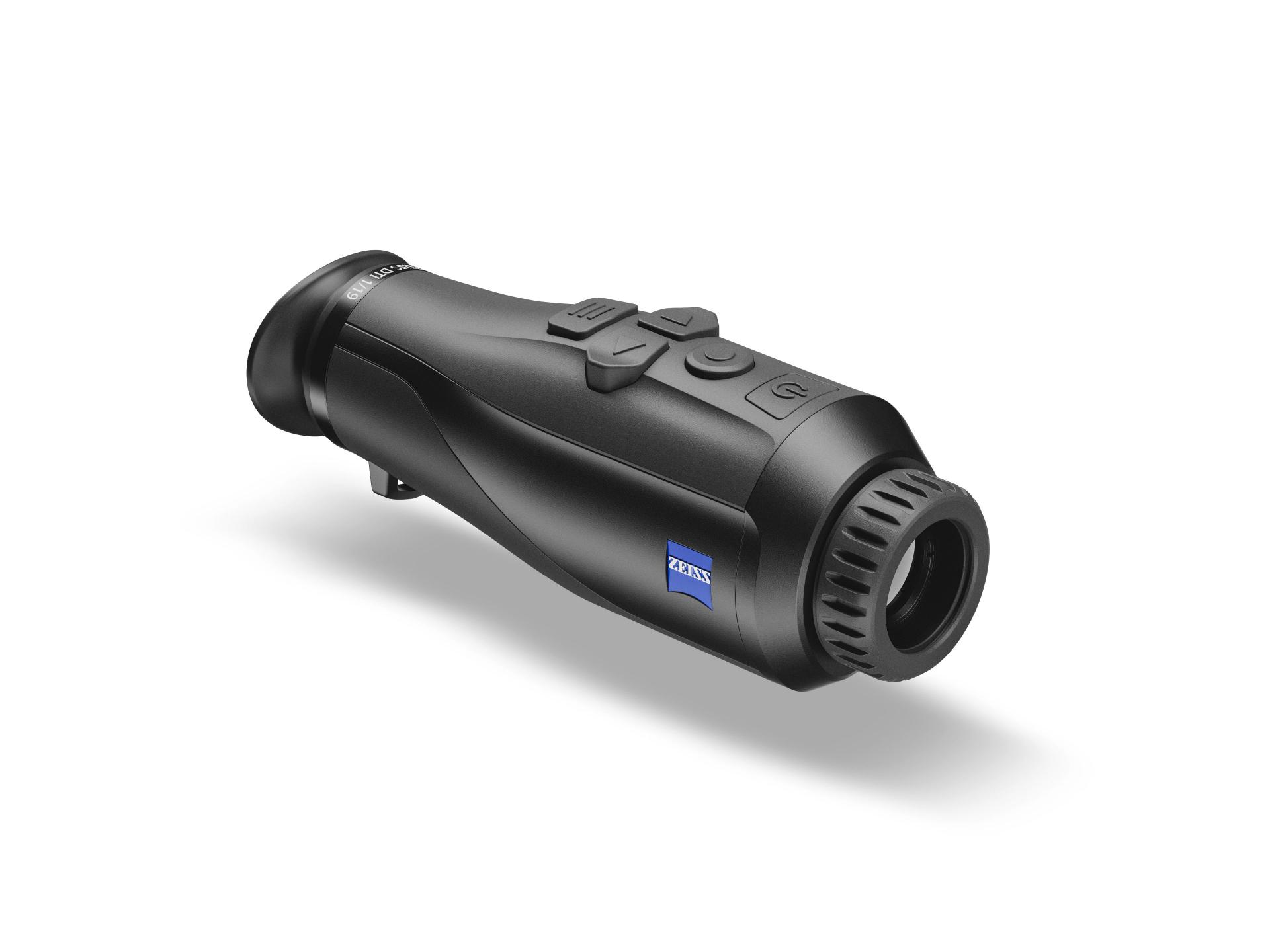

  • Black ZEISS thermal imaging monocular with control buttons on top and a textured eyepiece.
    Black ZEISS thermal imaging monocular with control buttons on top and a textured eyepiece.

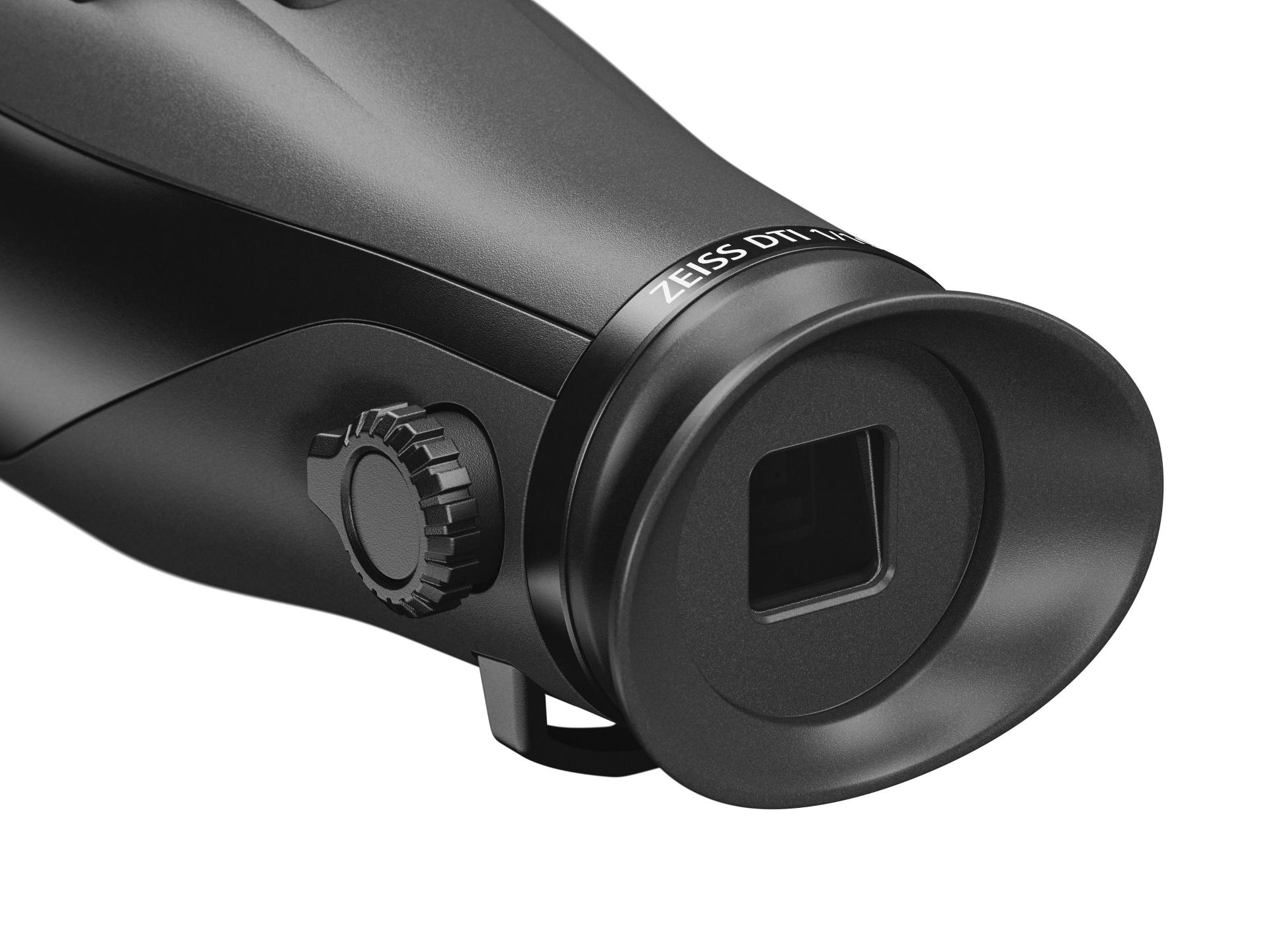

  • Close-up view of the eyepiece and control dial of a ZEISS DTI thermal imaging device in black.
    Close-up view of the eyepiece and control dial of a ZEISS DTI thermal imaging device in black.

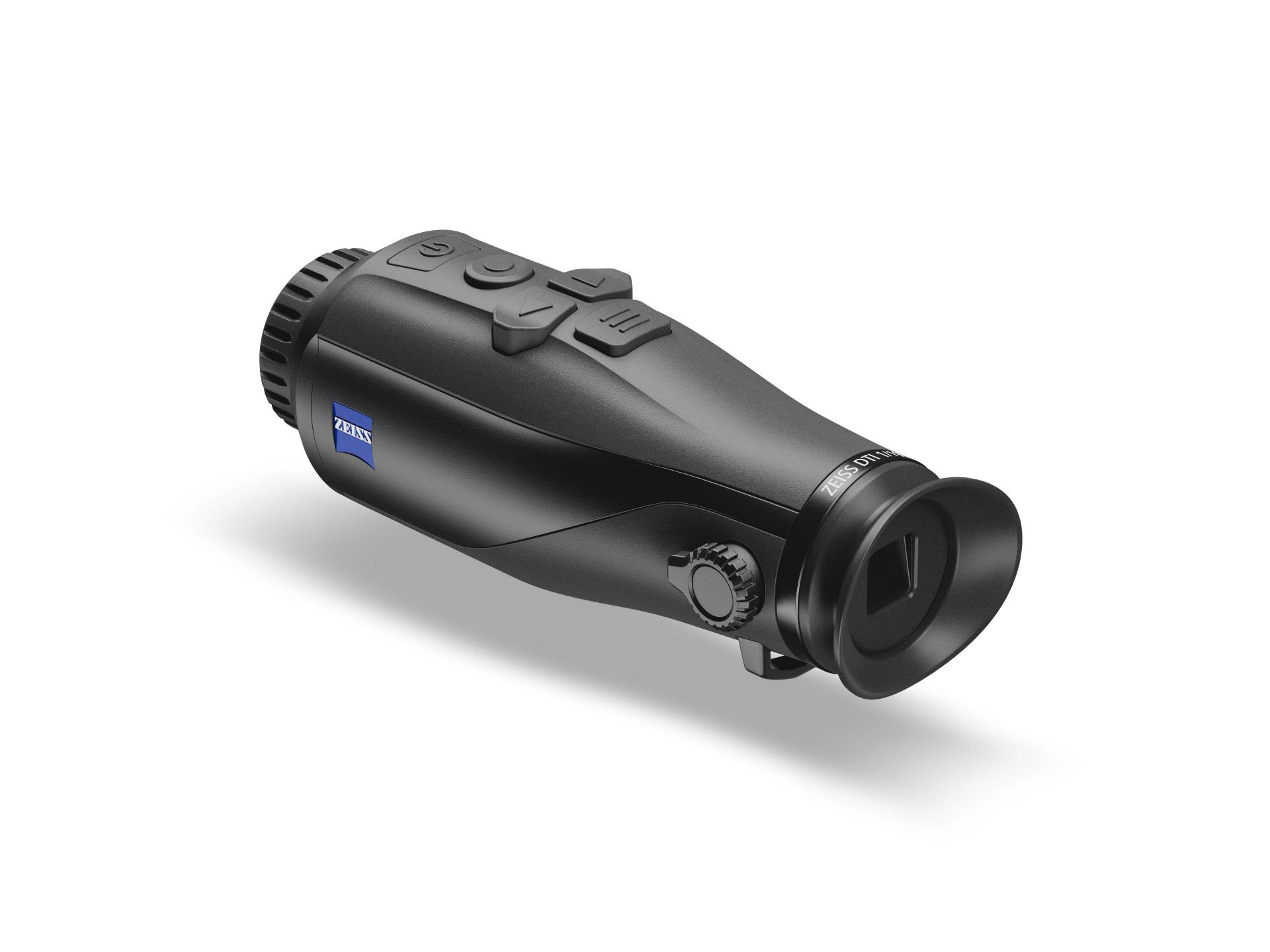

  • Black ZEISS thermal imaging monocular with ergonomic design, multiple control buttons on top, and a ZEISS logo on the side.
    Black ZEISS thermal imaging monocular with ergonomic design, multiple control buttons on top, and a ZEISS logo on the side.
  • Compact black thermal imaging monocular with textured grip, control buttons on top, and ZEISS logo on the side.
    Compact black thermal imaging monocular with textured grip, control buttons on top, and ZEISS logo on the side.
  • Close-up view of a black ZEISS DTI thermal imaging monocular showing the eyepiece, adjustment dial, and part of the device body.
    Close-up view of a black ZEISS DTI thermal imaging monocular showing the eyepiece, adjustment dial, and part of the device body.
  • Compact handheld thermal imaging monocular in black with control buttons on top and ZEISS logo on the side.

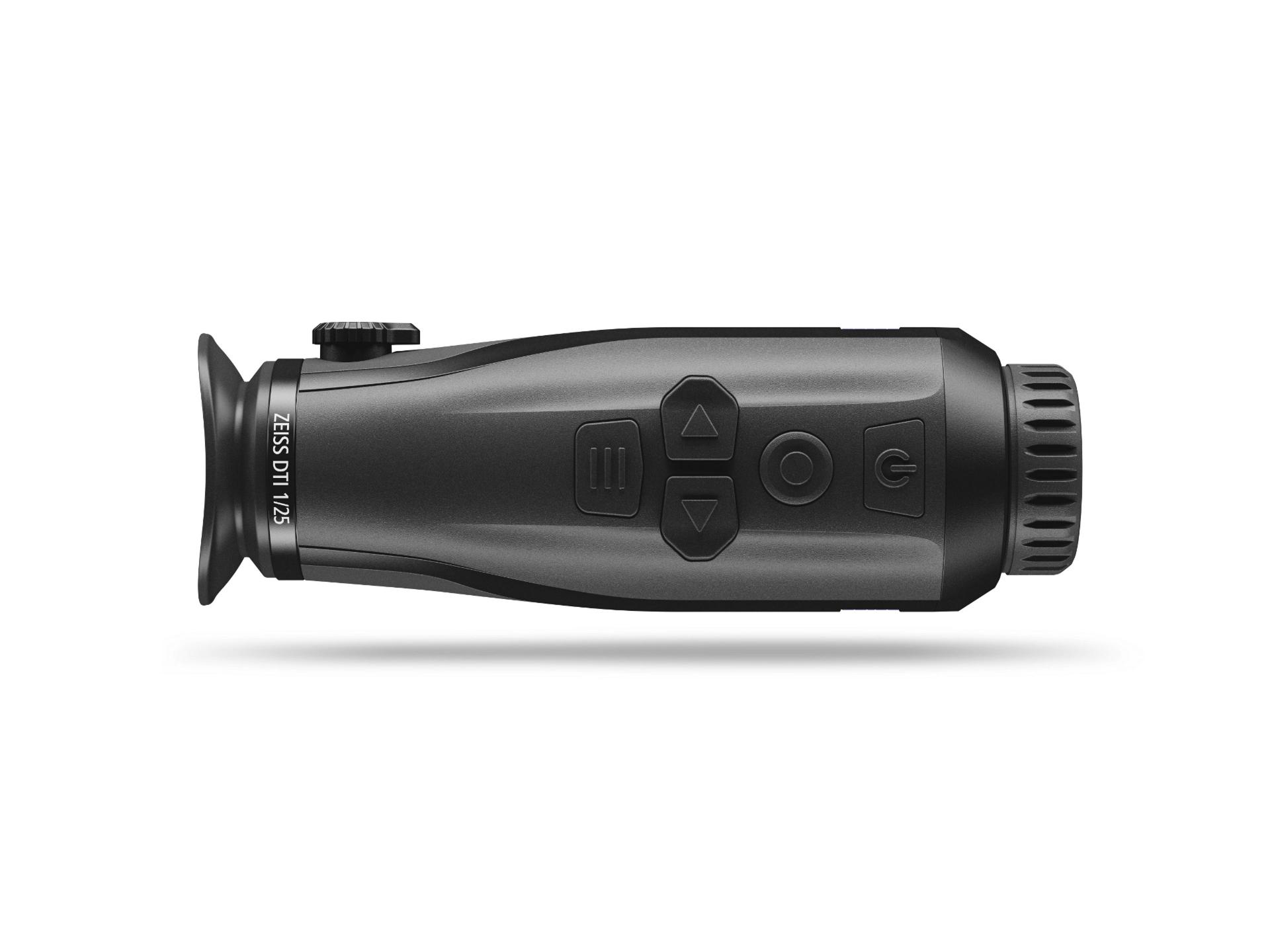

  • Side view of a black ZEISS thermal imaging monocular with visible control buttons and branded eyepiece.

The ZEISS DTI 1 offers excellent value for those seeking a lightweight and compact companion. It combines ease of use with a compact design and is agile, handy and reliable at the same time. Its simple and intuitive operation makes it the ideal choice for enthusiastic observers who are curious about new experiences.

Available Models

ZEISS DTI 1

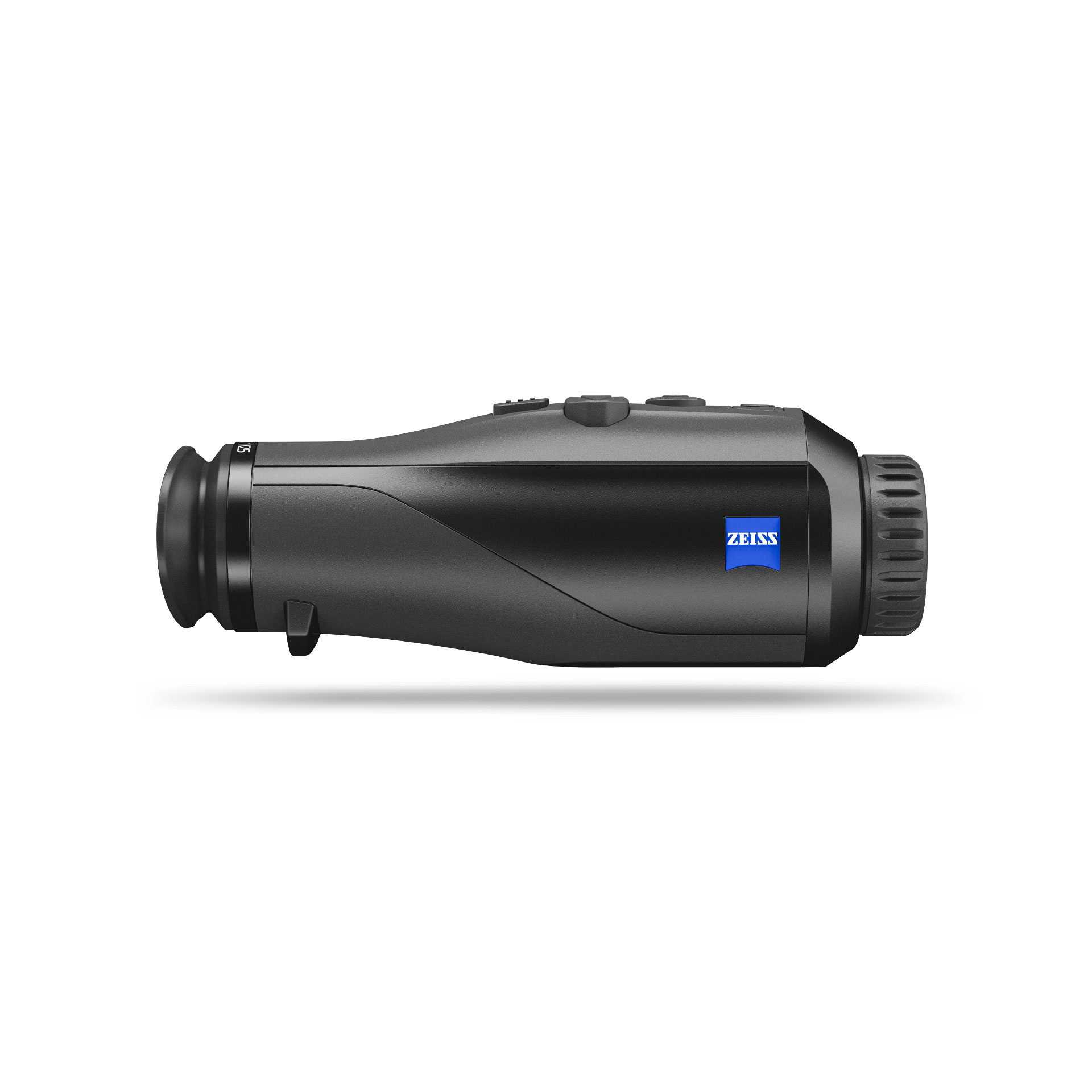

  • Side view of a black ZEISS thermal imaging monocular with control buttons on top and the ZEISS logo on the side.
    DTI 1/19

    Field of View at 100 m (yds):
    24 m (73 ft)
    Objective Viewing Angle:
    14° x 10°
    Range:
    1,000 m (1,093 yd)
  • Side view of a black ZEISS monocular optical device featuring the ZEISS logo and control buttons on top.
    DTI 1/25

    Field of View at 100 m (yds):
    18 m (55 ft)
    Objective Viewing Angle:
    11° x 8°
    Range:
    1,320 m (1,443 yd)
A man is observing through ZEISS binoculars in a forested area surrounded by green foliage.

ZEISS Quality at an Entry-level Price

The ZEISS DTI 1 combines easy handling with low weight: simple and intuitive operation makes the thermal imaging camera the perfect entry-level model into the world of thermal imaging allowing you to enhance your nature expiernece – for more discoveries at night and during the day.

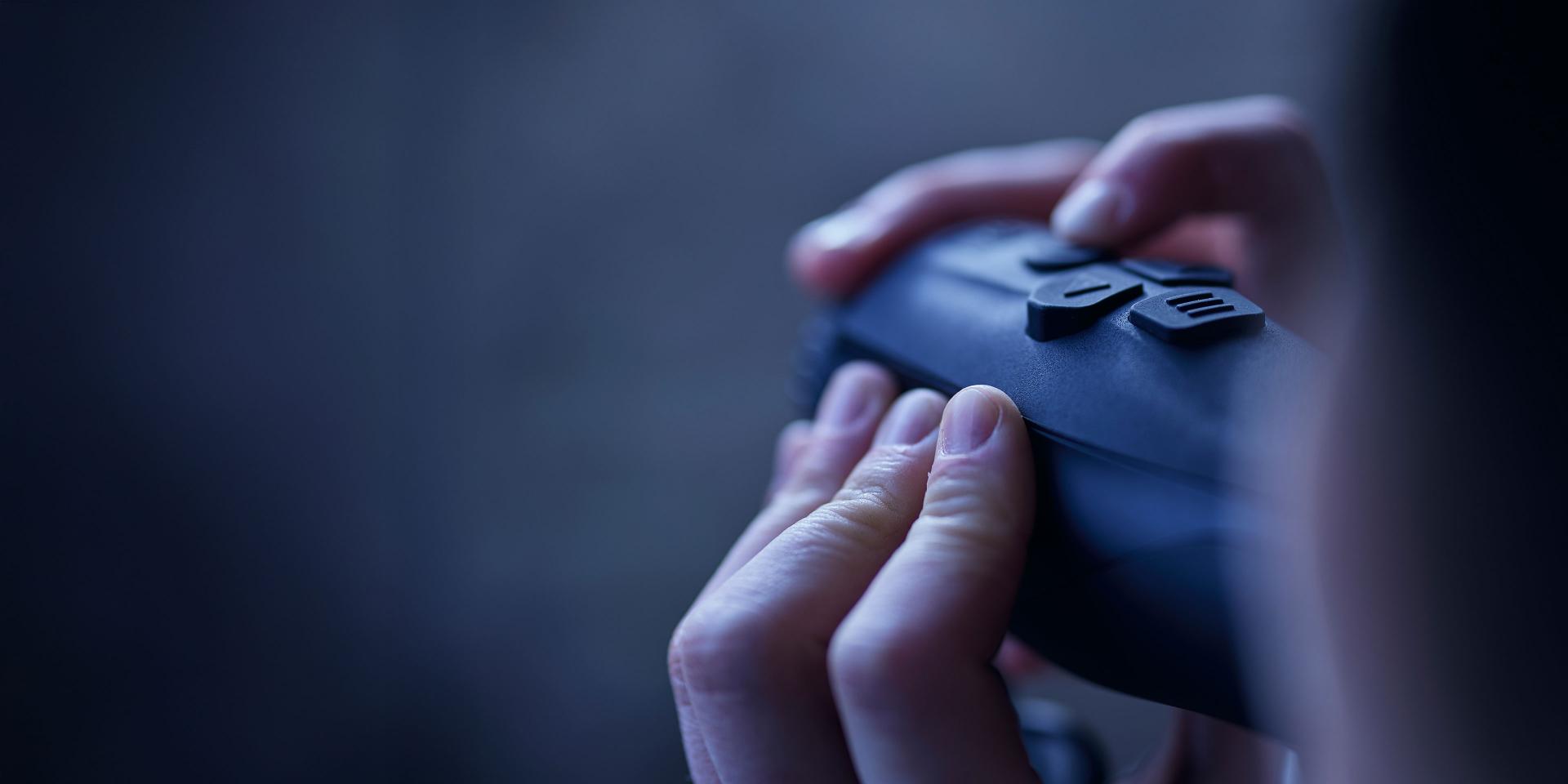

Close-up of a person’s hands operating a ZEISS device with control buttons.

Easy Operation

The optimized shape of the housing makes the grip ergonomic and operation intuitive for both right-handed and left-handed users. The intelligent button arrangement and its optimized shape makes controlling the device intuitive.

A man surrounded by dense foliage looks through a ZEISS monocular while observing nature.

Transition Zoom

Especially when viewing a swarm of birds, it is easy to lose sight of the animal being viewed when jumping the zoom level. Observe your target in 4x magnification, uninterrupted, and without jerkiness – the Transition Zoom allows you to keep a constant eye on the bird you are observing.

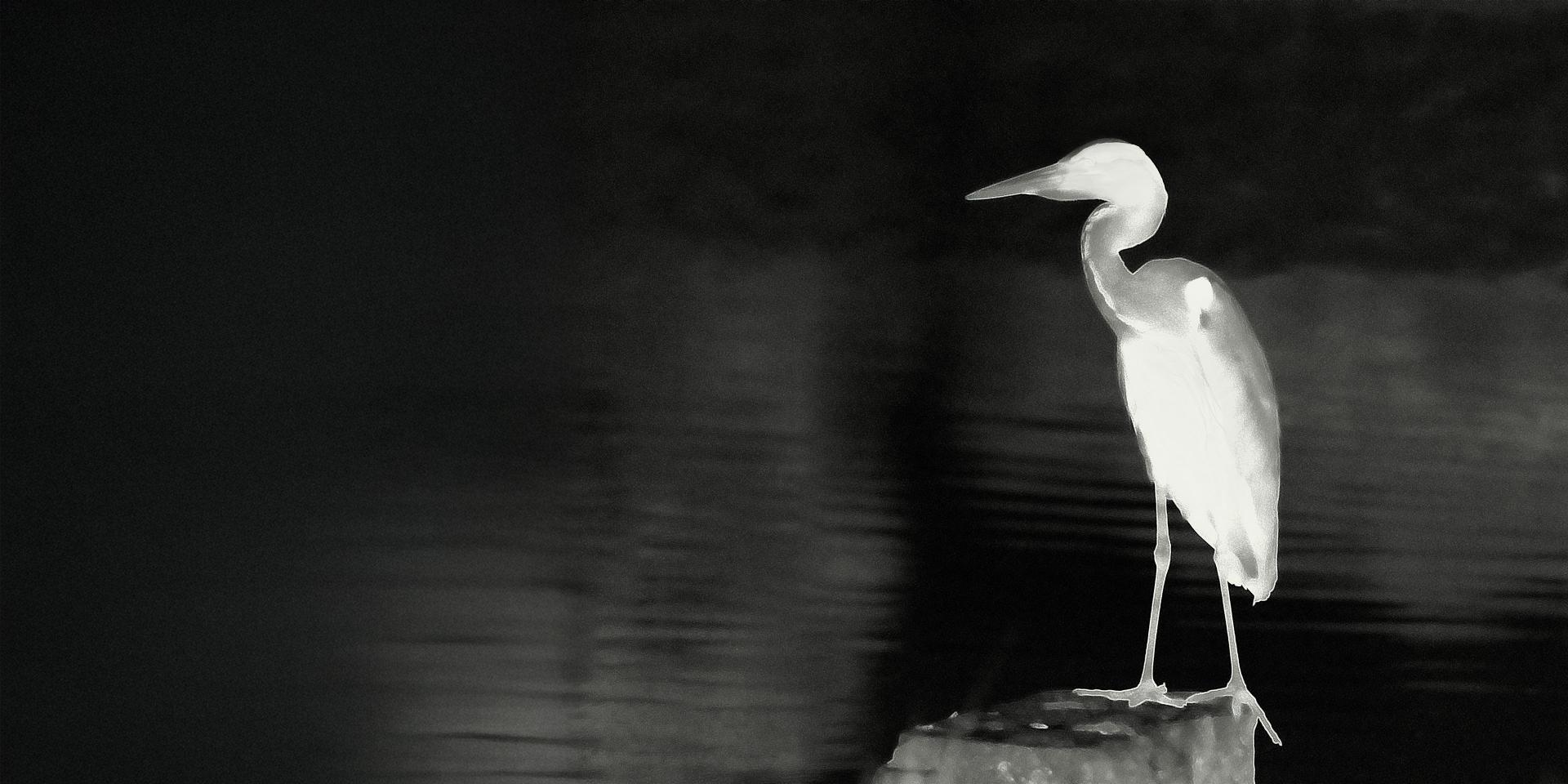

Thermal image of a heron standing on a rock by the water at night, captured in high contrast detail using ZEISS technology.

Three Observation Modes for Every Situation

Different environmental situations require a different instrument setting. The DTI 1 has three pre-programmed observation modes: universal, detect and fog. Detection mode, for example, highlights heat sources even more while reducing the cold background. This allows you to see animals behind trees and bushes better than before.

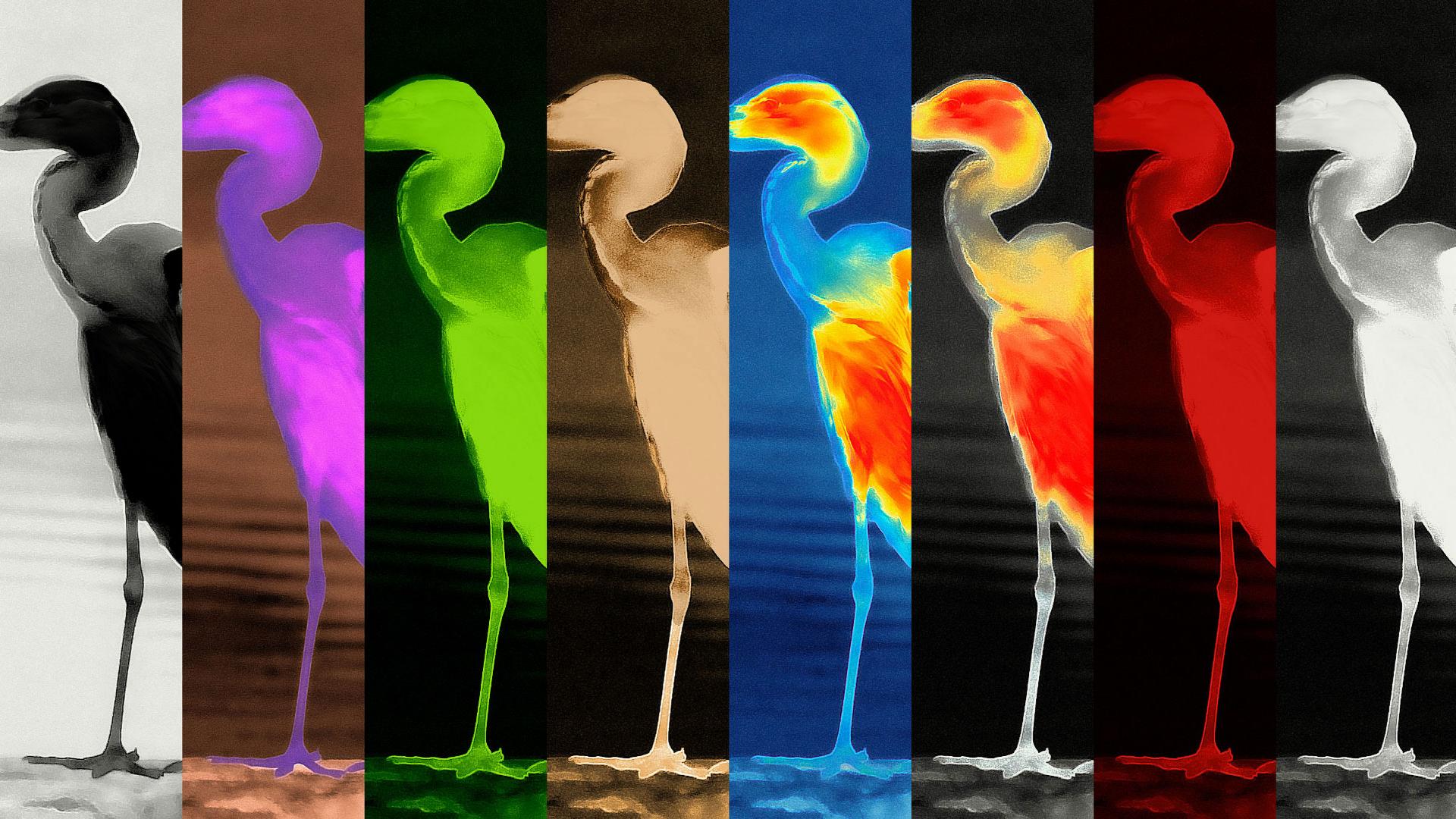

  • A heron is shown in eight vertical panels, each representing a different imaging or color filter effect, illustrating advanced visual technologies.

    8 Different Color Modes

    ZEISS thermal imaging cameras offer eight different color modes, so you can choose the setting that best fits your needs. "Black hot" and "white hot" deliver images with a high level of contrast. When observing in areas with vast vegetation, "red hot" allows for a fast detection of heat sources. The color mode "rainbow" is ideal for identifying the smallest differences in temperature. In addition, four color modes have been redesigned to reduce the glare of the screen in a dark environment and reduce eye strain. "Red Hue" mode more easily adjusts your eyes to the darkness. "Dark Hue" is easier on your eyes by using low luminescence colors. "Green Hue" shows plenty of detail at low screen brightness, and "Night Eye" highlights the warmest areas of the thermal image in a pleasant sepia tone.

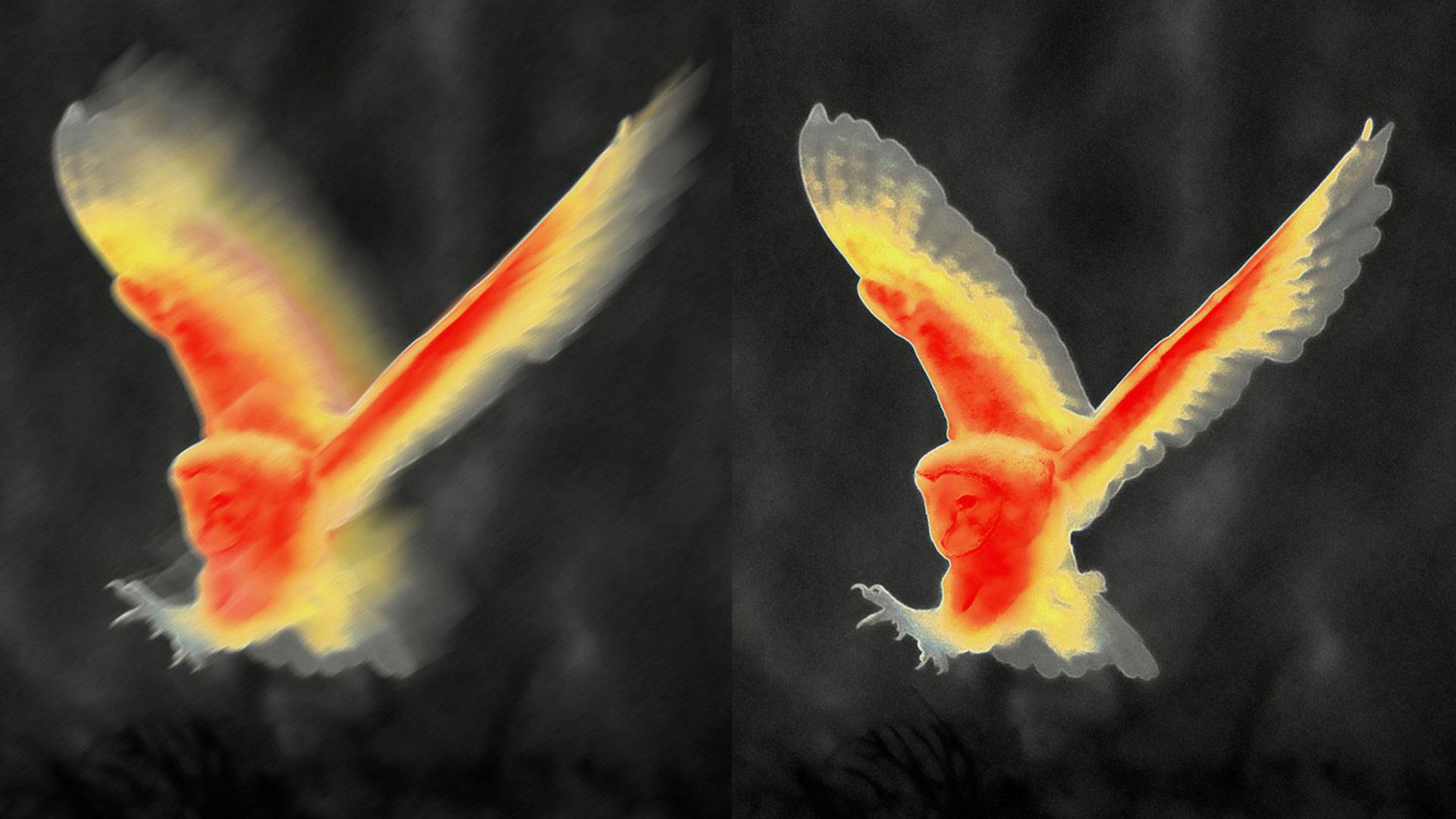

  • Thermal image of an owl in flight shown in two versions side by side, with different levels of sharpness and detail against a dark background.

    High Frame Rate

    The ZEISS DTI cameras featuring a display frame rate of 50 Hz. This refers to the number of times per second your monitor can redraw the screen. A higher display frame rate results in decreased flickering of the image, thereby reducing eye strain when using for several hours at a time.

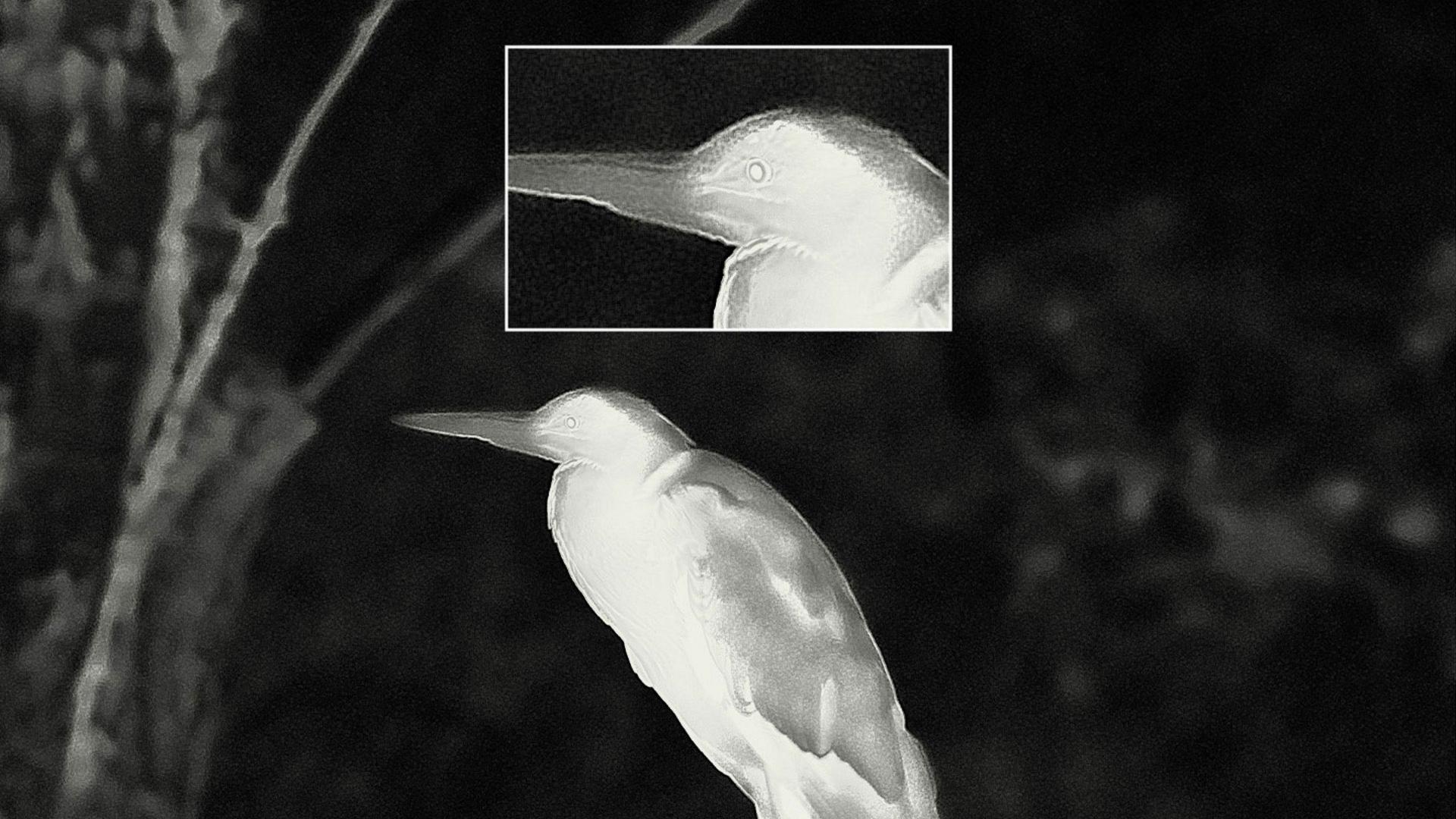

  • Thermal image of a bird perched on a branch at night with a ZEISS zoomed-in inset highlighting detailed head and beak features.

    Picture-in-Picture (PiP)

    The picture-in-picture function of the ZEISS DTI allows overlying the zoomed image on the visual image. This feature helps to keep sight of the animal you are observing in zoom mode, even when it makes sudden movements.

  • A owl is captured in tall grass with a red ZEISS focus frame centered on it. A high-contrast landscape captured in black and white.

    Hot Tracking

    In 'Hot Tracking' mode, the warmest source in the image is framed with a red square. Finding heat sources in densely overgrown areas and tracking them is therefore easier.

  • Two people in a forest are observing their surroundings using ZEISS optics.

    Customizable Settings

    Nature observation can be a very individual activity. When it comes to thermal imaging cameras, every observer has their own personal preferences. Therefore, the DTIs offer the ability to select exactly which color modes are active and which are not, so you only must click through the ones you want to use. The same applies to the zoom level setting. Now you can limit the maximum zoom level to your liking.

Technical Data

ZEISS DTI 1
  • Focal Length

    19 mm

    Aperture

    F1.0

    Range

    1,000 m (1,093 yd)

    Field of View at 100 m (yds)

    24 m (73 ft)

    Objective Viewing Angle

    14° x 10°

    Sensor Resolution

    384 x 288

    Sensor Pixel Pitch

    12 μm

    NETD Value

    ≤ 35 mK

    Display Resolution

    1280 x 960

    Display Frame Rate

    50 Hz

    Display Type

    LCOS

    Optical Magnification

    1.8 x

    Maximum Digital Zoom

    4 x

    Zoom Steps

    1.0 – 4.0 x

    Battery Type

    Li-Ion

    Battery Run Time

    6,5 h

    Internal Memory

    8 GB

    WLAN

    2.4 Ghz

    Bluetooth

    +

    Livestream Function (Video & Photo)

    +

    Compatibility

    ZEISS Hunting App | ≥ Windows 10 | MacOS X (Android File Transfer)

    Operating Temperature

    − 10 °C | + 50 °C (+ 14  °F | + 122 °F)

    Length x Width x Height

    175 x 57 x 62 mm (6.9 x 2.2 x 2.4")

    Weight

    360 g (0.79 lbs)

  • Focal Length

    25 mm

    Aperture

    F1.0

    Range

    1,320 m (1,444 yd)

    Field of View at 100 m (yds)

    18 m (55 ft)

    Objective Viewing Angle

    11° x 8°

    Sensor Resolution

    384 x 288

    Sensor Pixel Pitch

    12 μm

    NETD Value

    ≤ 35 mK

    Display Resolution

    1280 x 960

    Display Frame Rate

    50 Hz

    Display Type

    LCOS

    Optical Magnification

    2.5 x

    Maximum Digital Zoom

    4 x

    Zoom Steps

    1.0 – 4.0 x

    Battery Type

    Li-Ion

    Battery Run Time

    6,5 h

    Internal Memory

    8 GB

    WLAN

    2.4 Ghz

    Bluetooth

    +

    Livestream Function (Video & Photo)

    +

    Compatibility

    ZEISS Hunting App | ≥ Windows 10 | MacOS X (Android File Transfer)

    Operating Temperature

    − 10 °C | + 50 °C (+ 14 °F | + 122 °F)

    Length x Width x Height

    175 x 57 x 62 mm (6.9 x 2.2 x 2.4")

    Weight

    360 g (0.79 lbs)

Two black ZEISS lens accessory with ribbed texture and protective cap, displayed on a white reflective surface.

ZEISS Thermal Imaging Devices Accessories

Amplify your experience with exceptional accessories.

These accessories not only enhance the performance and usability of thermal imaging devices but also ensure that users can maximize their investment and achieve the best results in their specific applications.
