ZEISS Thermal Imaging Devices

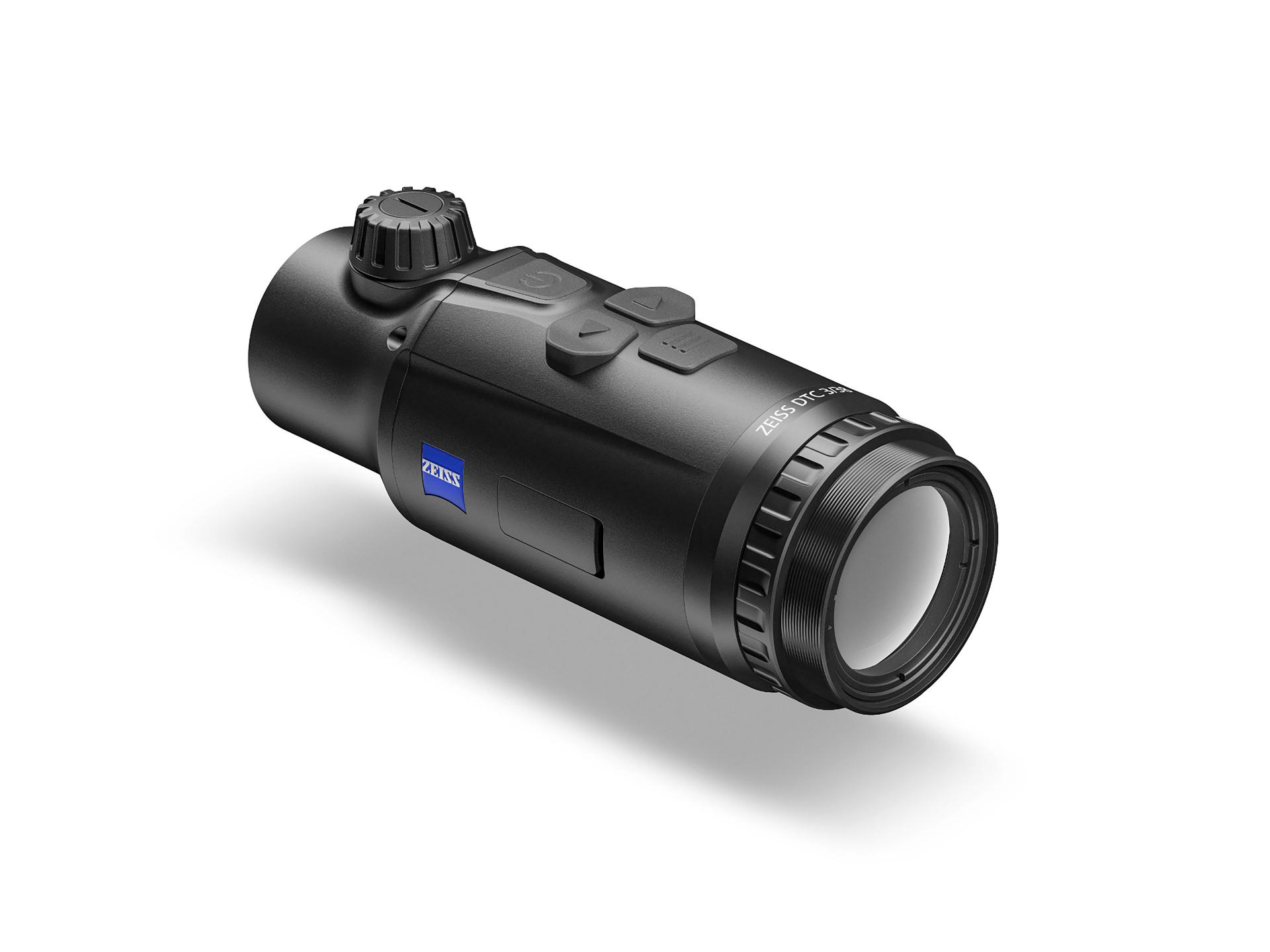

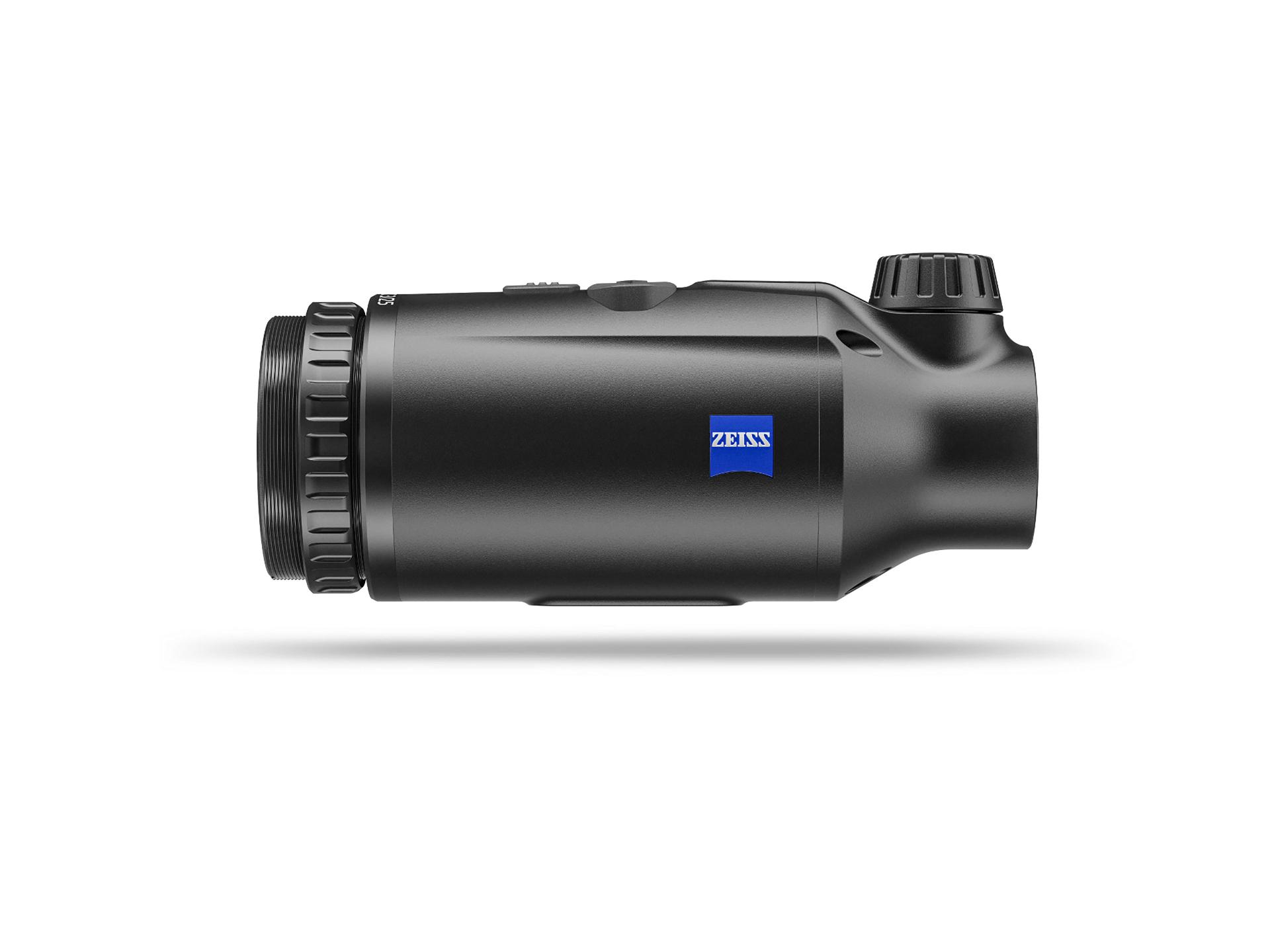

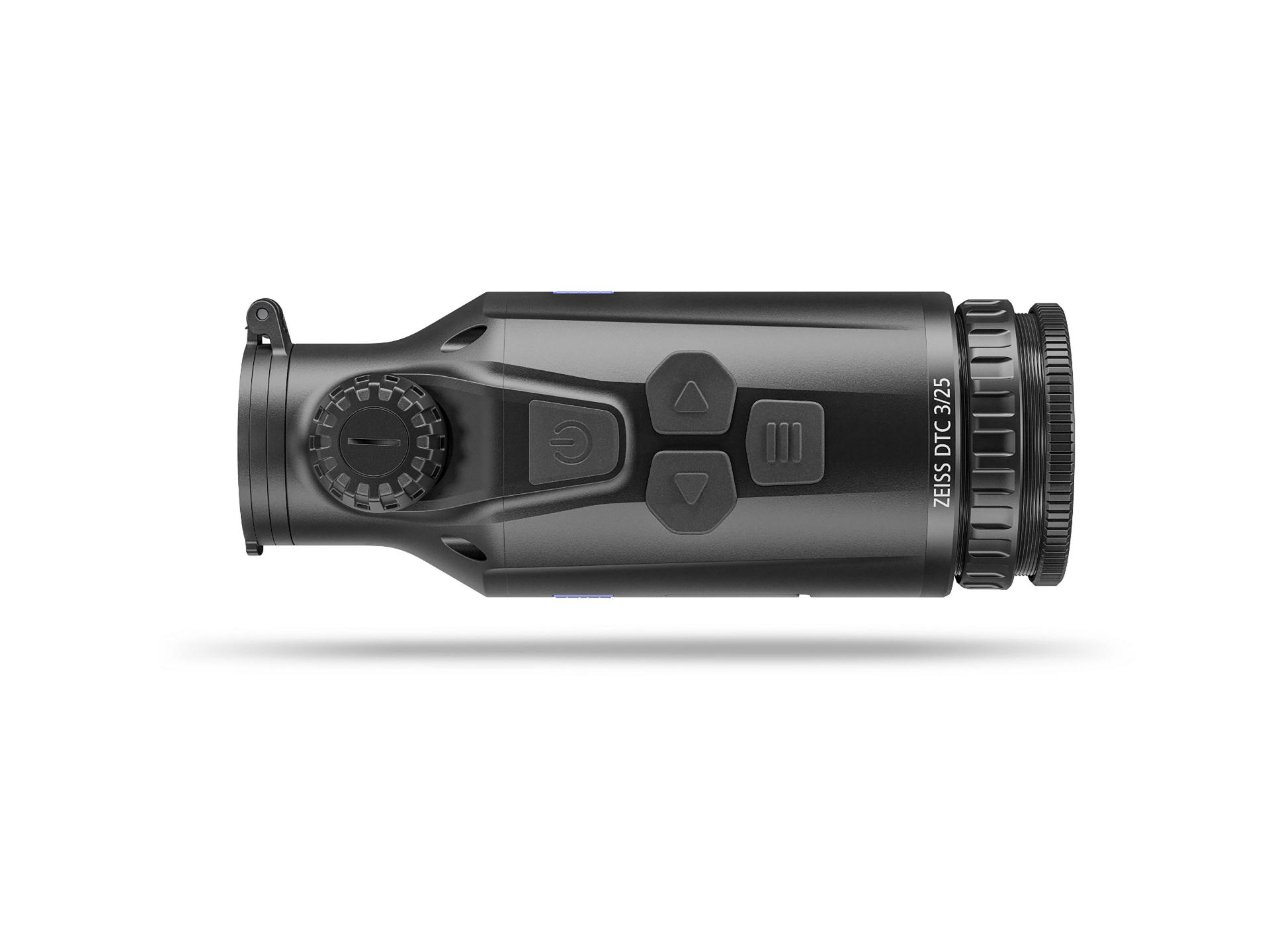

ZEISS DTC 3

Thermal imaging clip-on from ZEISS.

Hunting requires precision, even in low light conditions. The ZEISS DTC 3 aids in clearly identifying targets and their surroundings, minimizing guesswork and enhancing confidence for accurate, responsible shots.

Explore more details now

10 Hours Battery Life
Digital Zeroing Assistant
High-Contrast AMOLED Display

Ensure that every night hunt is a success – the ZEISS DTC 3 Thermal Imaging Clip-Ons offer perfectly compatible optics with a large and high-contrast 1024 × 768 HD AMOLED display, intuitive ergonomics, precise and user-friendly zeroing procedure thanks to the app-controlled zeroing assistant, virtually unlimited battery life, and numerous customization options.

Available Models

ZEISS DTC 3

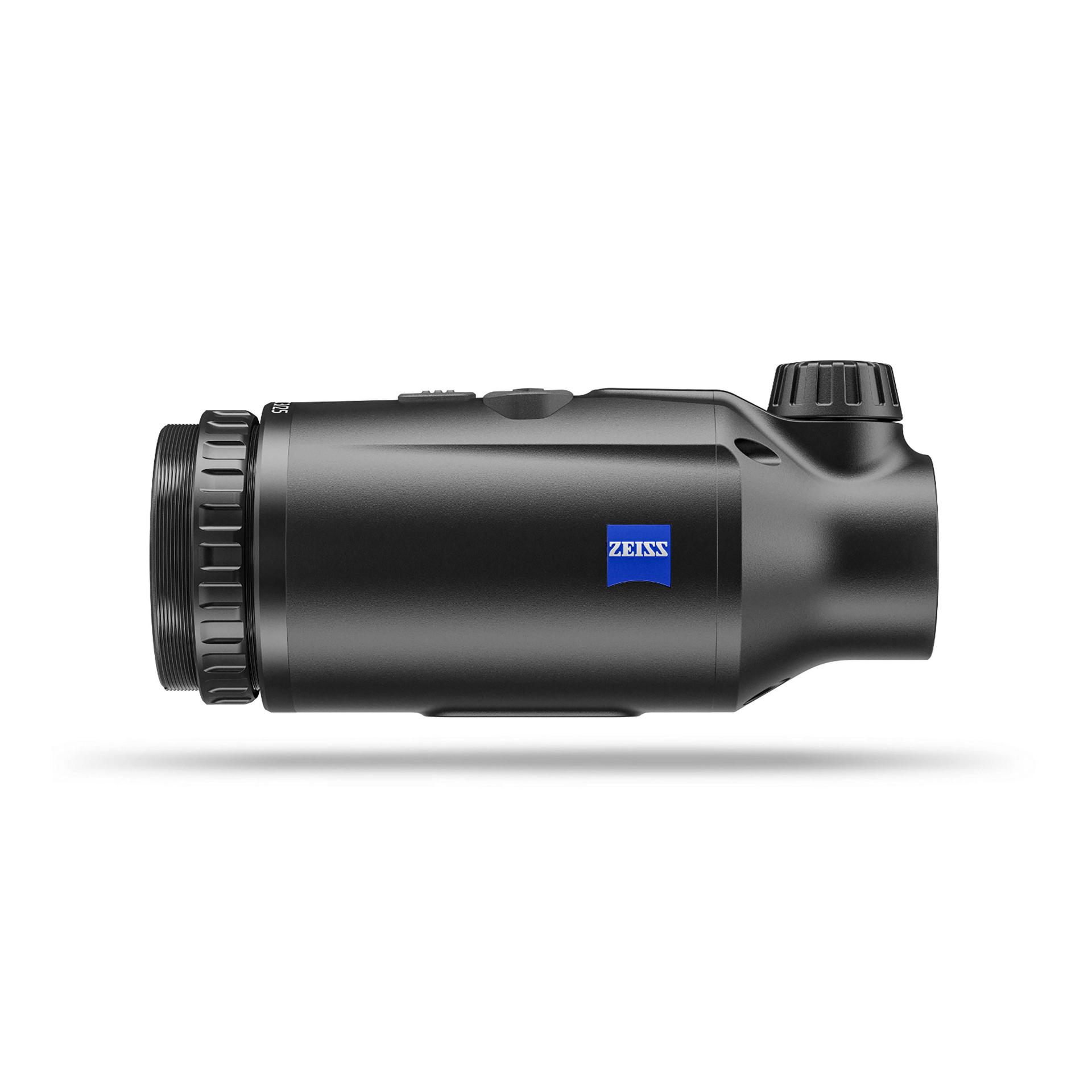

DTC 3/25

Field of View at 100 m (yds):
18.4 m (60 ft)
Range:
1,300 m (1,422 yd)
Objective Viewing Angle:
10.5° x 7.9°
DTC 3/38

Field of View at 100 m (yds):
12.3 m (40 ft)
Range:
1,950 m (2,133 yd)
Objective Viewing Angle:
7.0° x 5.0°

A man wearing a hat is aiming through a ZEISS riflescope in a dark outdoor setting. — 1) Example of use – observe prohibitions in gun and hunting laws.

Accurate and Precise

Top-notch optics and a sharp, clear image are essential when hunting at night in order to be able to safely identify game. Two ZEISS DTC 3 thermal imaging clip-ons offer high-quality germanium lenses that are optimized for thermal radiation, the latest generation of 12-micron sensors, a large HD AMOLED display, and sophisticated image processing to deliver uncompromising detail recognition and maximum precision.

Two people in outdoor gear are aiming a rifle equipped with a ZEISS riflescope in low-light conditions. — 1) Example of use – observe prohibitions in gun and hunting laws.

Easy to Use

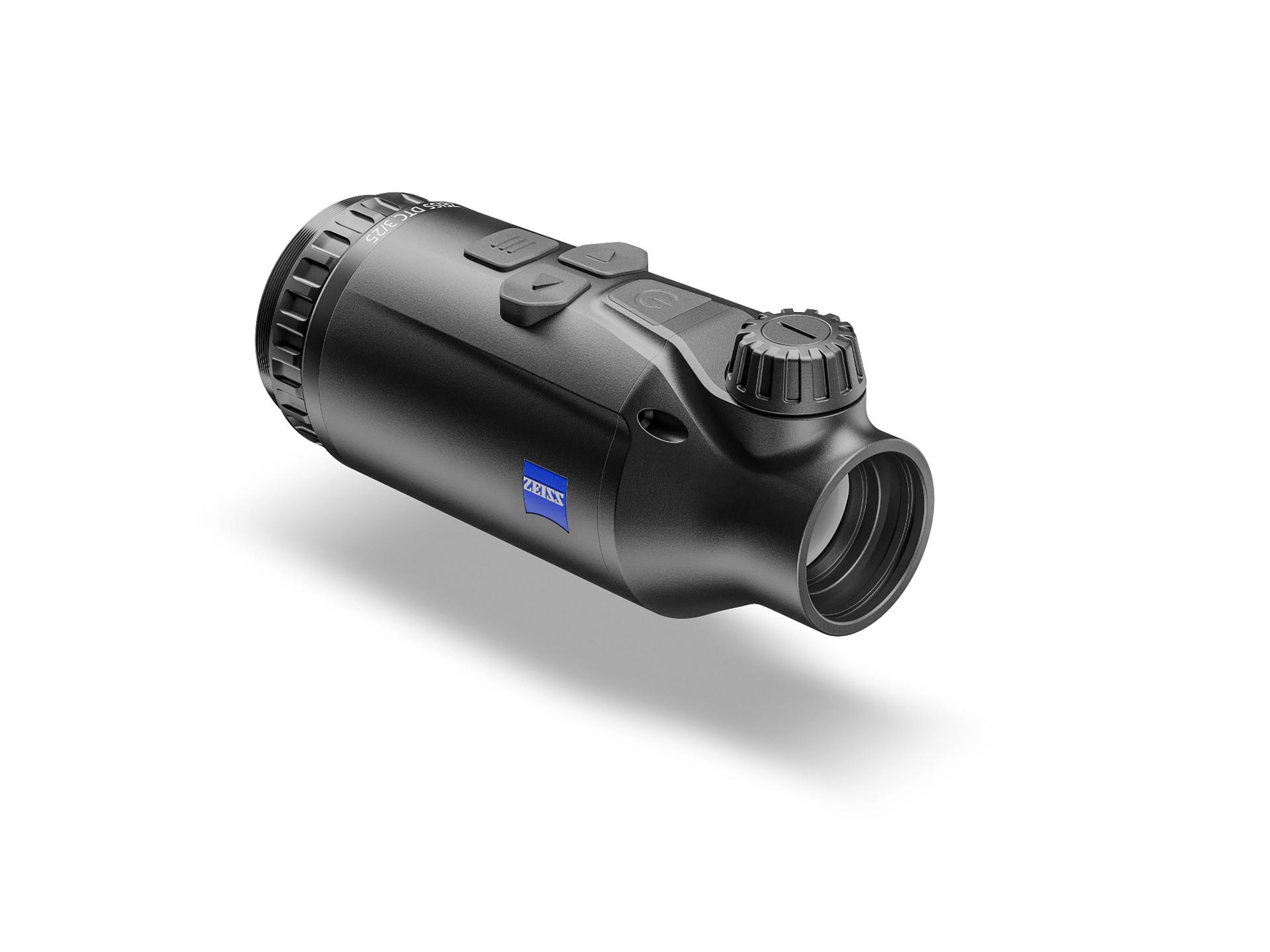

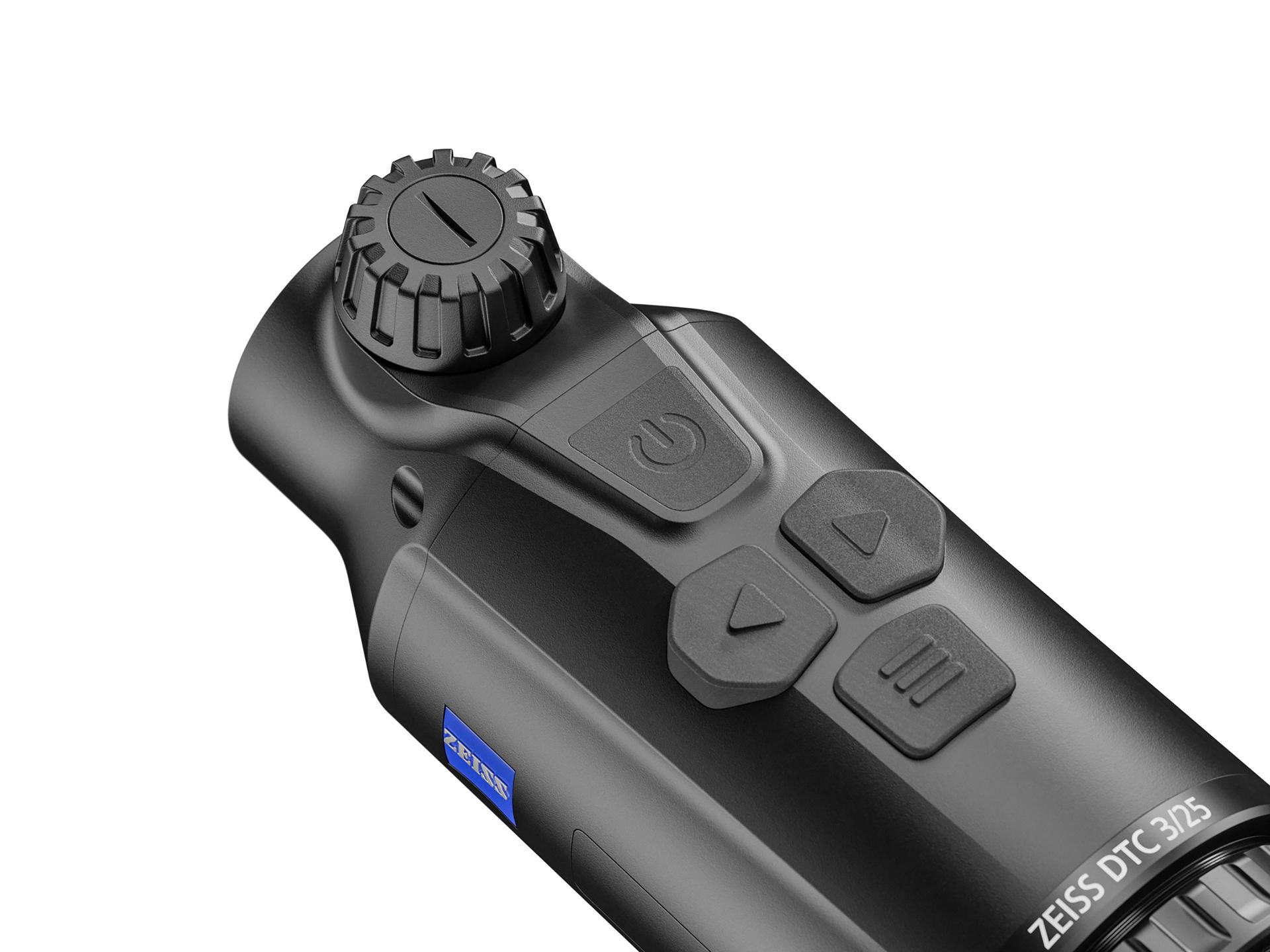

Intuitive handling and the ability to easily interact with the clip-on device are critical to night hunting success. The central location of the focusing turret on the upper side of the clip-on device makes it easier to reach and focus precisely. The ErgoControl operating concept features an intelligent, cross-shaped arrangement of the buttons, making the device even more user-friendly – both for left-handed and right-handed users as well as when wearing gloves.

A person at an outdoor shooting range holds a smartphone displaying a ballistic app next to a rifle equipped with a ZEISS riflescope. — 1) Example of use – observe prohibitions in gun and hunting laws.

Digital Zeroing Assistant

To ensure that the riflescope, thermal imaging clip-on, and rifle are perfectly in tune, it is essential that the set-up is carefully and precisely zeroed. The ZEISS DTC are equipped with a digital zeroing assistant. It is easy to operate via the ZEISS Hunting app and makes the zeroing process faster, easier, and even more accurate.

A man sits at a wooden table inspecting a ZEISS riflescope while holding a smartphone, with rifles and another ZEISS optic beside him. — 1) Example of use – observe prohibitions in gun and hunting laws.

Numerous Customizable Settings

The ZEISS DTC 3 can be connected to the ZEISS Hunting App via Bluetooth allowing you to adjust the device settings to your own requirements. Particularly convenient: once the combination of ZEISS DTC 3 and riflescope has been zeroed in, you can store the setting as a profile in the app and easily switch the clip-on from one riflescope to the other. Four possible shooting profiles ensure impressive flexibility.

A hunting rifle equipped with a scope is leaning against a wooden ladder in a forest setting at dusk, with ZEISS optics visible. — 1) Example of use – observe prohibitions in gun and hunting laws.

Always Ready

Sometimes hunting success doesn't come as quickly as we would like. With a battery life of 10 hours in continuous use, the ZEISS DTC 3/25 and 3/38 offer virtually infinite possibilities. The integrated angle sensor automatically detects the device’s exact position and activates standby mode at a lateral tilt of 45° as well as at a downward or upward tilt of 70°. Standby mode can, however, also be deactivated by briefly pressing the power button.

A ZEISS riflescope and accessories are displayed inside a protective foam case on the open tailgate of a vehicle. — 1) Example of use – observe prohibitions in gun and hunting laws.

Two Models for any Hunting Situation

The ZEISS DTC 3/38 is particularly well suited for hunting in the open field and at longer distances thanks to its detection range of up to 1950 meters and a field of view of 12.3 meters at 100 meters. For hunting in wooded areas or when stalking, the ZEISS DTC 3/25, with a field of view of 18.4 meters at 100 meters, ensures that you maintain a perfect overview at short distances and enjoy best-in-class detail recognition. The ZEISS DTC 3/25 is the perfect choice when you need to react quickly.

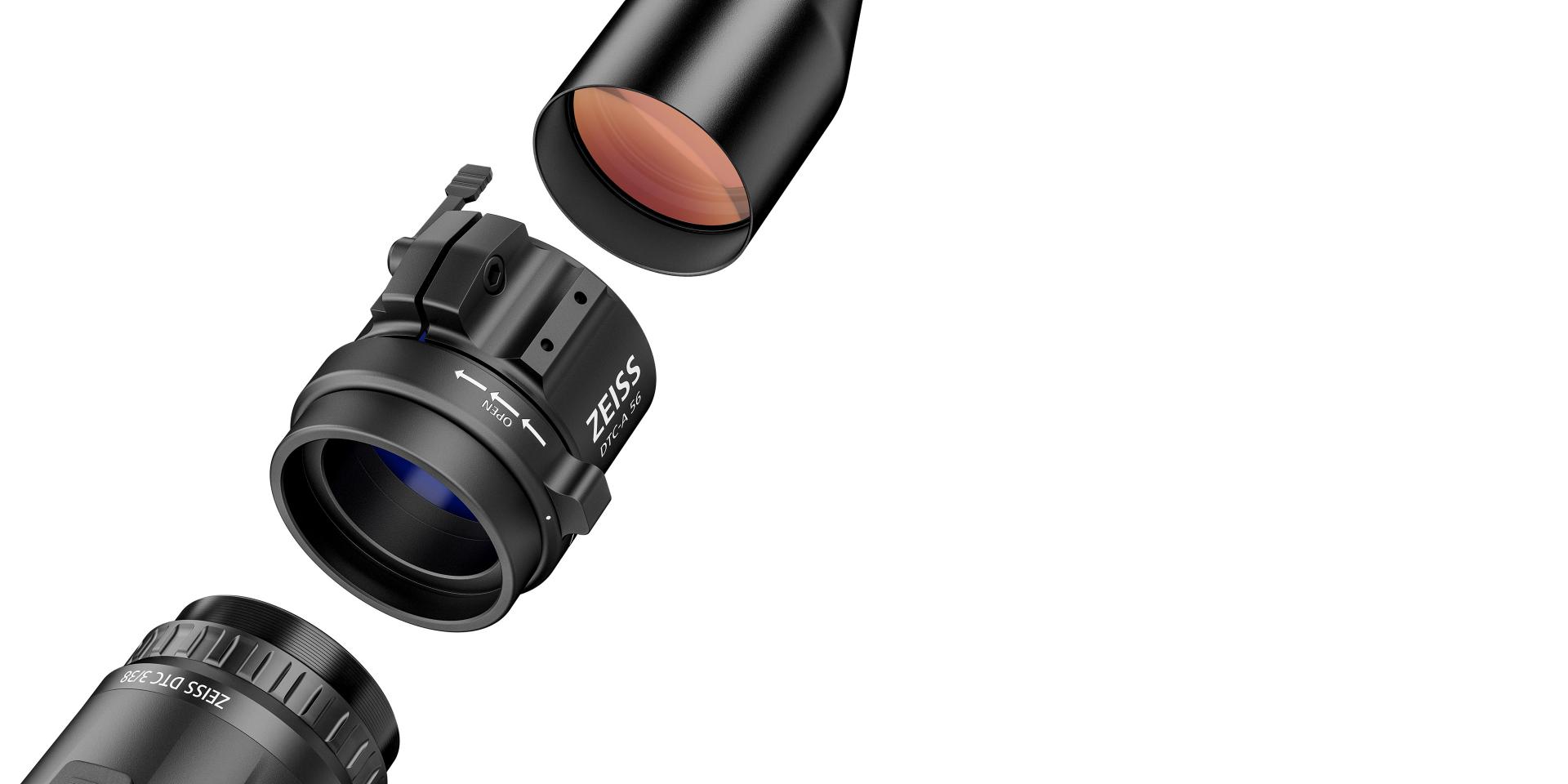

Exploded view of a ZEISS camera lens system showcasing its individual components and precision engineering.

Two-piece ZEISS Adapter

An adapter is required to attach the ZEISS DTC to your riflescope. The two-piece ZEISS Adapter offers you the newest technology and allows an easy and fast mount and dismount of the thermal clip-on device. In combination with the zeroing profiles of the DTC the ZEISS adapter can be used on up to 4 different riflescopes. The bayonet mount allows a fast exchange without any shot deviation.

Technical Data

ZEISS DTI 6

Focal Length	25 mm
Aperture	F1.0
Range	1,300 m (1,422 yd)
Field of View at 100 m (yds)	18.4 m (60 ft)
Objective Viewing Angle	10.5° x 7.9°
Sensor Resolution	384 x 288
Sensor Pixel Pitch	12 μm
NETD Value	≤ 28 mK
Display Resolution	1024 x 768
Display Frame Rate	50 Hz
Display Type	AMOLED
Optical Magnification	1.0 x
Elevation Adjustment Range at 100 m	230 cm
Windage Adjustment Range at 100 m	320 cm
Adjustment per Click at 100 M	2.5 cm
Battery Type	Li-Ion
Battery Run Time	10 h
WLAN	-
Bluetooth	+
Compatibility	ZEISS Hunting App
Operating Temperature	− 10 °C \| + 50 °C (+ 14 °F \| + 122 °F)
Length x Width x Height	150 x 60 x 65 mm (5.9 x 2.4 x 2.6")
Weight	560 g (19.7 oz)

Focal Length	38 mm
Aperture	F1.0
Range	1,950 m (2,133 yd)
Field of View at 100 m (yds)	12.3 m (40 ft)
Objective Viewing Angle	7.0° x 5.0°
Sensor Resolution	384 x 288
Sensor Pixel Pitch	12 μm
NETD Value	≤ 28 mK
Display Resolution	1024 x 768
Display Frame Rate	50 Hz
Display Type	AMOLED
Optical Magnification	1.0x
Elevation Adjustment Range at 100 m	154 cm
Windage Adjustment Range at 100 m	205 cm
Adjustment per Click at 100 m	1.6 cm
Battery Type	Li-Ion
Battery Run Time	10 h
WLAN	-
Bluetooth	+
Compatibility	ZEISS Hunting App
Operating Temperature	− 10 °C \| + 50 °C (+ 14 °F \| + 122 °F)
Length x Width x Height	164 x 60 x 65 mm (6.5 x 2.4 x 2.6")
Weight	650 g (22.9 oz)

ZEISS thermal imaging device accessories, two interchangeable lens modules with protective caps.

ZEISS Thermal Imaging Devices Accessories

Enhance your experience. With perfect accessories.

These accessories not only enhance the performance and usability of thermal imaging devices but also ensure that users can maximize their investment and achieve the best results in their specific applications.

Show all ZEISS Thermal Imaging Devices Accessories

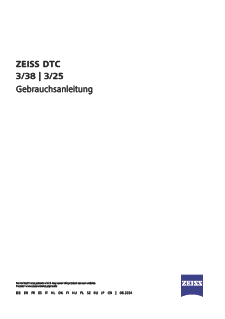

Instructions

ZEISS DTC 3

3 MB

Download
