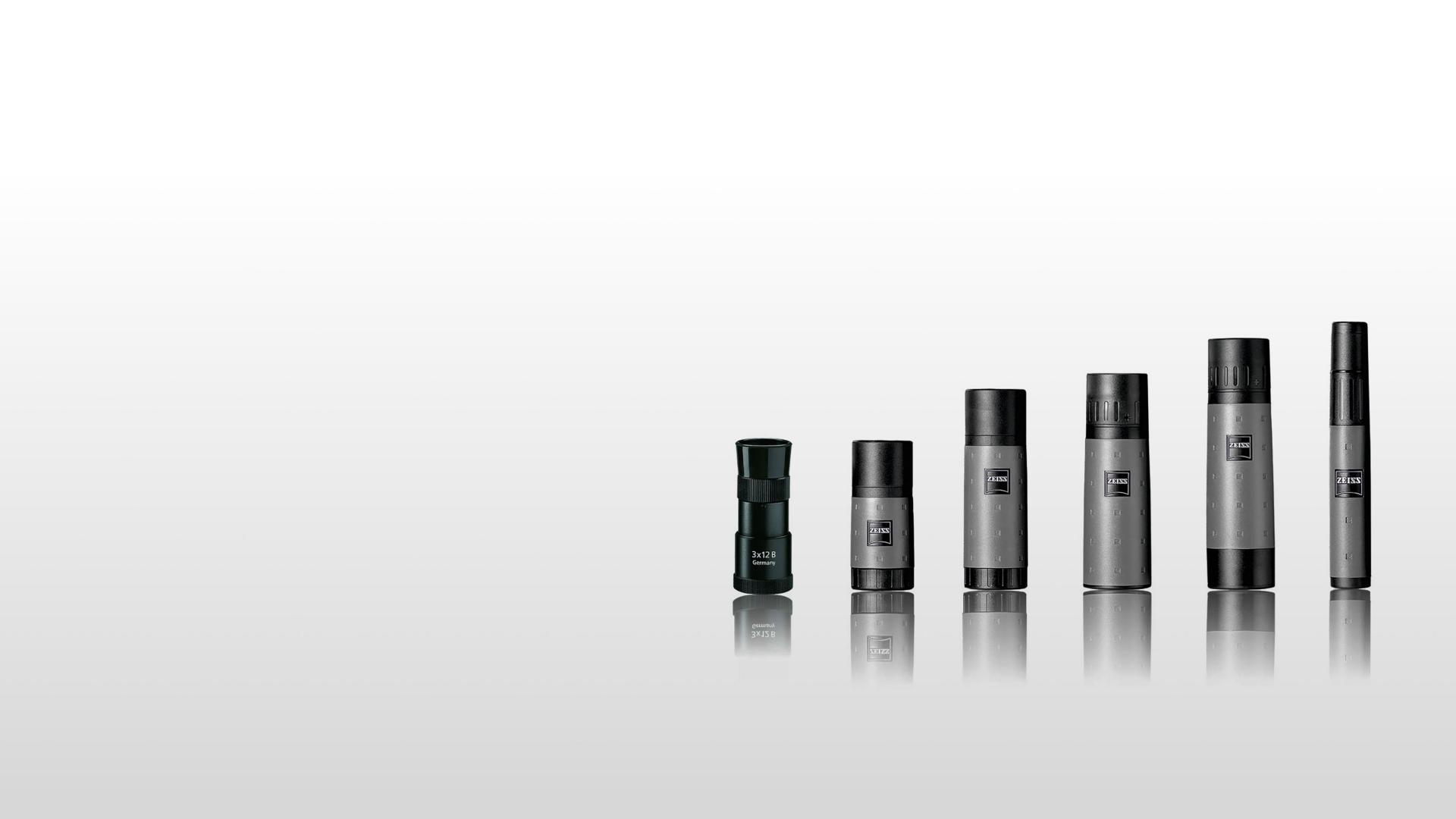

ZEISS Monoculars
The practical magnifiers for every day.Monos are versatile and compact, fitting in a pocket or handbag, and can enhance binoculars by tripling magnification for detailed observation. They are ideal for sporting events, theatre, and outdoor activities, allowing users to see even the smallest details.

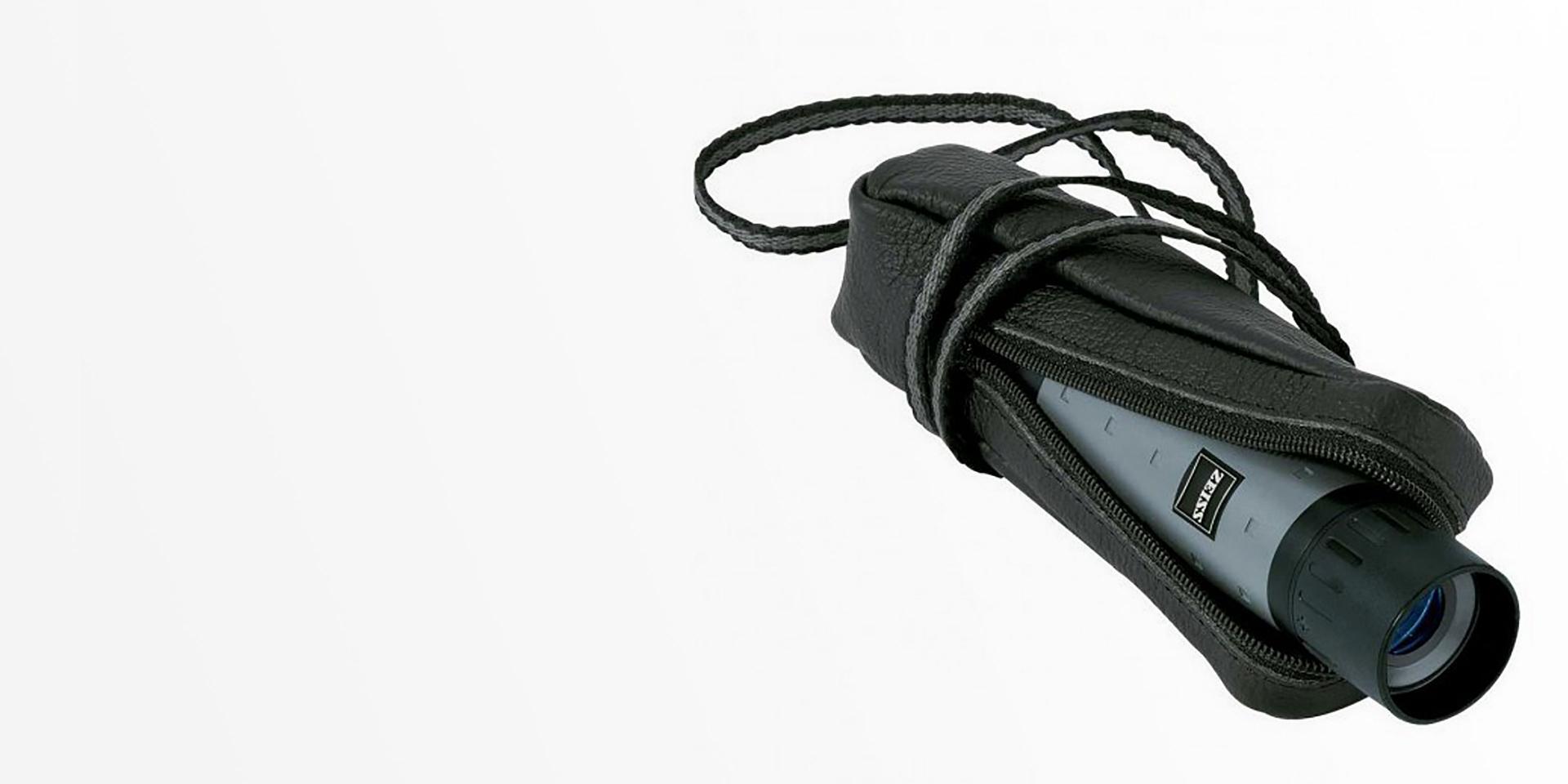

Always at Hand
Small, light and sporty – the compact Monos are always handy for nature excursions, concerts or sporting events. They bring objects to arm's length at lightning speed so you can see every single detail. A diopter adjustment is possible to up to +|- 4 diopters.

ZEISS T* Coating
ZEISS T* coating is a guarantee of the brilliant, high-contrast imagesÂÂ which you will experience above all in adverse light conditions and in the twilight. Behind it, however, there is no specific formula for building up the layers. Instead, it is a technology that is constantly adjusted to suit new glass materials and requirements, which varies from lens to lens.

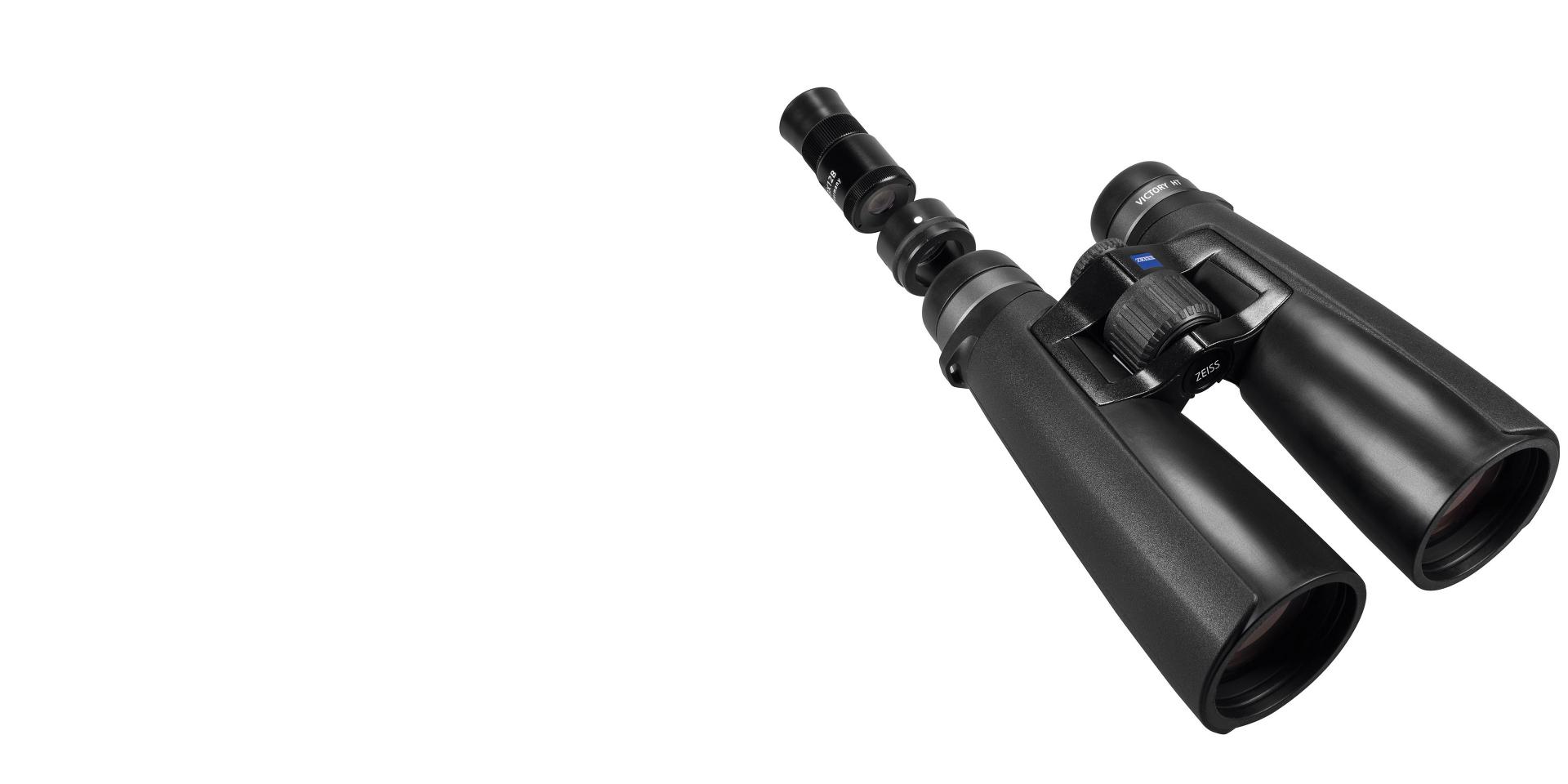

Triple Amplification

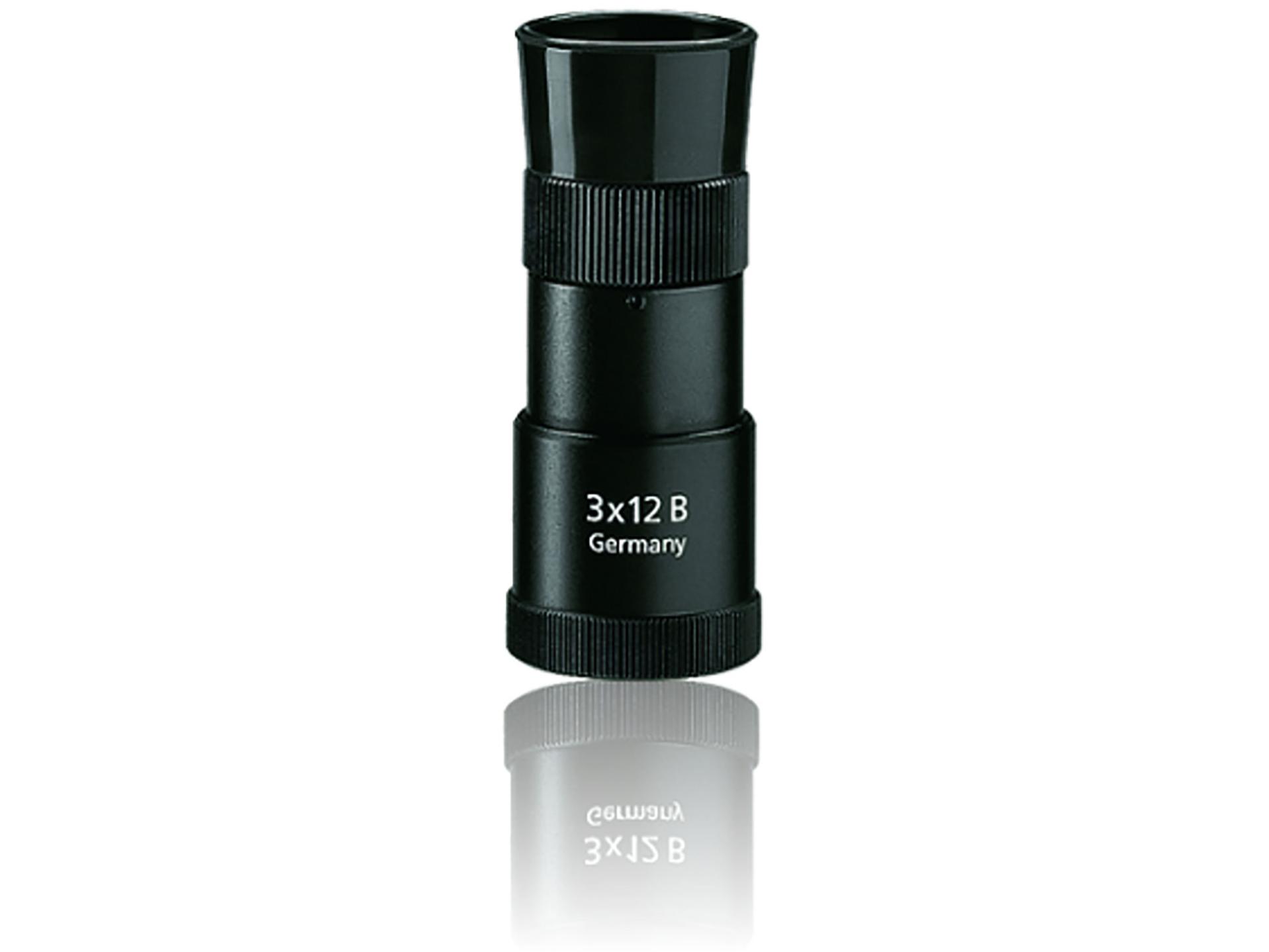

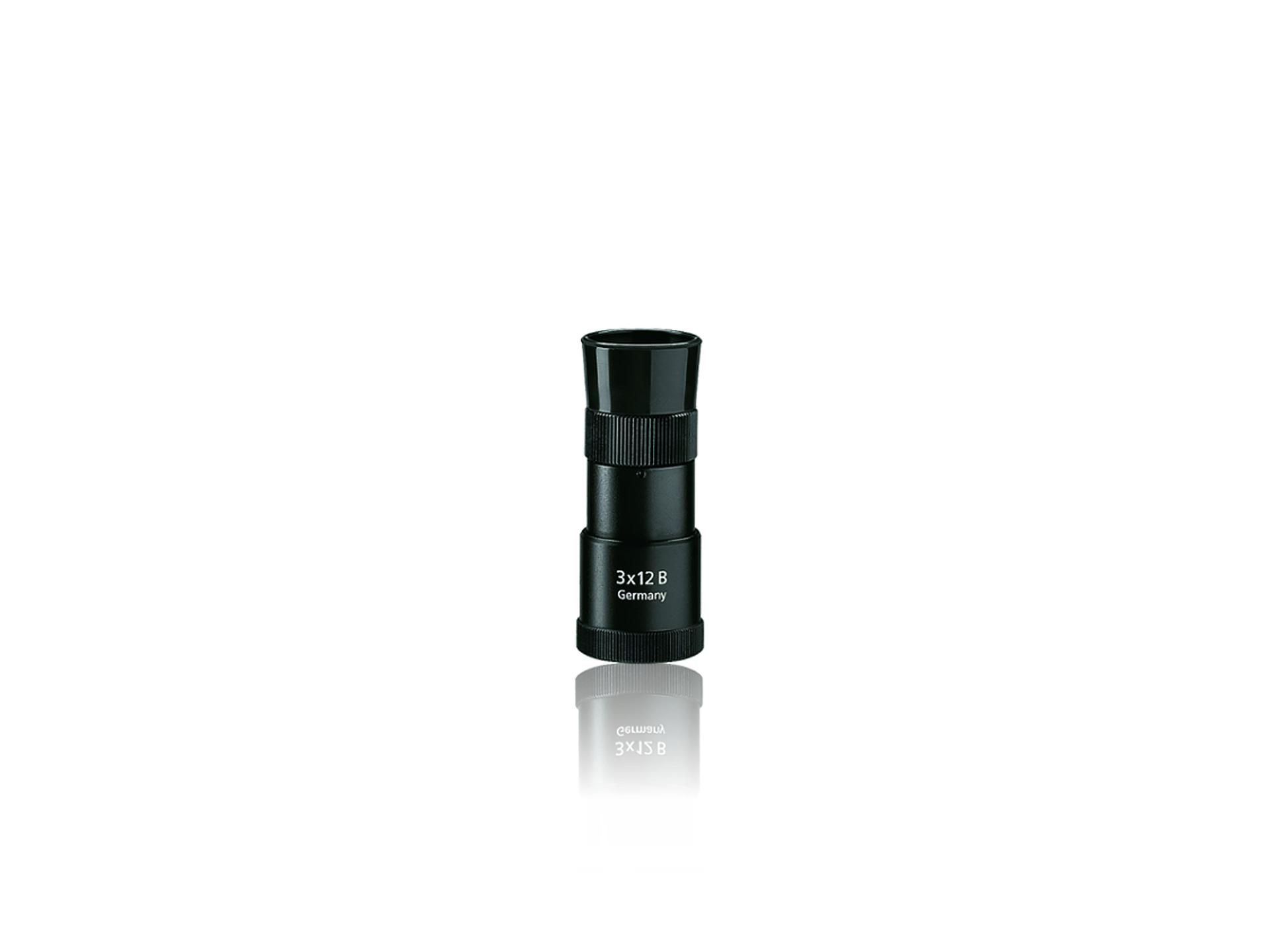

The Mono 3x12 T* can transform your Victory FL and Conquest binoculars into a high-performance spotting scope in the blink of an eye by tripling the magnification. A practical alternative to a spotting scope, which pays off on long and varied excursions, such as birdwatching or insect hunting. The device can be securely fixed onto the eyepiece by means of an adaptor ring, opening up a hugely detailed visual experience.
The Mono 3x12 T* can also be used on its own as a miniature telescope or as a magnifying glass at close range. The Mono booster is so small that you can easily take it with you wherever you go.

Close Range
The Mono models 4x12 T* and 6x18 T* with their close focus capabilities are suitable for use as a magnifying glass or visual aid. This makes them extremely versatile. Whether you are watching butterflies, reading a street plan or walking map, or making out letters and numbers on a bus timetable, the Monos are a practical tool.
Technical Data
ZEISS Monoculars-
-
Magnification
4 x
Lens diameter
12 mm
Exit Pupil Diameter
3.0 mm
Twilight Factor
6.9
Field of View at 1,000 m (yds)
180 m (540 ft)
Angular Field of View
41°
Close Focusing Distance
0.3 m (0.9 ft)
Diopter Adjustment Range
− 4.0 | + 4.0 dpt
Exit Pupil Distance
15.0 mm
Water Resistance
Splash-proof
Operating Temperature
− 20 °C | + 40 °C (− 4 °F | + 104 °F)
Length
70 mm (2.6")
Weight
45 g (1.6 oz)
-

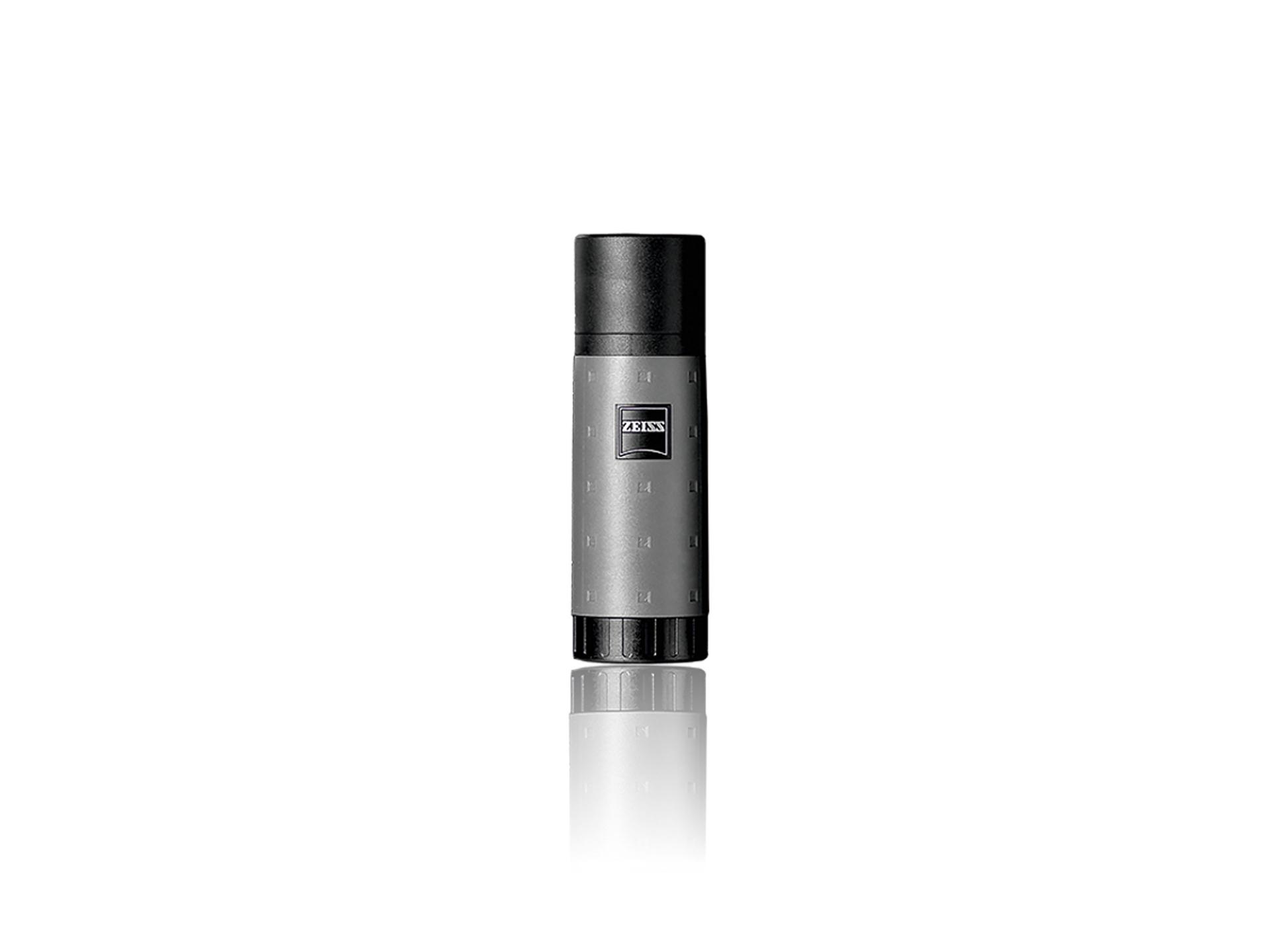

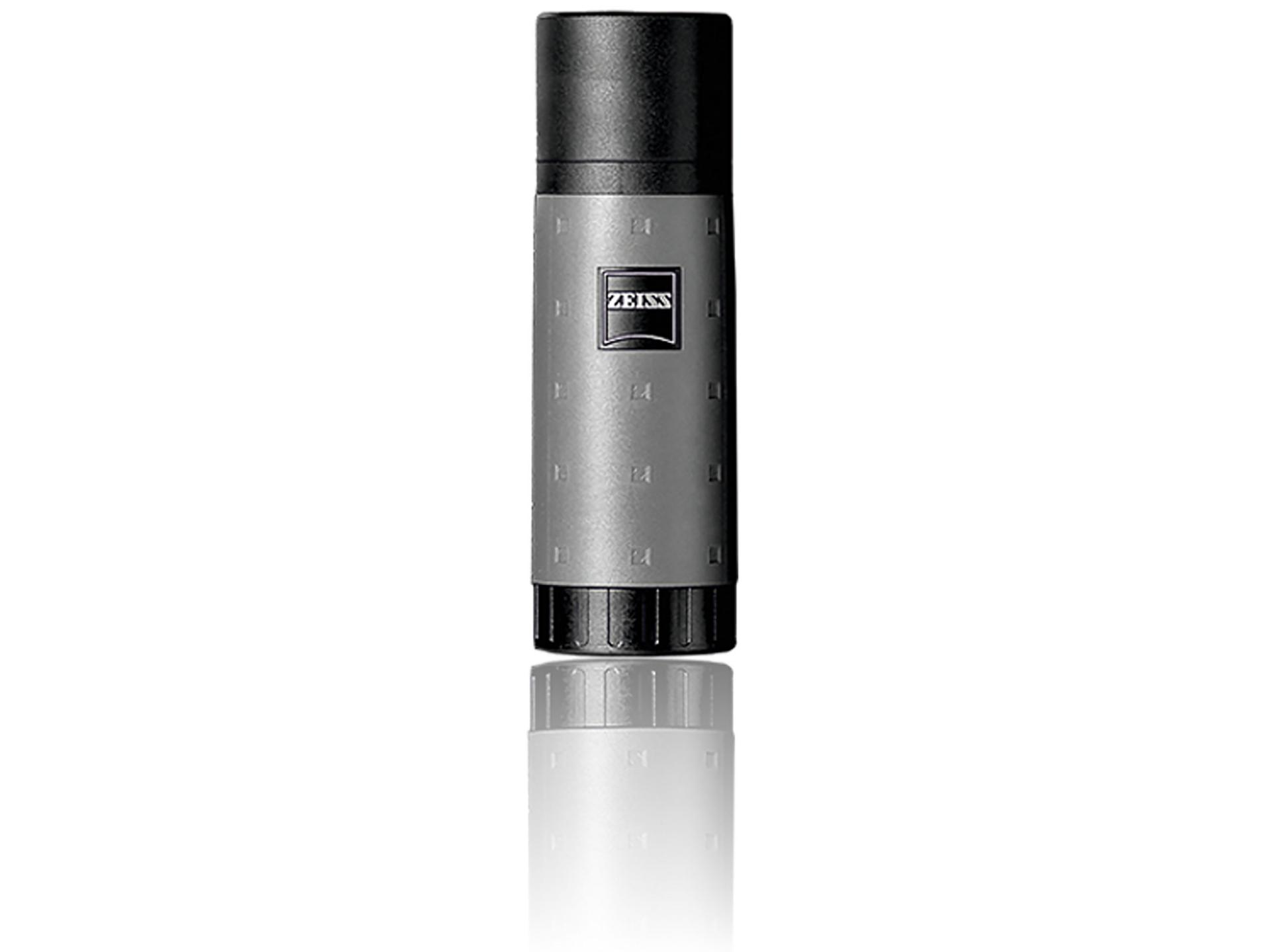

Magnification
6 x
Lens diameter
18 mm
Exit Pupil Diameter
3.0 mm
Twilight Factor
10.4
Field of View at 1,000 m (yds)
120 m (360 ft)
Angular Field of View
41°
Close Focusing Distance
0.3 m (1.0 ft)
Diopter Adjustment Range
− 4.0 | + 4.0 dpt
Exit Pupil Distance
15.0 mm
Water Resistance
Splash-proof
Operating Temperature
− 20 °C | + 40 °C (− 4 °F | + 104 °F)
Length
94 mm (3.7")
Weight
58 g (2.0 oz)
-

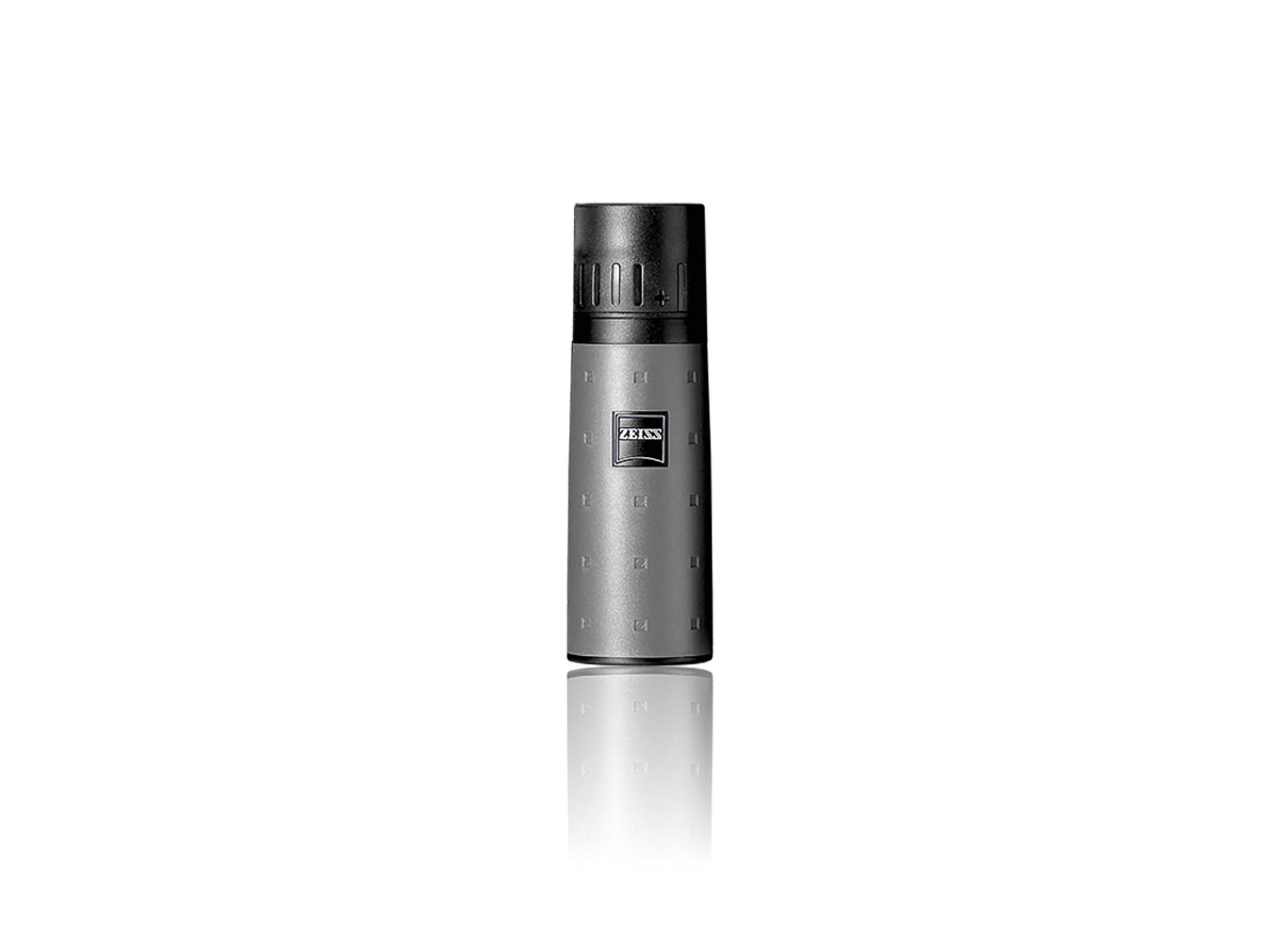

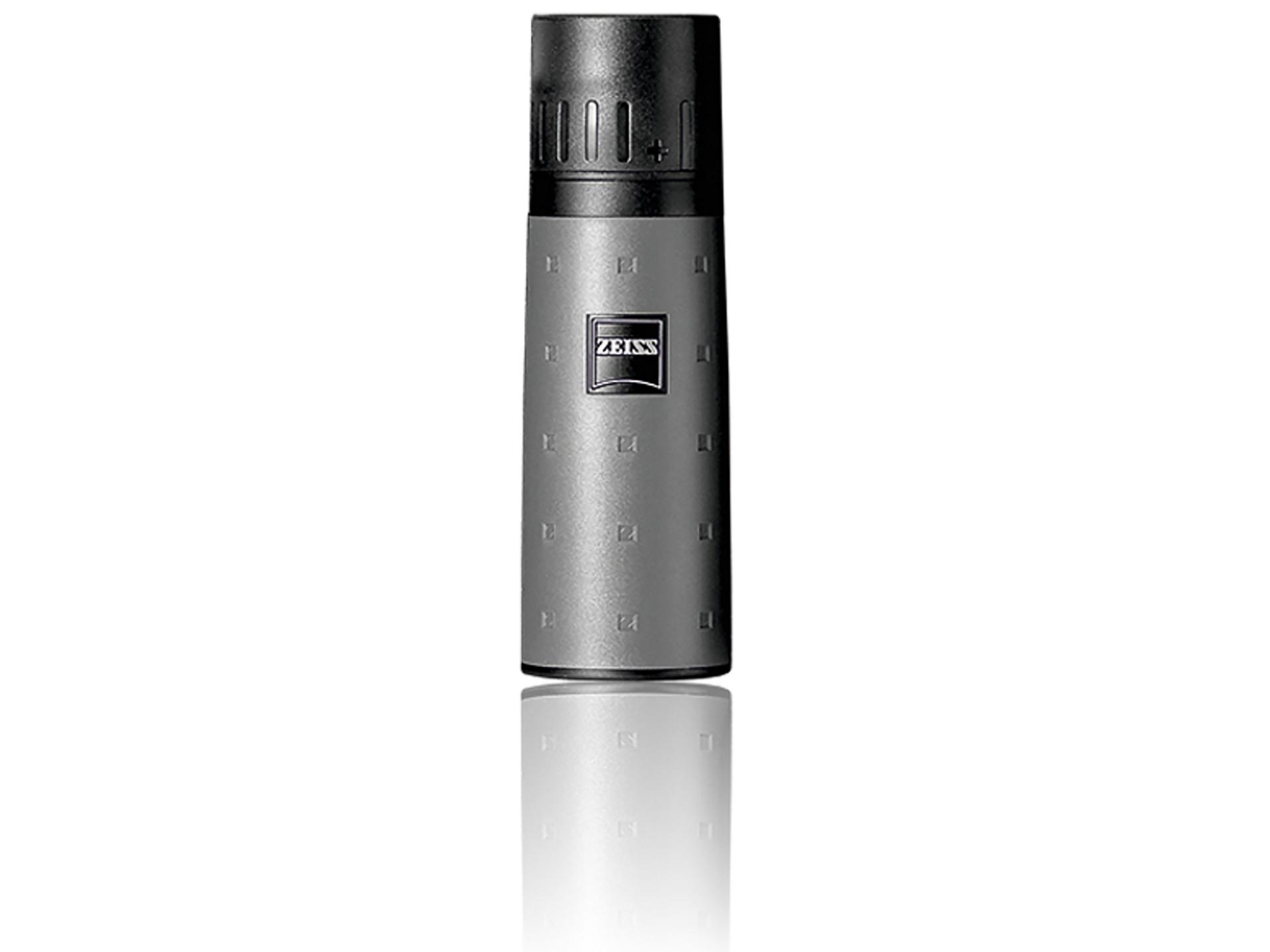

Magnification
8 x
Lens diameter
20 mm
Exit Pupil Diameter
2.5 mm
Twilight Factor
12.6
Field of View at 1,000 m (yds)
110 m (330 ft)
Angular Field of View
51°
Close Focusing Distance
3.0 m (9.8 ft)
Diopter Adjustment Range
− 4.0 | + 4.0 dpt
Exit Pupil Distance
15.0 mm
Water Resistance
Splash-proof
Operating Temperature
− 20 °C | + 40 °C (− 4 °F | + 104 °F)
Length
101 mm (3.8")
Weight
67 g (2.4 oz)
-

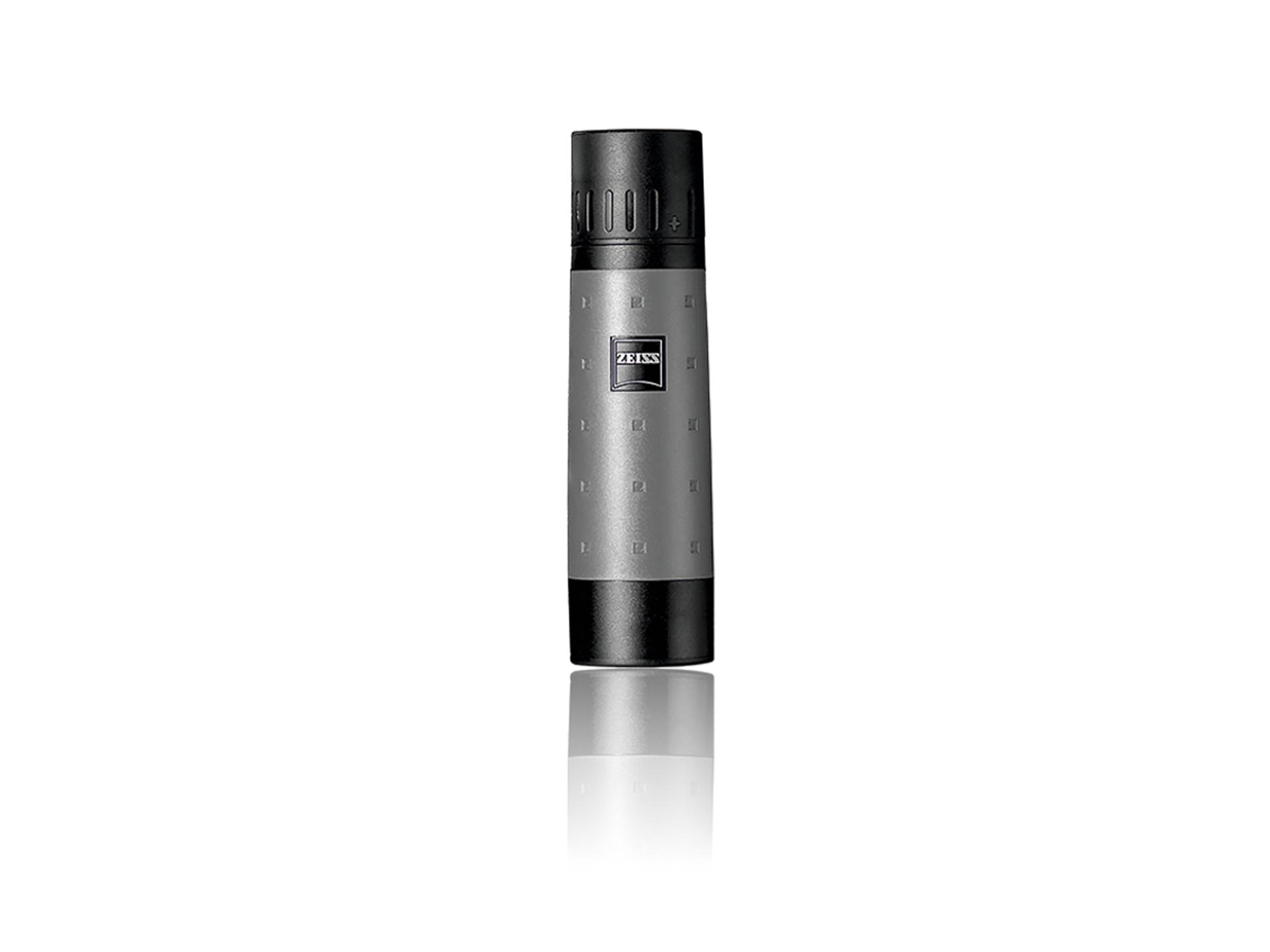

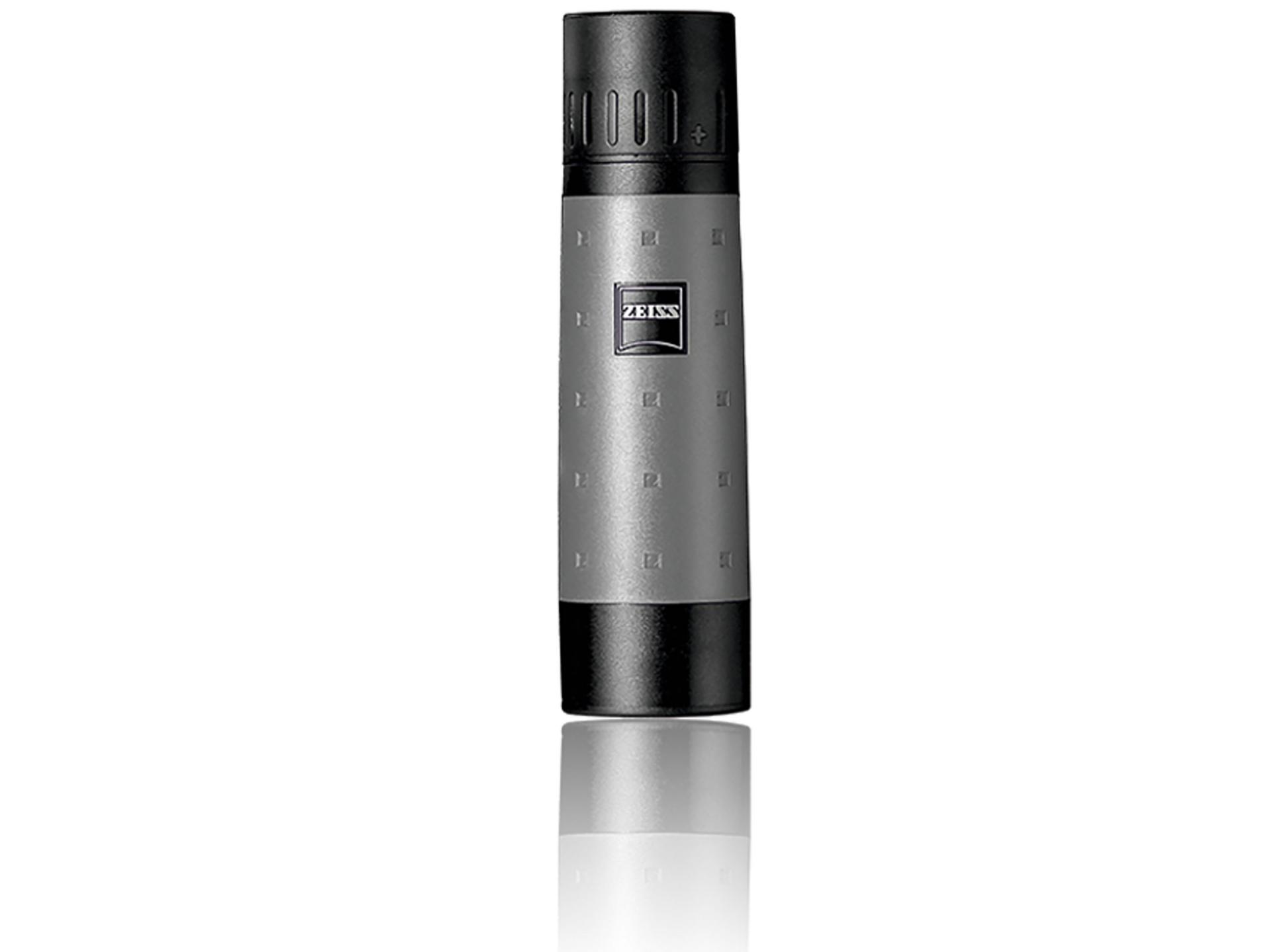

Magnification
10 x
Lens diameter
25 mm
Exit Pupil Diameter
2.5 mm
Twilight Factor
15.8
Field of View at 1,000 m (yds)
88 m (264 ft)
Angular Field of View
51°
Close Focusing Distance
4.5 m (14.8 ft)
Diopter Adjustment Range
− 4.0 | + 4.0 dpt
Exit Pupil Distance
15.0 mm
Water Resistance
Splash-proof
Operating Temperature
− 20 °C | + 40 °C (− 4 °F | + 104 °F)
Length
119 mm (4.7")
Weight
77 g (2.7 oz)
-

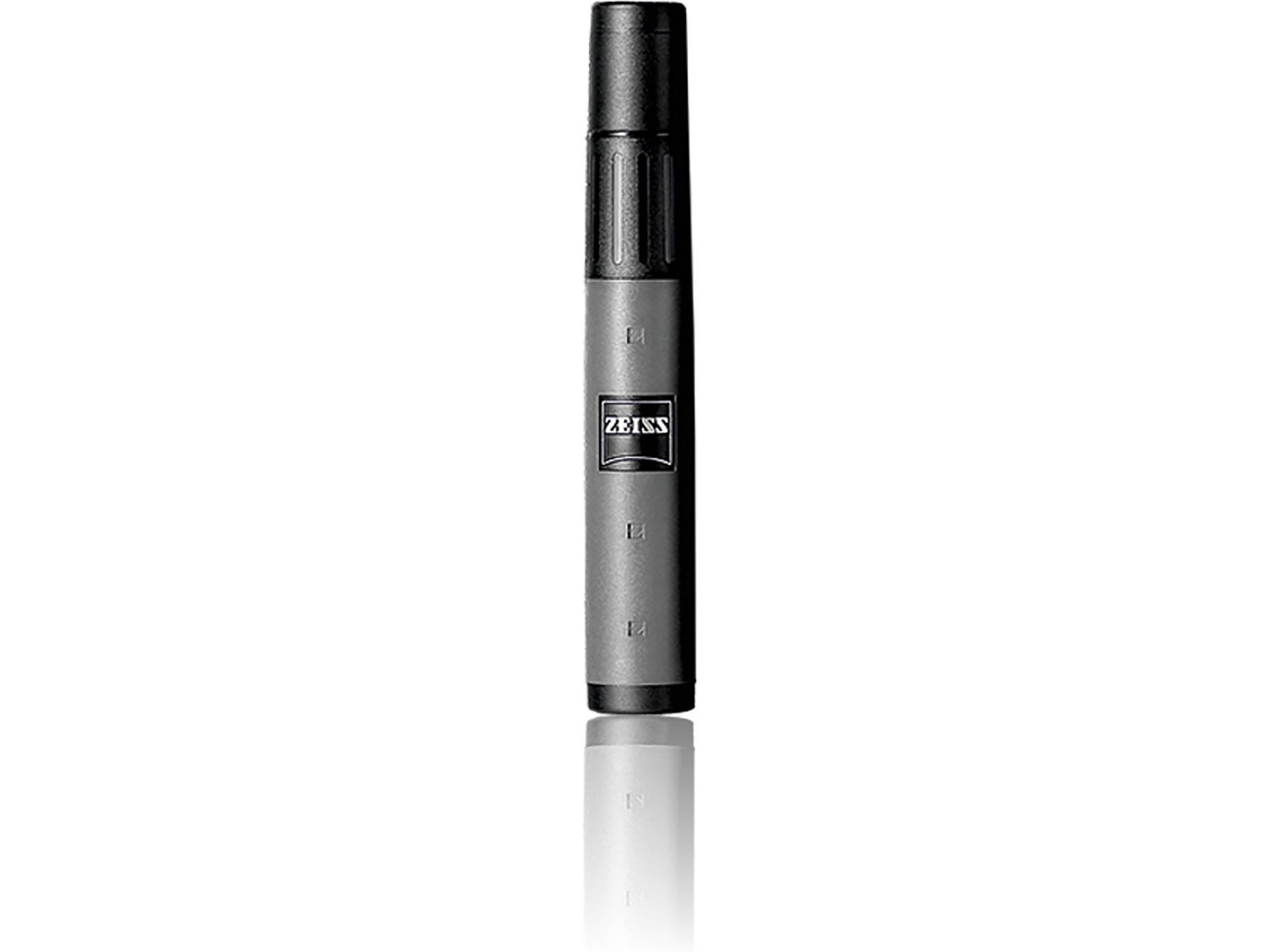

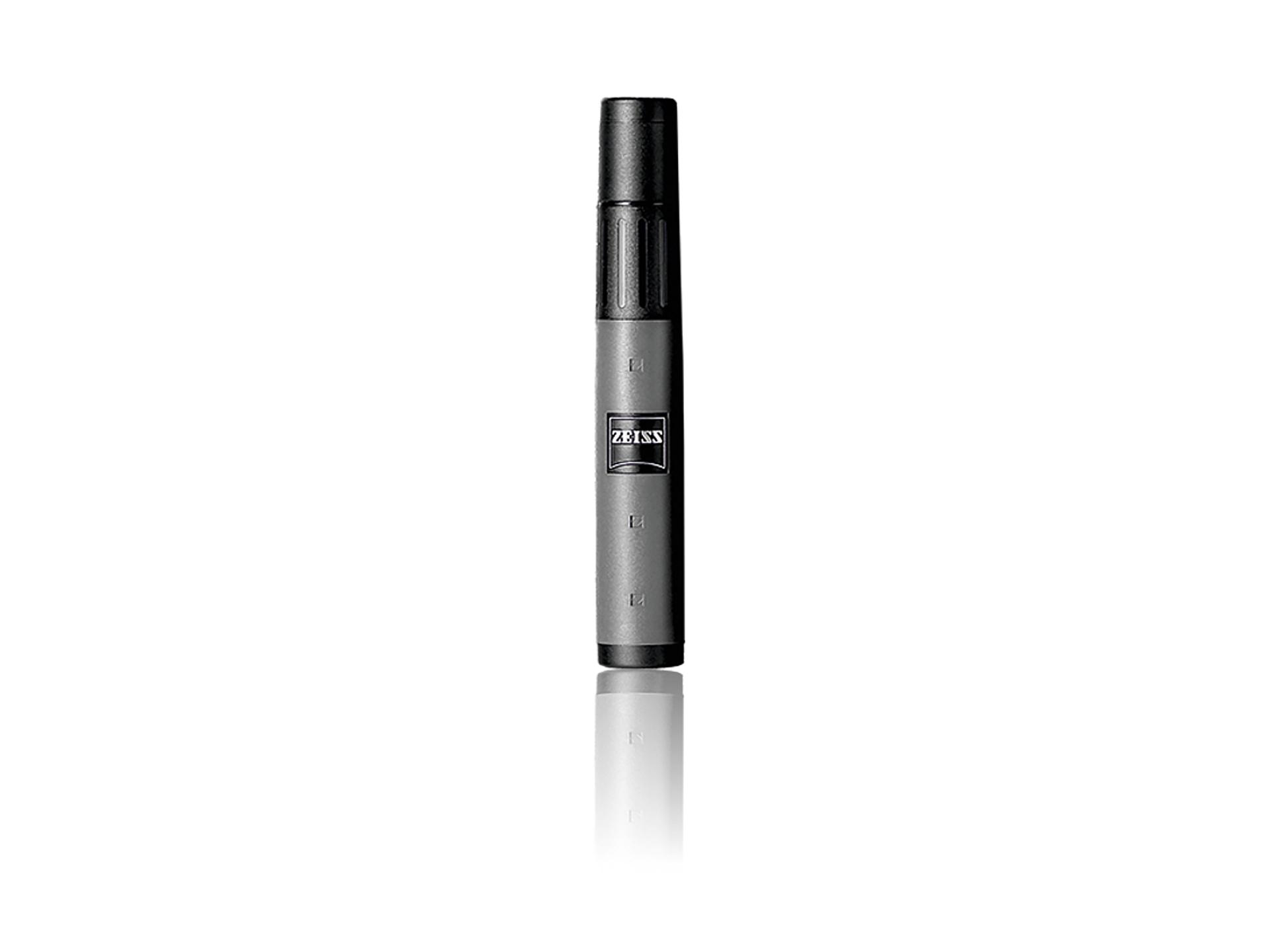

Magnification
5 x
Lens diameter
10 mm
Exit Pupil Diameter
2.0 mm
Twilight Factor
7.0
Field of View at 1,000 m (yds)
1000 m (300 ft)
Angular Field of View
29°
Close Focusing Distance
4.0 m (13.1 ft)
Diopter Adjustment Range
− 4.0 | + 4.0 dpt
Exit Pupil Distance
16.5 mm
Water Resistance
Splash-proof
Operating Temperature
− 20 °C | + 40 °C (− 4 °F | + 104 °F)
Length
113 mm (4.5")
Weight
23 g (0.8 oz)
