ARRI | ZEISS Master Prime Lenses

Breathtaking

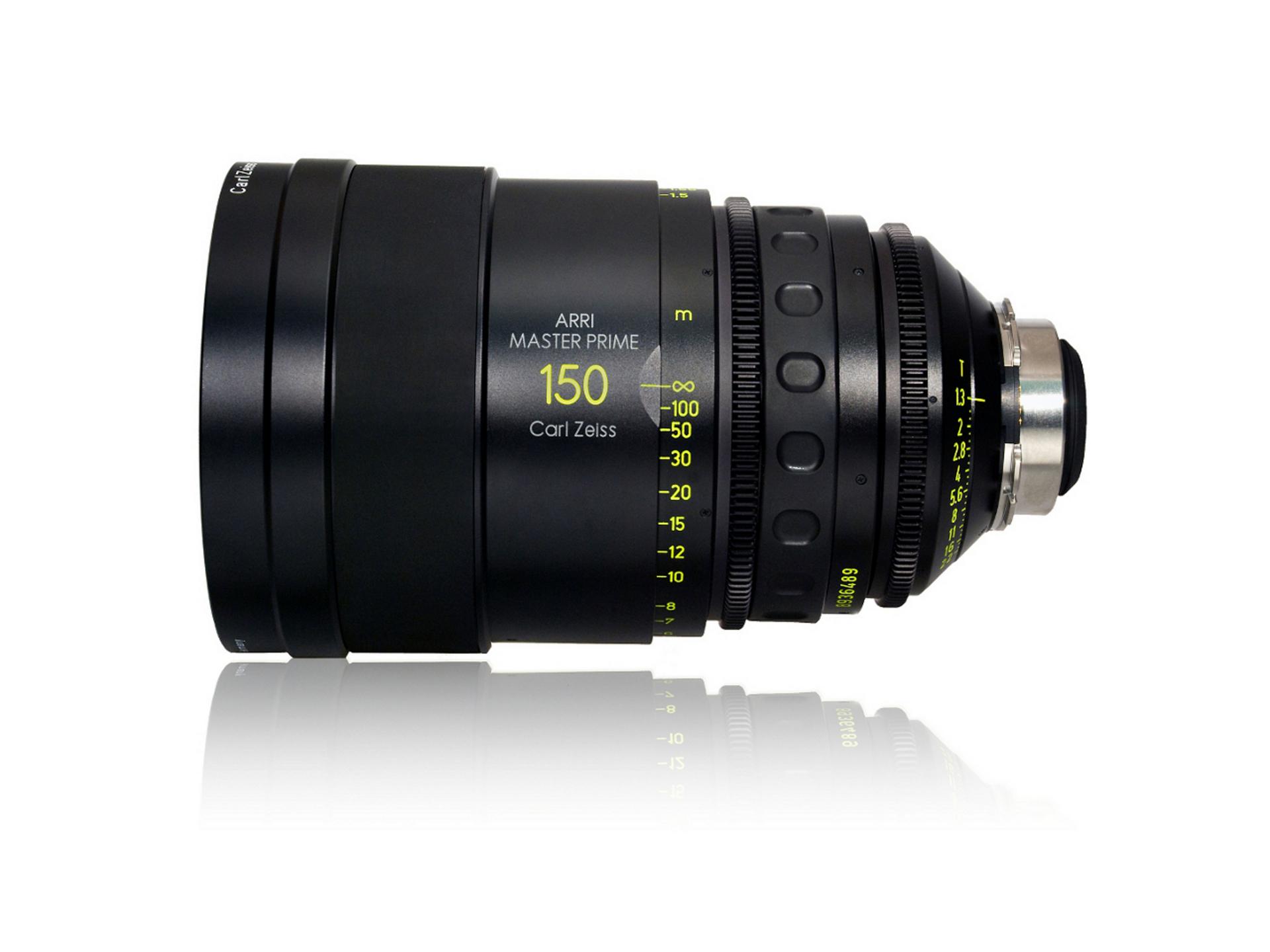

  • Side view of a ZEISS ARRI Master Prime 150mm camera lens with focus and aperture markings.
    Side view of a ZEISS ARRI Master Prime 150mm camera lens with focus and aperture markings.
  • ZEISS camera lenses displayed around a Scientific and Engineering Award from the Academy of Motion Picture Arts and Sciences.
    ZEISS camera lenses displayed around a Scientific and Engineering Award from the Academy of Motion Picture Arts and Sciences.
  • Close-up of a ZEISS camera lens showing the engraved text "T* XP" and "T1.3" on the lens barrel.
    Close-up of a ZEISS camera lens showing the engraved text "T* XP" and "T1.3" on the lens barrel.

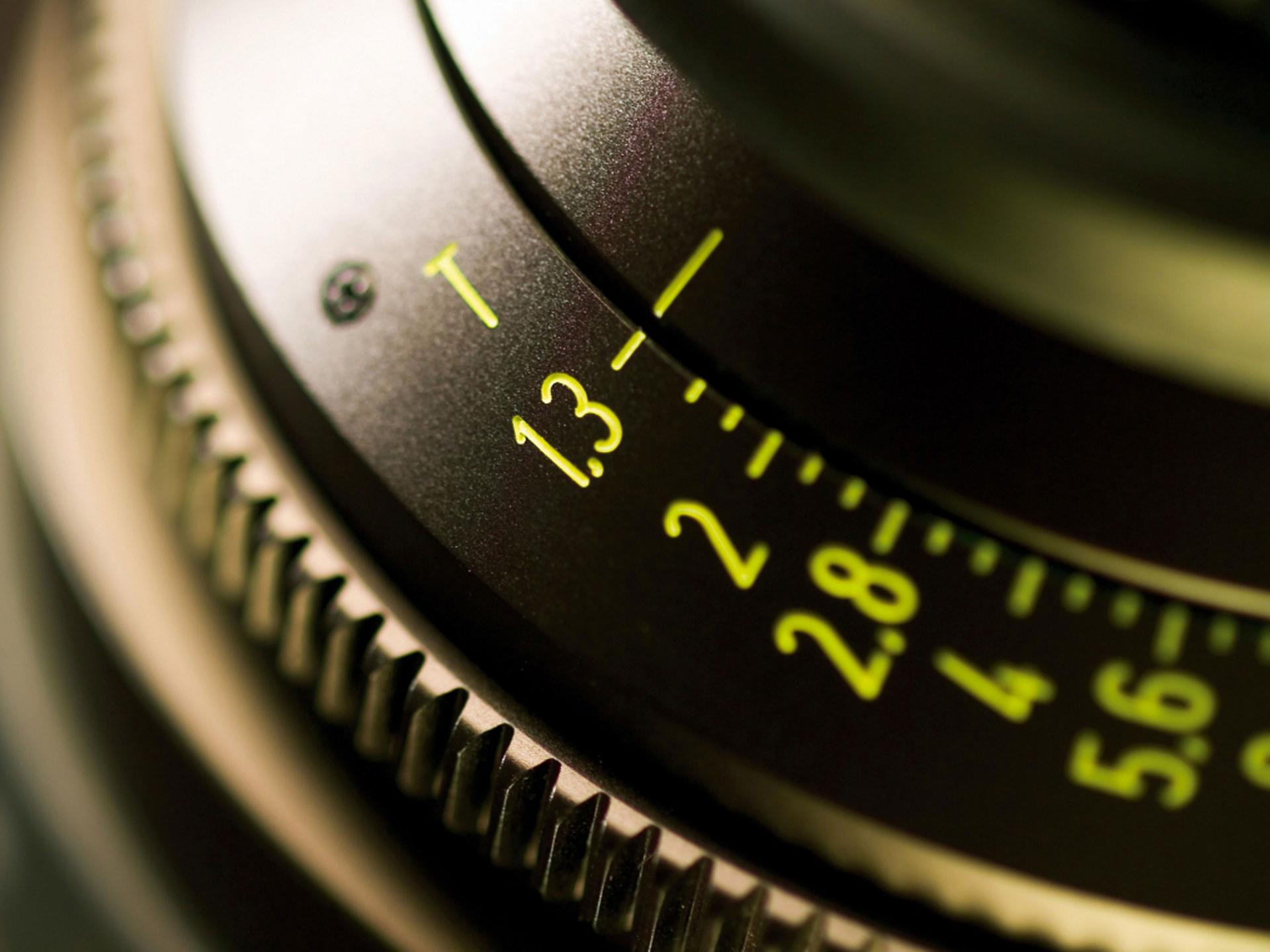

  • Close-up image of a ZEISS camera lens showing detailed aperture and focus markings in yellow.
    Close-up image of a ZEISS camera lens showing detailed aperture and focus markings in yellow.
  • Close-up view of a high-quality ZEISS camera lens showing multiple glass elements and reflections.

The ARRI | ZEISS Master Prime Lenses have been jointly developed by ARRI and ZEISS. They are both fast and have an optical performance surpassing that of all standard speed primes. ARRI | ZEISS Master Prime Lenses open up new creative opportunities of film making.

  • Unique high speed prime lenses with unprecedented resolution
  • Virtually no breathing
  • ARRI | ZEISS Master Prime Lenses offer excellent optical performance across the whole T-stop range from T1.3 to T22
  • The patented Dual Floating Elements technology eliminated breathing in the Master Prime lenses
  • Uniform positions of iris and focus gears
  • Built-in Lens Data System (LDS)

The Master Prime lenses open up new creative opportunities, making shots possible that would have been considered impossible before. A widest stop of T1.3 allows shooting in low or available light for more natural-looking shots and a reduction of the lighting budget. In addition, a wide open stop creates the cinematic look of an extremely shallow depth of field.

Technical Data

ARRI | ZEISS Master Prime Lenses
Aperture
Close Focus1
Length2
Front diameter
Weight
AOV3

Master Prime
12 mm T1.3

T1.3 to T22

0.40 m | 16"

197 mm | 7.76"

156 mm | 6.1"

2.9 kg | 6.4 lbs

90.98°

Master Prime
14 mm T1.3

T1.3 to T22

0.35 m | 14"

172 mm | 6.77"

114 mm | 4.5"

2.4 kg | 5.3 lbs

83.44°

Master Prime
16 mm T1.3

T1.3 to T22

0.35 m | 14"

153 mm | 6.02"

114 mm | 4.5"

2.2 kg | 4.8 lbs


76.87°

Master Prime
18 mm T1.3

T1.3 to T22

0.35 m | 14"

153 mm | 6.02"

114 mm | 4.5"

2.2 kg | 4.8 lbs

70.53°

Master Prime
21 mm T1.3

T1.3 to T22

0.35 m | 14"

153 mm | 6.02"

114 mm | 4.5"

2.4 kg | 5.3 lbs

62.07°

Master Prime
25 mm T1.3

T1.3 to T22

0.35 m | 14"

153 mm | 6.02"

114 mm | 4.5"

2.3 kg | 5.1 lbs

53.72°

Master Prime
27 mm T1.3

T1.3 to T22

0.35 m | 14"

153 mm | 6.02"

114 mm | 4.5"

2.2 kg | 4.8 lbs

49.06°

Master Prime
32 mm T1.3

T1.3 to T22

0.35 m | 14"

153 mm | 6.02"

114 mm | 4.5"

2.3 kg | 5.1 lbs

43.51°

Master Prime
35 mm T1.3

T1.3 to T22

0.35 m | 14"

153 mm | 6.02"

114 mm | 4.5"

2.2 kg | 4.8 lbs

39.33°

Master Prime
40 mm T1.3

T1.3 to T22

0.40 m | 16"

153 mm | 6.02"

114 mm | 4.5"

2.3 kg | 5.1 lbs

34.73°

Master Prime
50 mm T1.3

T1.3 to T22

0.50 m | 20"

153 mm | 6.02"

114 mm | 4.5"

2.7 kg | 5.9 lbs

28.26°

Master Prime
65 mm T1.3

T1.3 to T22

0.65 m | 2'3"

153 mm | 6.02"

114 mm | 4.5"

2.6 kg | 5.7 lbs

21.59°

Master Prime
75 mm T1.3

T1.3 to T22

0.80 m | 2'9"

153 mm | 6.02"

114 mm | 4.5"

2.8 kg | 6.2 lbs

18.82°

Master Prime
100 mm T1.3

T1.3 to T22

1.00 m | 3'6"

153 mm | 6.02"

114 mm | 4.5"

2.9 kg | 6.4 lbs

14.25°

Master Prime
135 mm T1.3

T1.3 to T22

0.95m | 3'3''

172 mm | 6.77"

114 mm | 4.5"

2.8 kg | 6.2 lbs

10.73°

Master Prime
150 mm T1.3

T1.3 to T22

1.50 m | 4'11"

210 mm | 8.27"

134 mm | 5.3"

4 kg | 8.8 lbs

9.65°

Remarks:
1) Close focus distance is measured from the image plane
2) Front to PL mount flange
3) Horizontal angle of view for an ANSI Super 35 Silent camera aperture (aspect ratio 1:1.33, dimensions 24.9 mm x 18.7 mm / 0.98“ x 0.74“)
