Close-up of a professional cinema camera rig equipped with a ZEISS lens displaying focus and focal length information.

ARRI | ZEISS Master Anamorphic Lenses

Revolutionary new technology.

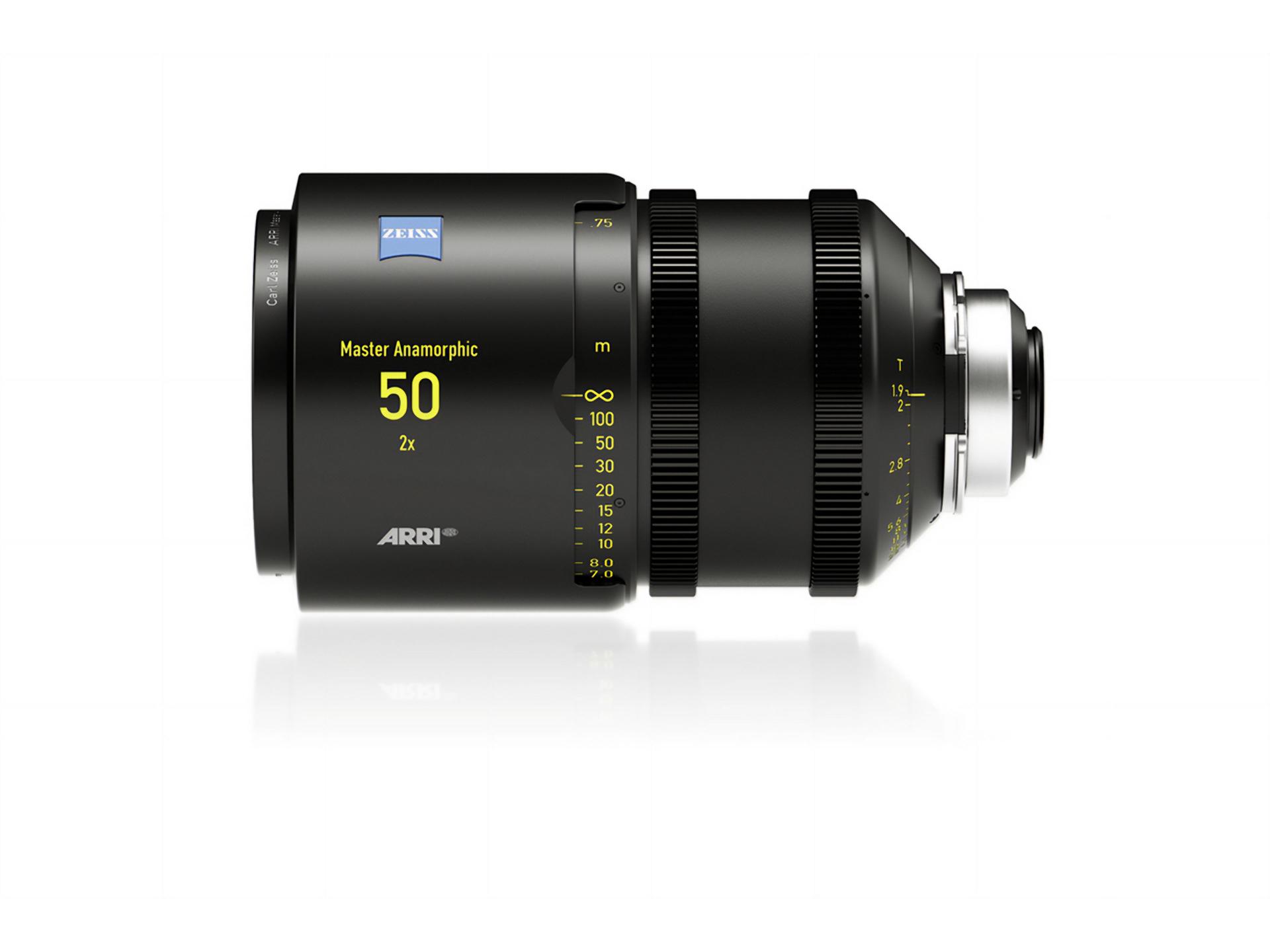

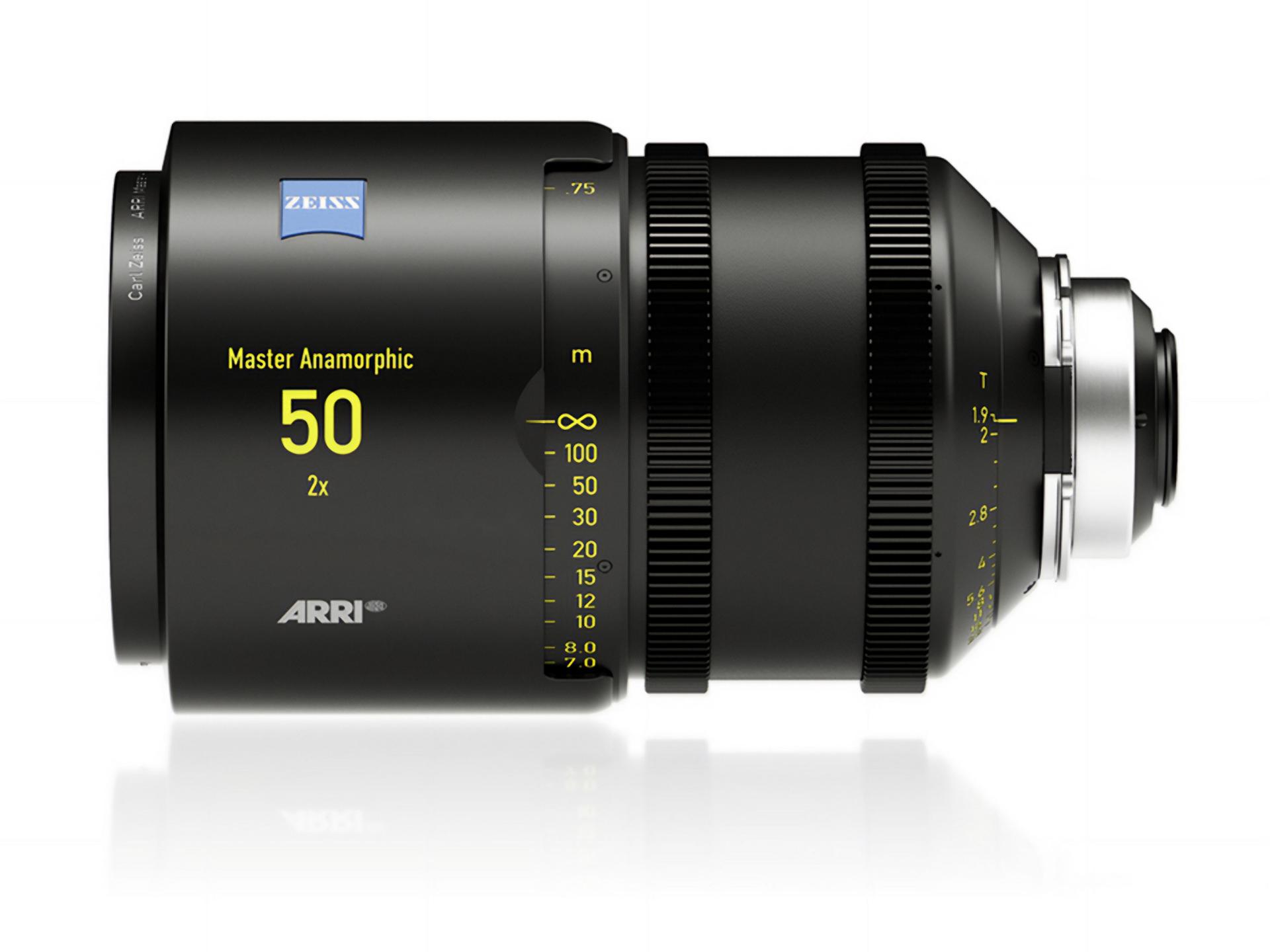

  • Professional-grade ZEISS Master Anamorphic 50mm T1.9 lens with ARRI branding, featuring yellow focus and aperture markings on a black cylindrical body.
    Professional-grade ZEISS Master Anamorphic 50mm T1.9 lens with ARRI branding, featuring yellow focus and aperture markings on a black cylindrical body.
  • Close-up view of a ZEISS camera lens showing detailed aperture markings and electronic contact points.
    Close-up view of a ZEISS camera lens showing detailed aperture markings and electronic contact points.

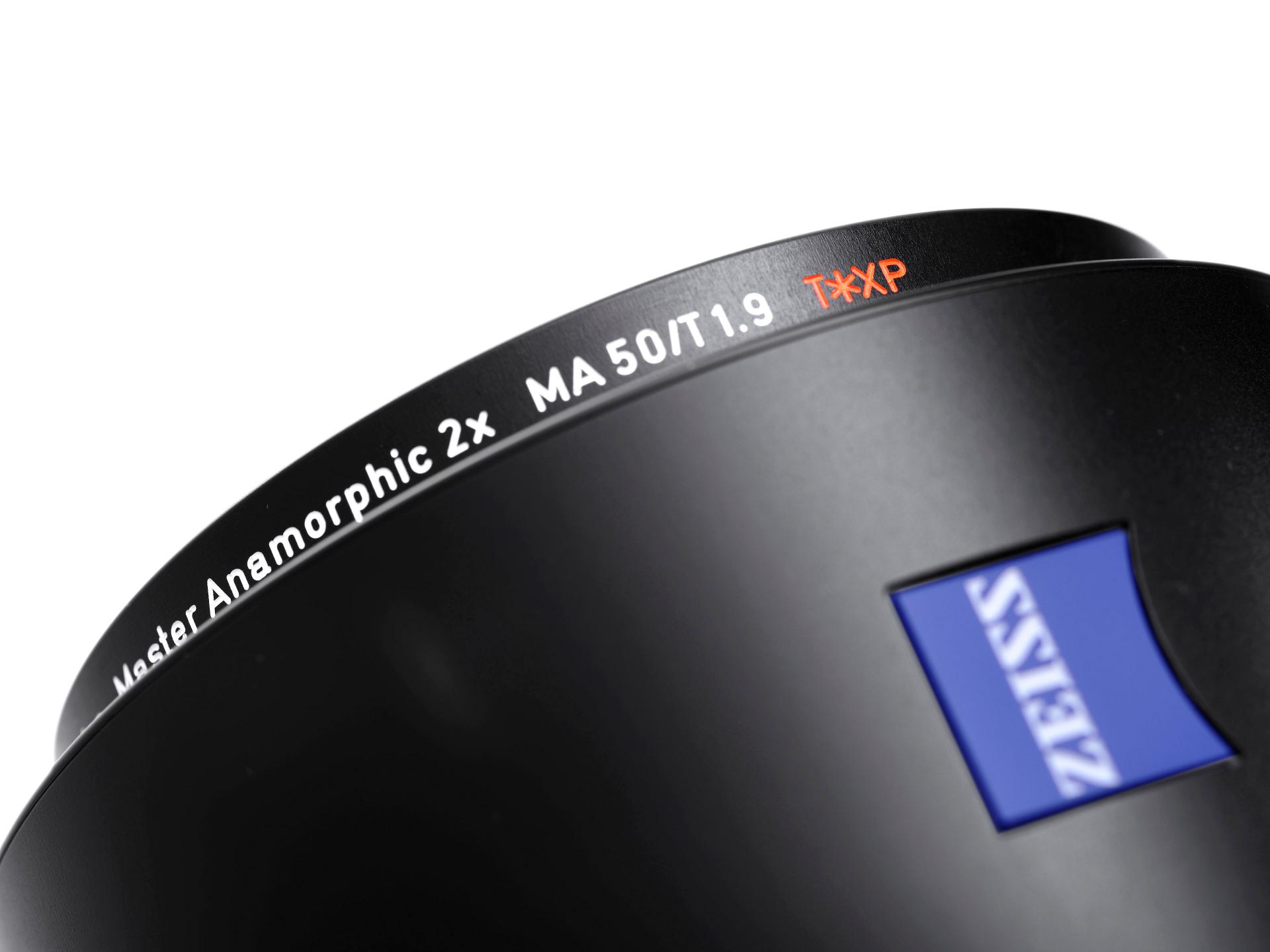

  • Close-up of a ZEISS Master Anamorphic 2x MA 50/T1.9 lens showcasing the branding and technical specifications.
    Close-up of a ZEISS Master Anamorphic 2x MA 50/T1.9 lens showcasing the branding and technical specifications.

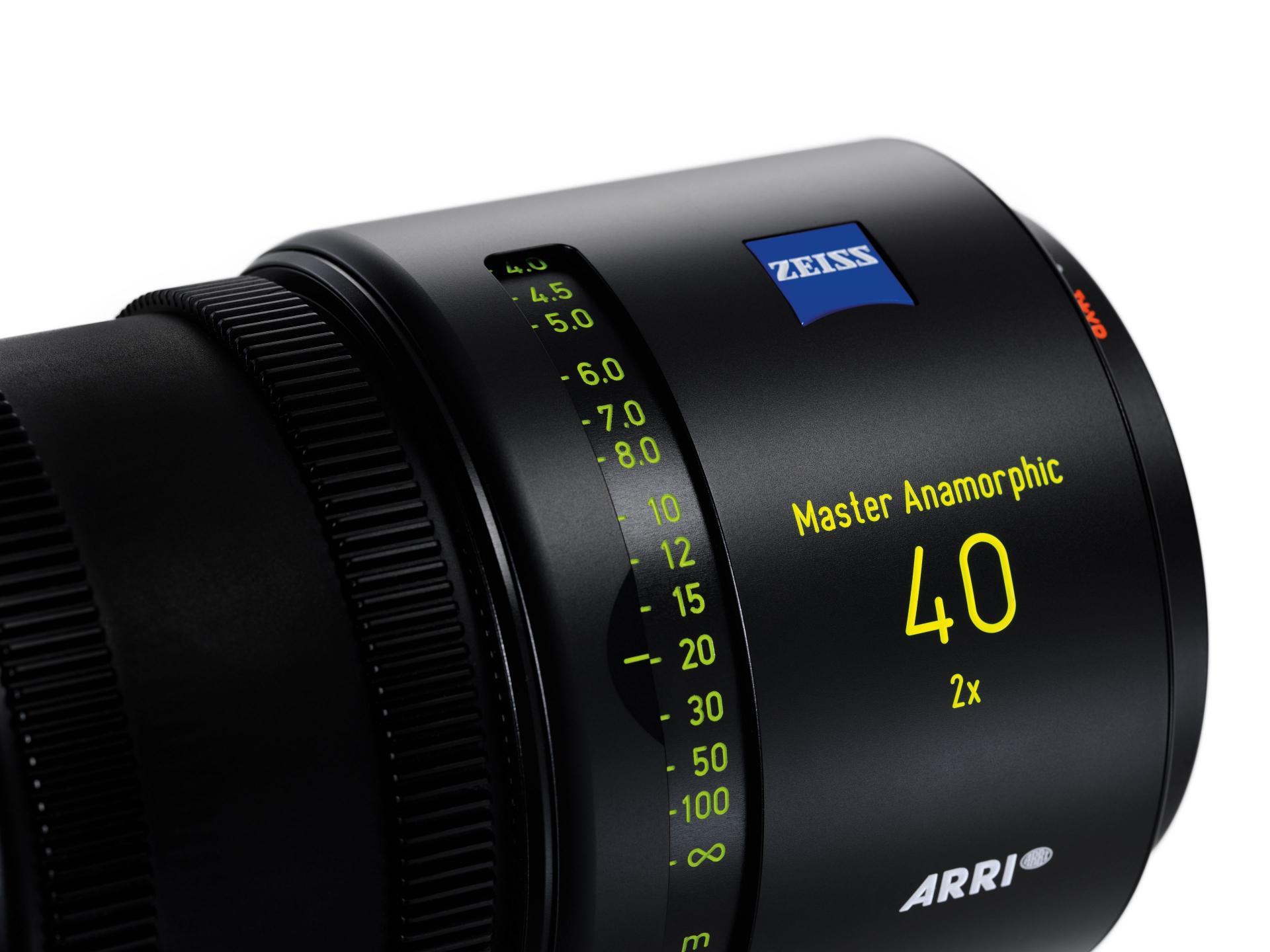

  • Close-up view of a ZEISS Master Anamorphic 40mm 2x cinema lens featuring detailed focus and aperture markings.
    Close-up view of a ZEISS Master Anamorphic 40mm 2x cinema lens featuring detailed focus and aperture markings.

The ARRI | ZEISS Master Anamorphic Lenses have been jointly developed by ARRI and ZEISS. The anamorphic lenses offer a unique optical performance, with optimized flare and bokeh as well as state-of-the-art lens barrels featuring improved dust and water protection.

Revolutionary new optical technology in anamorphic lenses:

  • Virtually no image breathing
  • No anamorphic mumps (fat face effect)
  • Optimized anamorphic bokeh:
    • Evenly illuminated oval out of focus highlights
    • New developed iris with 15 aperture blades
  • Pleasant out of focus areas with traditional anamorphic look and a unique image language
  • Anamorphic blue streak lines in a very unique new style and optimized flares and reflections for additional artistic look
  • Same reliable mechanics as the market knows from ARRI | ZEISS Master Prime lenses

The ARRI | ZEISS Master Anamorphic Lenses open up new creative opportunities, making shots possible that would have been considered impossible before. The important and distinguishing visual facet of anamorphic images, the appearance of out-of-focus background elements or bokeh, will be created by the newly developed iris with 15 aperture blades, creating perfectly oval and evenly illuminated out-of-focus highlights. This ensures a pleasing bokeh that filmmakers will enjoy manipulating creatively.

Technical Data

ARRI | ZEISS Master Anamorphic Lenses
Aperture
Close Focus1
Length2
Front Diameter
Weight
AOV3

Master Anamorphic
28 mm T1.9

T1.9 to T22

0.65 m | 2'3"

183 mm | 7.2"

114 mm | 4.5"

2.5 kg | 5.5 lbs

78.2°

Master Anamorphic
35 mm T1.9

T1.9 to T22

0.75 m | 2'6"

183 mm | 7.2"

95 mm | 3.7"

2.6 kg | 5.7 lbs

65.5°

Master Anamorphic
40 mm T1.9

T1.9 to T22

0.70 m | 2'4"

183 mm | 7.2"

95 mm | 3.7"

2.7 kg | 6.0 lbs

58.7°

Master Anamorphic
50 mm T1.9

T1.9 to T22

0.75 m | 2'6"

183 mm | 7.2"

95 mm | 3.7"

2.6 kg | 5.7 lbs

48.5°

Master Anamorphic
60 mm T1.9

T1.9 to T22

0.90 m | 3'

183 mm | 7.2"

95 mm | 3.7"

2.7 kg | 6.0 lbs

41.1°

Master Anamorphic
75 mm T1.9

T1.9 to T22

0.90 m | 3'

183 mm | 7.2"

95 mm | 3.7"

2.6 kg | 5.7 lbs

33.4°

Master Anamorphic
100 mm T1.9

T1.9 to T22

0.95 m | 3'1"

210 mm | 8.3"

95 mm | 3.7"

3.1 kg | 6.8 lbs

25.4°

Master Anamorphic
135 mm T1.9

T1.9 to T22

1.20 m | 3'11"

226 mm | 9.1"

95 mm | 3.7"

3.7 kg | 8.2 lbs

18.9°

Master Anamorphic
180 mm T2.8

T2.8 to T22

1.50 m | 5'

226 mm | 9.1"

95 mm | 3.7"

3.2 kg | 7.1 lbs

14.4°

Remarks:
1) Close focus distance is measured from the image plane
2) Front to PL mount flange
3) Horizontal angle of view for a Super 35 Cinemascope camera (dimensions 22.5mm x 18.7 mm / 0.89" x 0.74")
