The majority of pharmaceutical powders are required to be less than 500 microns in size for ease of manufacture and biopharmaceutical performance. Powder behavior of particles in this size range spans cohesive to aeratable powders. Powder performance is not only dependent on the powder bulk density and micromeritic properties of individual particles, but also crucially the structuring of particles within the powder bed. Micromeritic assessment is also routinely performed using image analysis or particle sizing techniques such as laser diffraction analysis. However, there is a clear need for techniques that provide non-destructive microstructural information of pharmaceutical powder structures.

ZEISS Microscopes help revolutionize Respiratory Drug Delivery (RDD)

ZEISS interviews INFORM 2020 project partners for development of non-destructive microstructural characterization technique

Microstructure (Q3) has emerged as an important topic of consideration in the regulatory science of topical drug products, opening alternative routes to demonstrate pharmaceutical equivalence between different batches of products or between brand and generic products. Yet the challenge in demonstrating equivalence of topical medicines is highlighted by Dry Powder Inhalers (DPI), where the pre-aerosolised formulation, DPI device and patients’ airflow all have an influence on the post-aerosolised formulation that is inhaled by the patient and reaches the lungs. Understanding how microstructure links to processing, properties and performance will enable the powder to be linked to efficacy, but a central part of this is the microstructural characterisation.

As part of the INFORM project, ZEISS and its partners have developed a non-destructive microstructural characterization technique using X-Ray microscopy for dry powder inhaler (DPI) formulations. XRM can provide unique microstructural insight at nano- and micro-scales, with a range of applications including complex inhalation blends. These techniques are showing promise to enable quantitative measurement of Q3 parameters of different blends and formulations in the asthma medication arena.

ZEISS interviews

  • ZEISS talks to Parmesh Gajjar about his recent paper

    Dr Parmesh Gajjar
    Research Associate
    Henry Moseley X-ray Imaging Facility
    The University of Manchester, UK

    Read about the interview in our >  Blog

    >  Read the Manchester Press Release about how the

    > "New understanding of asthma medicines could improve future treatment"

  • Interview with Dr Ioanna Danai Styliari

    Dr Ioanna Danai  Styliari
    Postdoctoral Research Fellow
    School of Life and Medical Sciences
    University of Hertfordshire, UK

  • Talking with Dr. Xizhong Chen

    Dr. Xizhong Chen
    Research Associate
    University of Cambridge, UK


SS Products for Microstructural Analysis 3D X-ray Microscopy for Particle Analysis

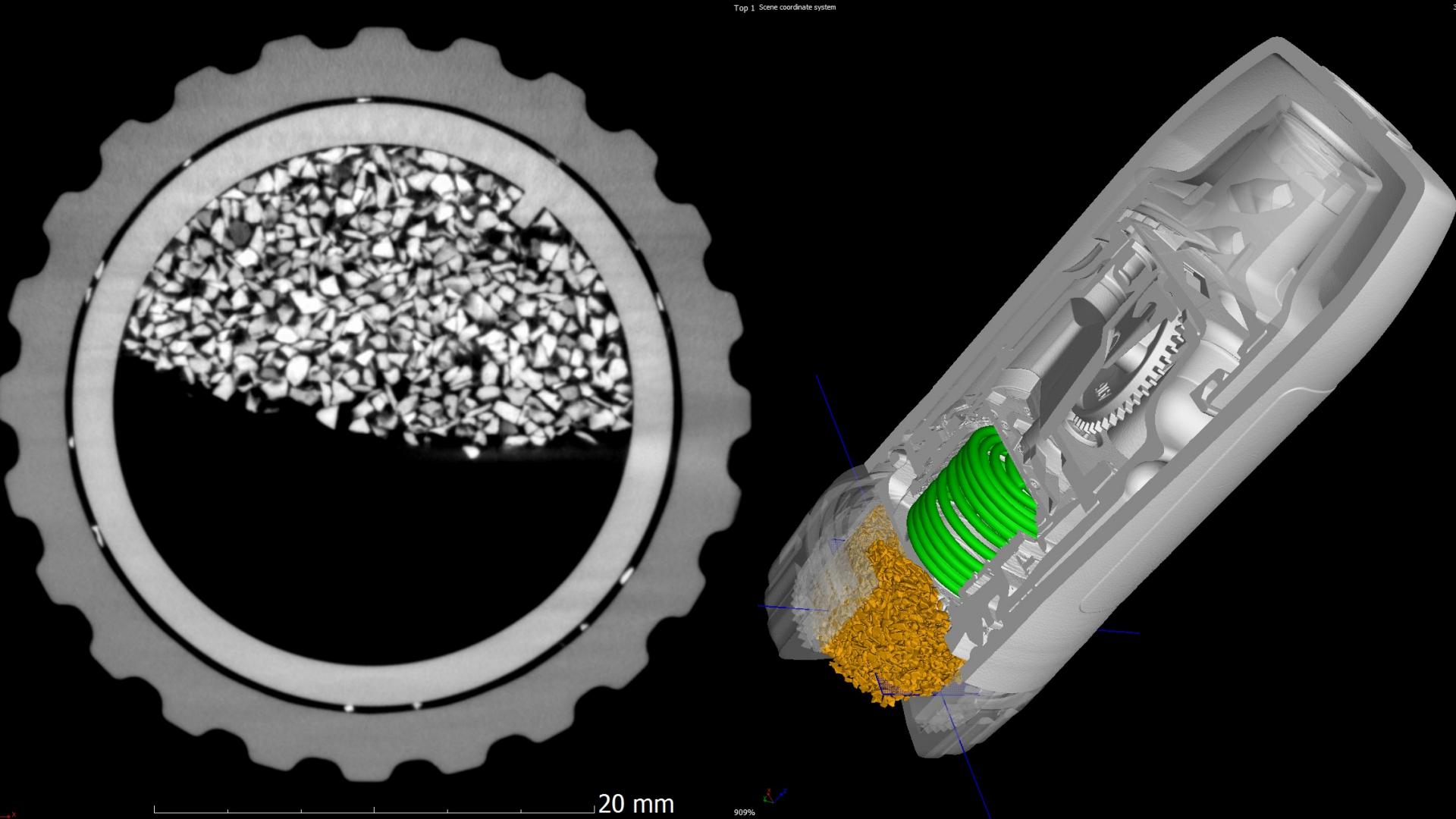

3D X-ray microscopy reconstructed data shows the blend of lactose carrier particles (yellow) with an active pharmaceutical ingredient (red). The API in this case is Terbutaline Sulphate. The drug blend is commonly utilized in dry powder inhalers for treating asthma and other respiratory diseases. Using phase contrast microscopy and ZEISS proprietary phase identification software, the two drug components can be easily differentiated and quantified in 3D.

Confocal Microscopy for microstructural analysis of powders and tablets

Tablets are one of the most frequent dosage forms of pharmaceutical drugs. Typically, the active pharmacological ingredient (API) and additional constituents (like diluents) are compressed or moulded into tablet form. Frequently, tablets will undergo surface coating to mask the taste of the ingredients, to facilitate swallowing of the tablet and to control release of the drug in the body. Surface roughness of tablets is a crucial design criterion in drug formulation: It has direct impact on the ease of swallowing tablets and thereby impacts the uptake and efficacy of the drug (tablets being rejected by patients, pre-mature release of the API by prolonged exposure to saliva in the patient’s mouth).

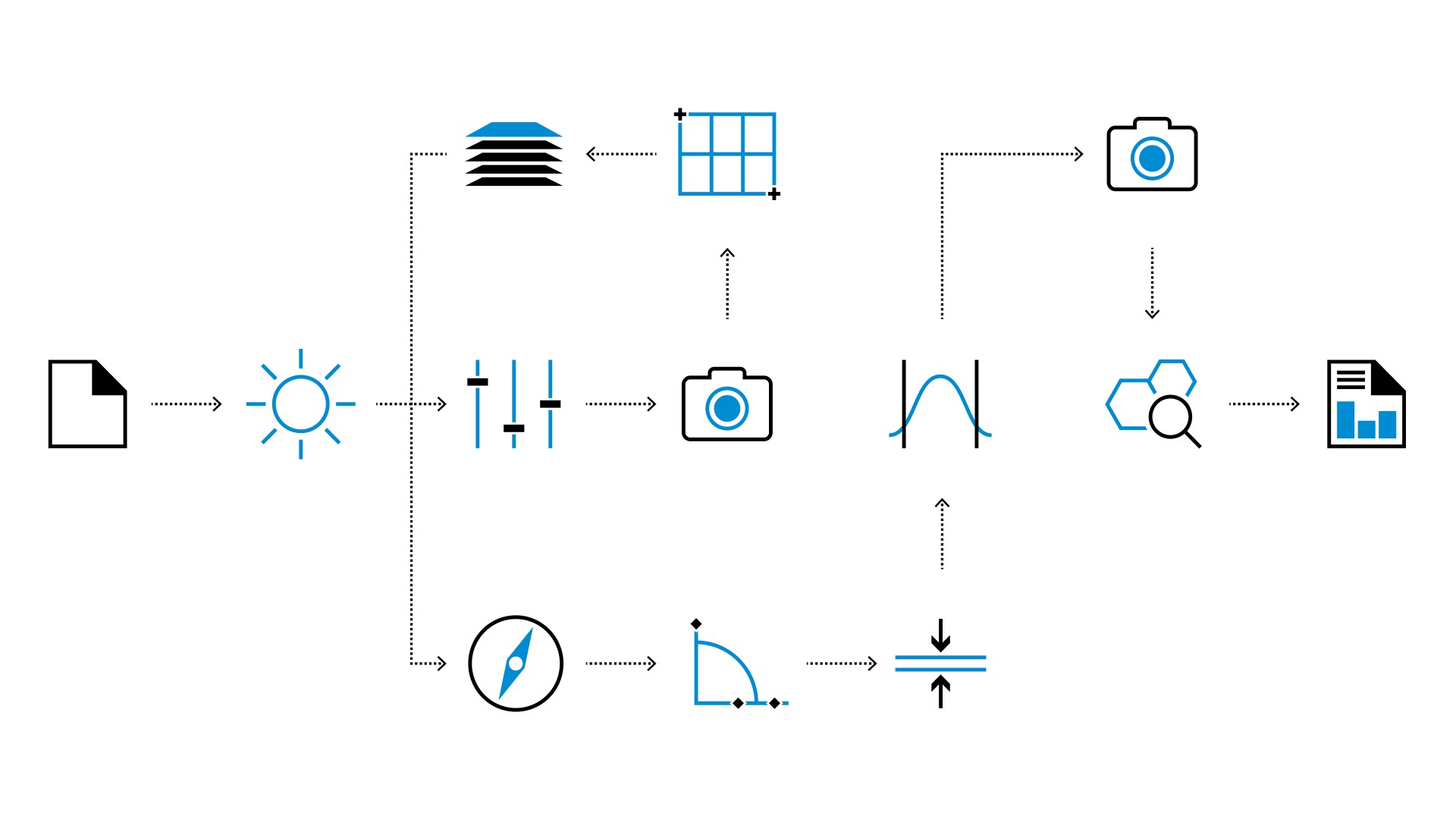

GxP - FDA 21 CFR Part 11 compliant workflow

To ensure FDA 21 CFR Part 11 compliant workflows and reliable and reproducible data irrespective of the operator, LSM 900 is controlled via our >  ZEN core software suite  with GxP data integrity module.

At ZEISS, ease-of-use and compliance are two sides of the same coin.
